ABB M3AA 180 MLA 2 IMB3/IM1001 Process Performance Aluminium Motor

Part number: M3AA 180 MLA 2 IMB3/IM1001. This is a 2-pole, 22 kW, IE3 premium efficiency aluminium motor designed for robust industrial applications. It features a foot-mounted configuration (IMB3/IM1001) and an IP55 enclosure for protection in demanding environments.

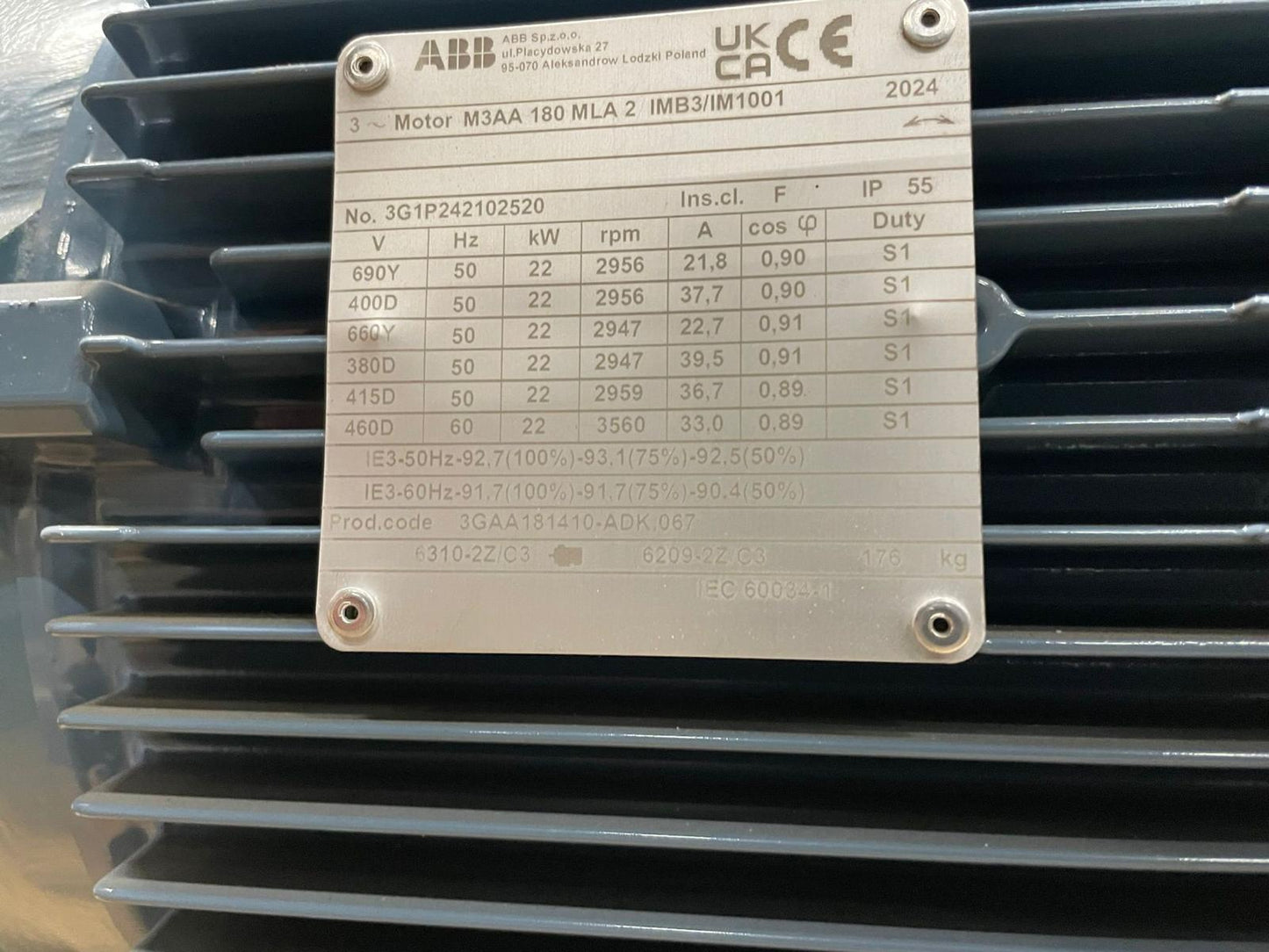

Full model name: M3AA 180 MLA 2 IMB3/IM1001

Application: This ABB M3AA series motor is suitable for general industrial use, meeting the demands of standard applications for OEMs and various process performance requirements.

Technical Specifications:
• Manufacturer: ABB
• Part Number: M3AA 180 MLA 2
• Product Code: 3GAA181410-ADK
• Motor Type: 3-Phase Squirrel Cage Induction Motor
• Power Output: 22 kW
• Number of Poles: 2
• Efficiency Class: IE3 Premium Efficiency
• Rated Speed (50 Hz): 2944-2957 r/min
• Rated Speed (60 Hz): 3546-3563 r/min
• Rated Voltage (50 Hz): 400 V / 690 V (Y/D connection), also 380 V, 415 V, 660 V
• Rated Voltage (60 Hz): 440 V, 460 V
• Mounting: IMB3 / IM1001 (Foot-mounted)
• Enclosure Protection: IP55
• Cooling System: IC411 (Self-ventilated)
• Insulation Class: ICLF
• Frame Material: Aluminium
• Frame Size: 180
• Bearings: DE: 6310-2Z/C3, NDE: 6209-2Z/C3
• Ambient Temperature: 40 °C
• Altitude: 1000 m
• Terminal Box: Aluminium alloy, top-mounted with knockout openings
• Weight: 176kg
• Year of manufacture: 2024

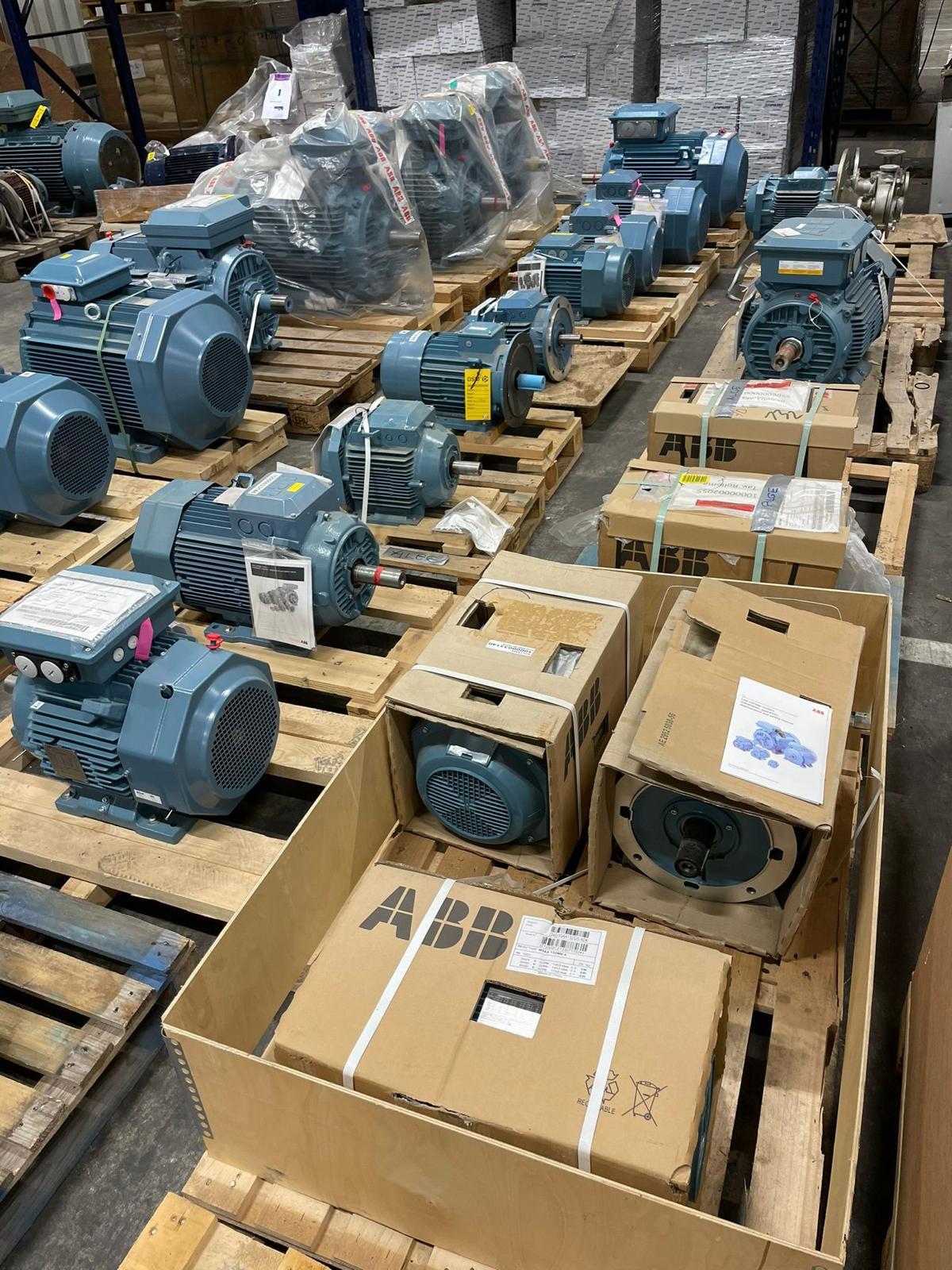

• Condition: New old inventory, surplus from a cancelled project. Available for immediate delivery at surplus pricing.
