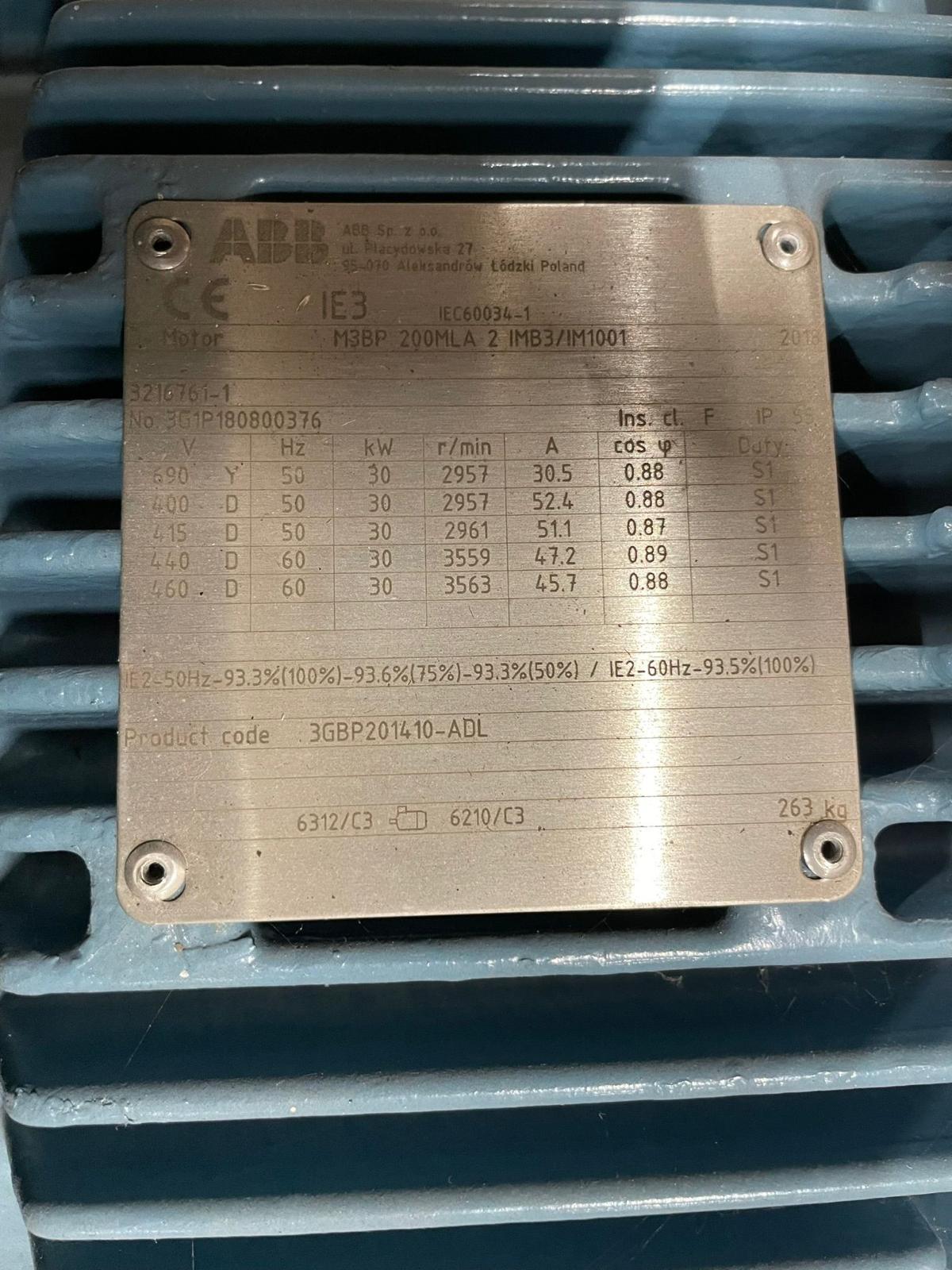

ABB M3BP 200MLA 2 IMB3/IM1001 IE3 Process Performance Cast Iron Induction Motor

Part number: M3BP 200MLA 2 IMB3/IM1001 is a genuine ABB IE3 Premium Efficiency Cast Iron Induction Motor. This motor is designed for robust performance in demanding industrial environments.

Full model name: M3BP 200MLA 2 IMB3/IM1001 IE3 Premium Efficiency Cast Iron Motor

Application: This ABB Process Performance motor is suitable for a wide range of industrial applications, including conveyors, pumps, fans, winches, crushers, mills, and flotation tank agitators. It is engineered for demanding operating environments.

Technical Specifications:
• Manufacturer: ABB
• Part Number: M3BP 200MLA 2
• Product Code: 3GBP201410-ADL
• Output Power: 30 kW
• Voltage: 400 V (Delta) / 690 V (Star)
• Frequency: 50 Hz
• Rotational Speed: 2958 r/min
• Number of Poles: 2
• Frame Size: 200
• Mounting Type: IMB3 / IM1001
• Efficiency Class: IE3 Premium Efficiency (IEC 60034-30-1:2014)
• Protection Class: IP55
• Frame Material: Cast Iron
• Insulation Class: ICLF
• Type of Duty: S1
• Weight: 263 kg
• Year of manufacture: 2018

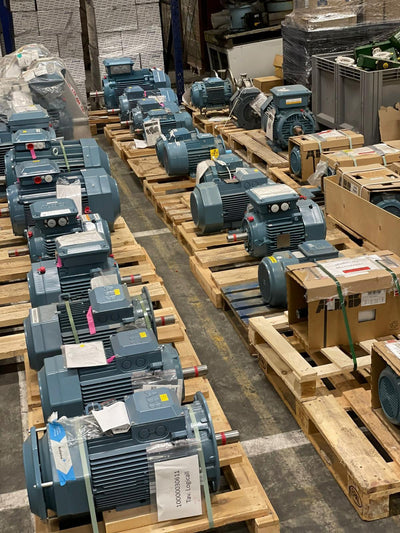

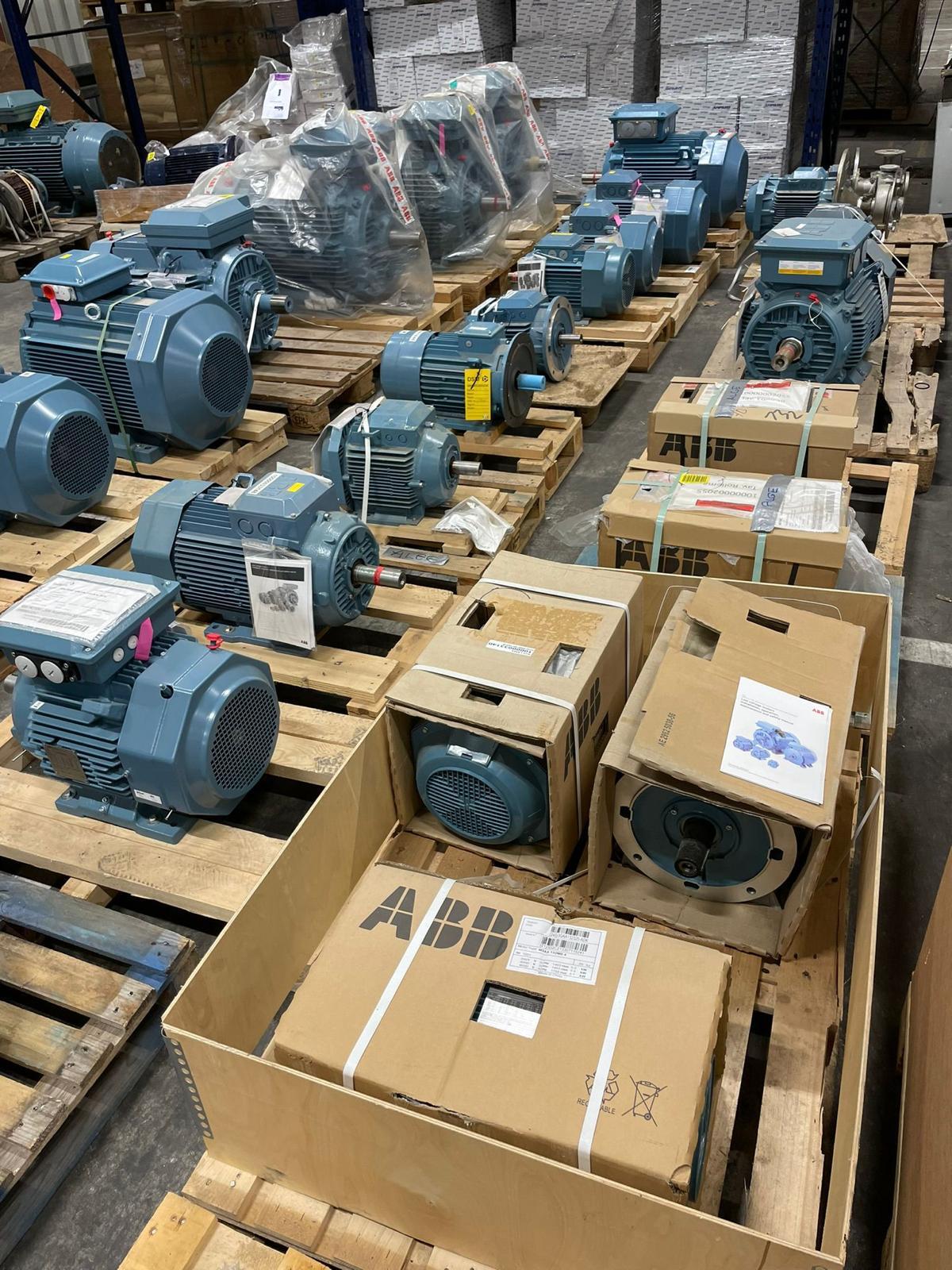

New old inventory, surplus from a cancelled project. Available for immediate delivery at surplus pricing.

Technical Documentation:
Technical Documentation via Google
