ABB M3BP 160MLA 2 IE3 Premium Efficiency Cast Iron Motor

Part number: M3BP 160MLA 2 is a genuine ABB IE3 Premium Efficiency Cast Iron Motor designed for robust industrial applications. This motor delivers reliable performance with a power output of 11 kW and a speed of 2943 RPM.

Full model name: M3BP 160MLA 2 IE3 Premium Efficiency Cast Iron Motor

Application: This ABB M3BP series motor is engineered for process performance in various industrial environments, including general manufacturing and demanding sectors like mining, where durability and efficiency are critical.

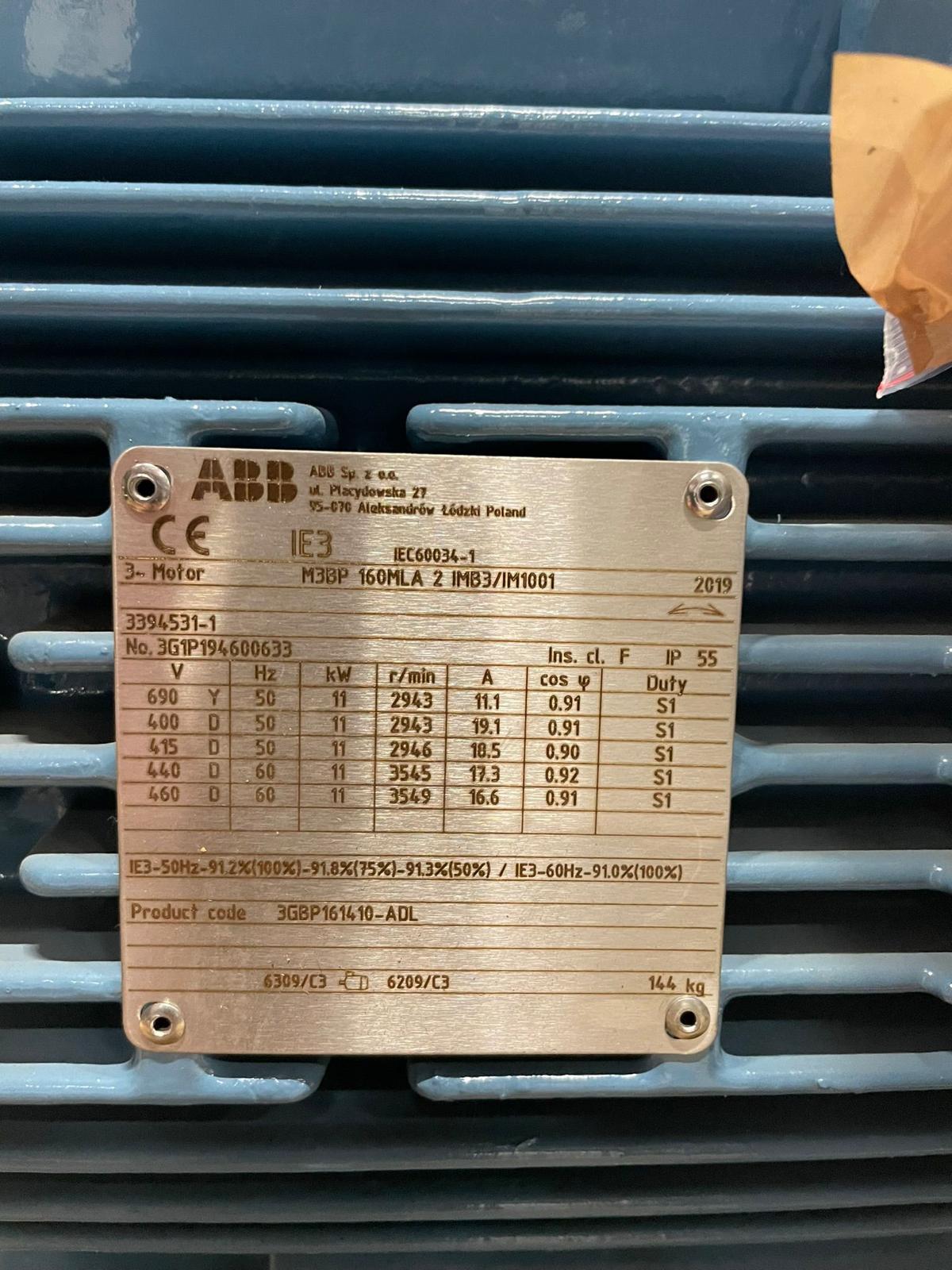

Technical Specifications:
• Manufacturer: ABB
• Part Number: M3BP 160MLA 2
• Product codes available: 3GBP161410-ADL, 3GBP161410-ADK
• Power: 11 kW
• Year of manufacture: 2019
• Weight: 144kg
• Rated Speed: 2943 r/min
• Voltage: 400D/690Y
• Frame Material: Cast Iron
• Frame Size: 160
• Poles: 2
• Efficiency Class: IE3 Premium Efficiency
• IP Rating: IP55 (Protection against dust and low-pressure water jets)
• Insulation Class: F
• Temperature Class: B
• Bearings: Drive End 6309/C3, Non-Drive End 6209/C3

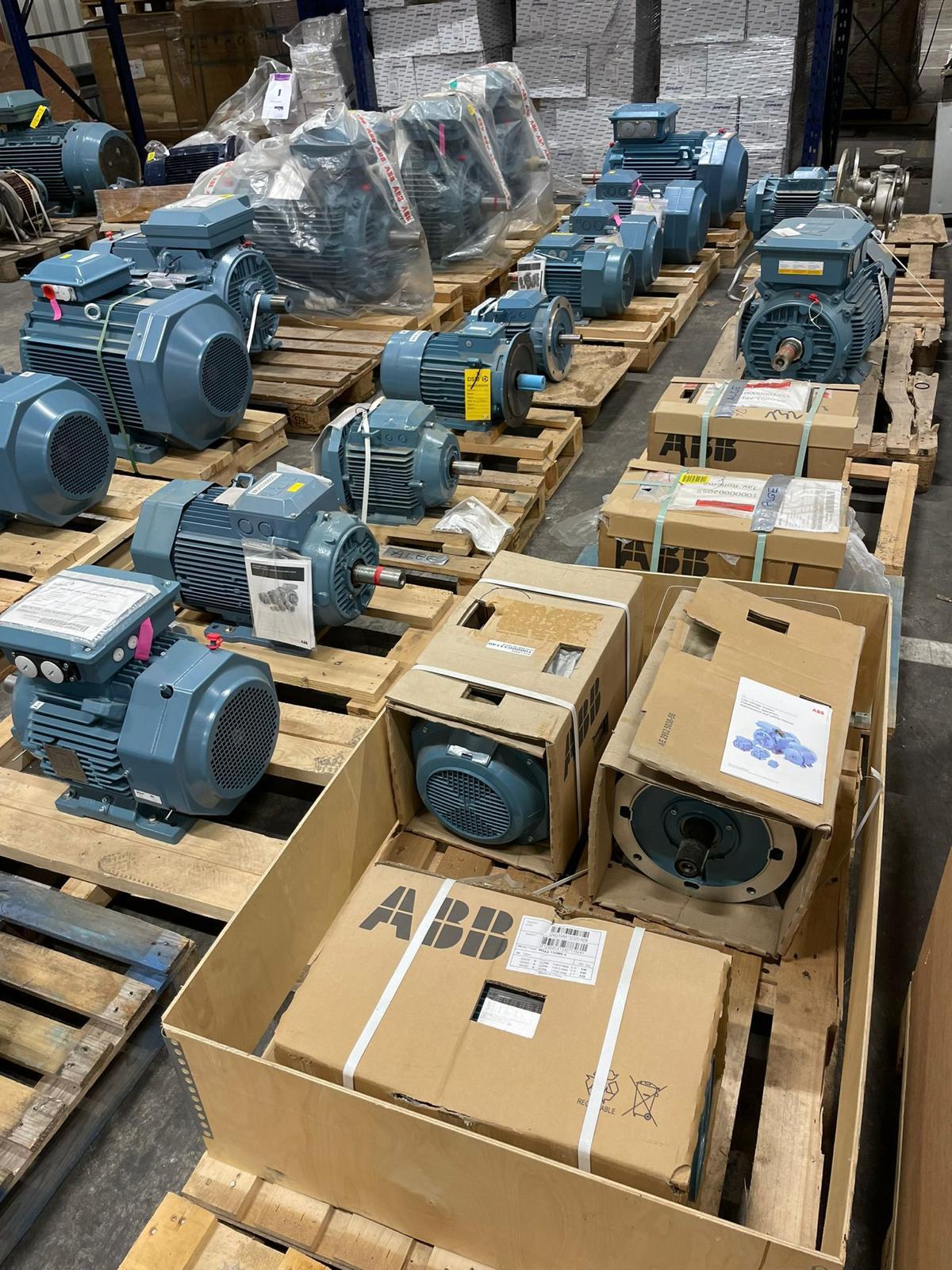

New old inventory, surplus from a cancelled project. Available for immediate delivery at surplus pricing.
