ABB M3BP 132 SMC 4 Process Performance Cast Iron Induction Motor

Part number: M3BP 132 SMC 4 is a genuine ABB 3-phase squirrel cage induction motor designed for robust performance in demanding industrial environments. This motor is part of the M3BP series, known for its durability and energy efficiency.

Full model name: M3BP 132SMC 4

Application: This ABB M3BP series motor is ideally suited for process industries and heavy-duty applications that require high reliability, availability, and efficiency in harsh conditions. It is a general-purpose motor designed for continuous operation.

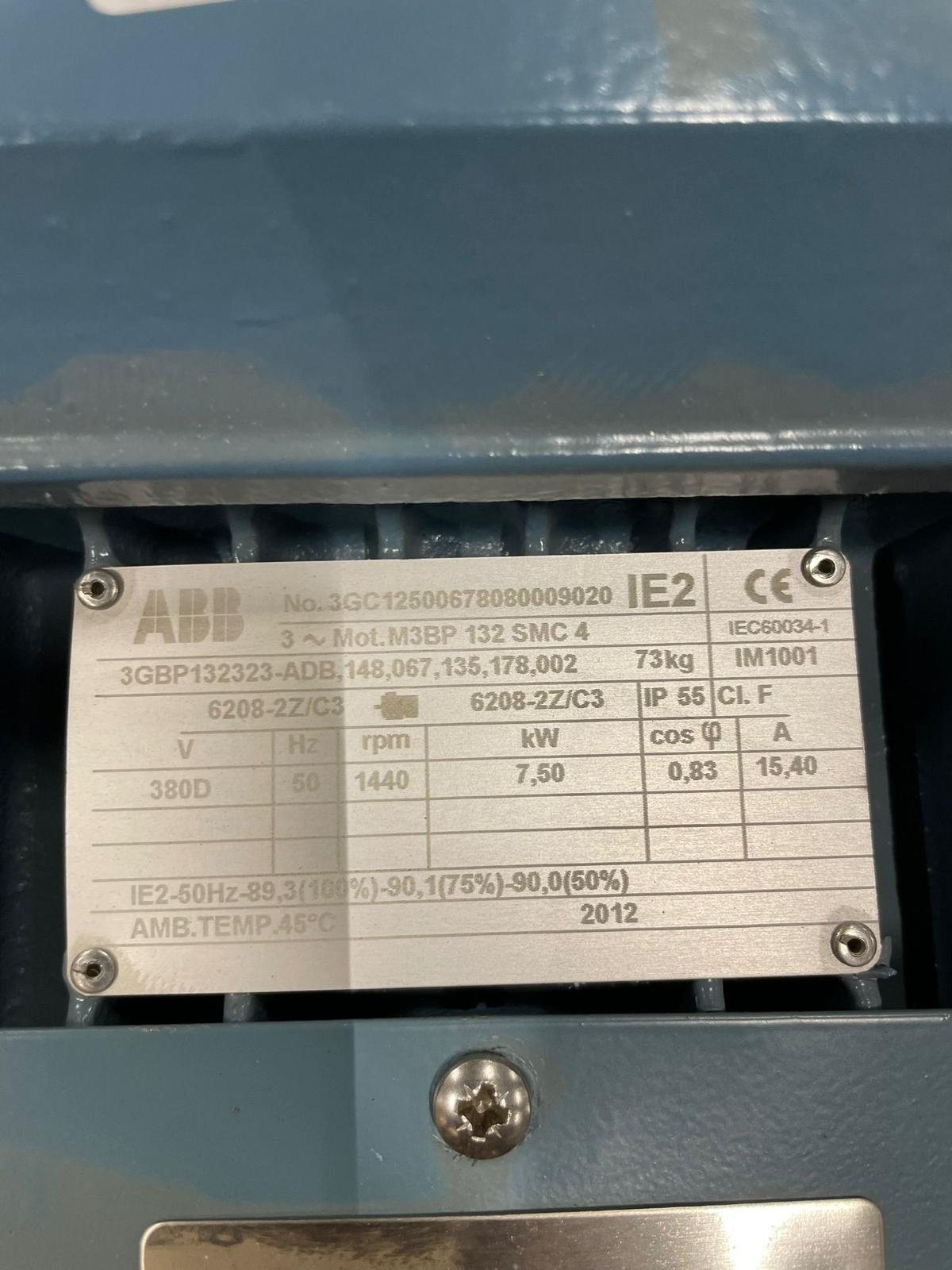

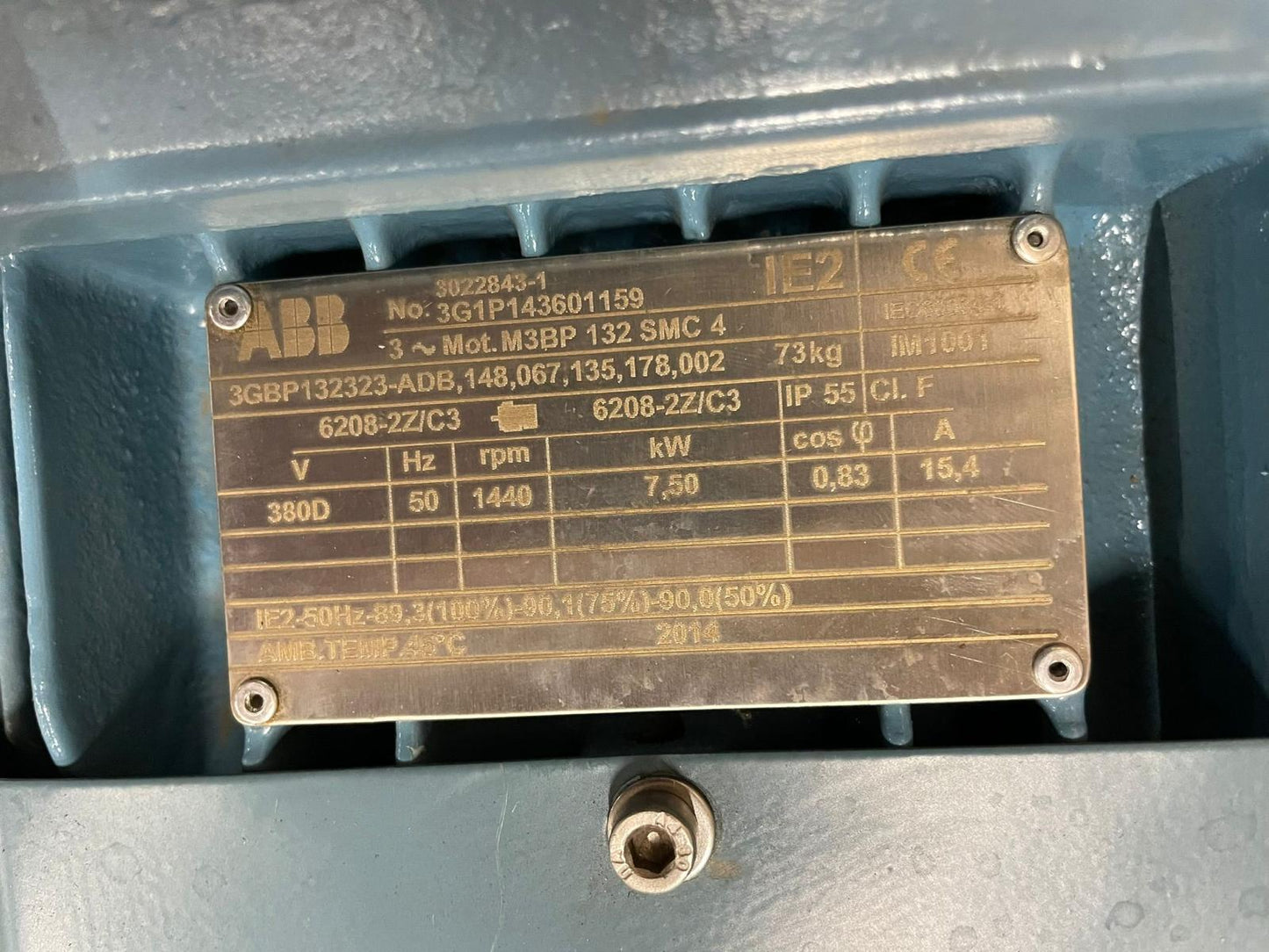

Technical Specifications:
• Manufacturer: ABB
• Part Number: M3BP 132 SMC 4
• Product Code: 3GBP132323-ADB
• Output Power: 7.5 kW
• Rated Speed: 1440 RPM (typical 1450 r/min at 50 Hz)
• Voltage: 380D
• Number of Poles: 4
• Frame Size: 132
• Frame Material: Cast Iron
• Efficiency Class: IE2 High Efficiency
• IP Rating: IP55 (protection against dust and water jets)
• Insulation Class: ICLF (or F/B)
• Mounting: IMB3 IM1001 (foot mounted)
• Ambient Temperature: 40 °C
• Altitude: 1000 m
• Cooling System: IC411 self-ventilated
• Bearings: 6208-2Z/C3 (Drive End and Non-Drive End)
• Net Weight: 73 kg
• Year of manufacture: 2012

New old inventory, surplus from a cancelled project. Available for immediate delivery at surplus pricing.

Technical Documentation:
Technical Documentation via Google
