ABB M3BP 200SMC 4 IMB3/IM1001 Process Performance Cast Iron Induction Motor

Part number: M3BP 200SMC 4 IMB3/IM1001 is a genuine ABB Process Performance Cast Iron Induction Motor, designed for robust industrial applications. This motor is part of ABB's M3BP series, known for its durability and reliability in demanding environments.

Full model name: ABB M3BP 200SMC 4 IMB3/IM1001 Process Performance Cast Iron Induction Motor

Application: ABB M3BP series motors are ideally suited for process industries and heavy-duty applications such as mining, cement, and paper, where high requirements for reliability, availability, and efficiency are critical.

Technical Specifications:

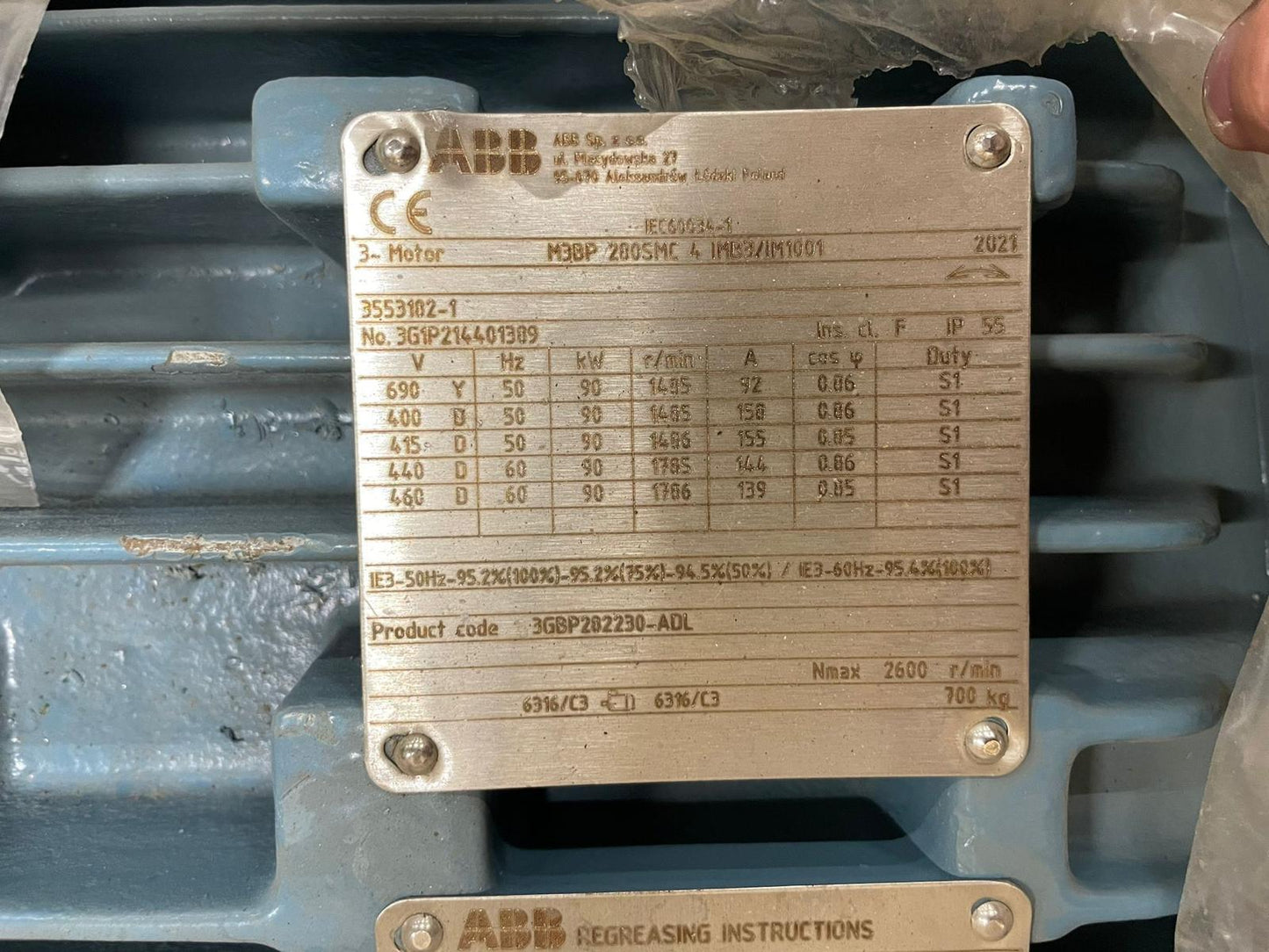

• Product Code: 3GBP202230-ADL
• Power: 90 kW (Note: This power rating is higher than typically observed for an M3BP 200 frame, 4-pole motor in standard ABB documentation. Typical 200 frame, 4-pole motors are in the 30-55 kW range.)
• Rated Speed: Approximately 1480 r/min (Derived from the '4' poles in the MPN. The 'RPM 2900' stated in the support information is characteristic of a 2-pole motor and is inconsistent with the 4-pole designation in the MPN.)
• Voltage: 400 V (50 Hz)
• Mounting: IMB3/IM1001 (Foot-mounted)
• Frame Size: 200
• Number of Poles: 4
• Enclosure: IP55 (Standard for M3BP Process Performance motors)
• Year of manufacture: 2021
• Weight: 700 kg

New old inventory, surplus from a cancelled project. Available for immediate delivery at surplus pricing.

Technical Documentation:
Technical Documentation via Google
