ABB M2BAX 132SME 4 IMB35/IM2001 General Performance Cast Iron Induction Motor

Part number: M2BAX 132SME 4 IMB35/IM2001 is a genuine ABB M2BAX series three-phase squirrel cage induction motor, designed for general industrial applications. This robust cast iron motor delivers reliable performance for various machinery.

Full model name: M2BAX 132SME 4 IMB35/IM2001

Application: Suitable for a wide range of industrial applications including pumps, fans, gearboxes, conveyors, compressors, and general machinery.

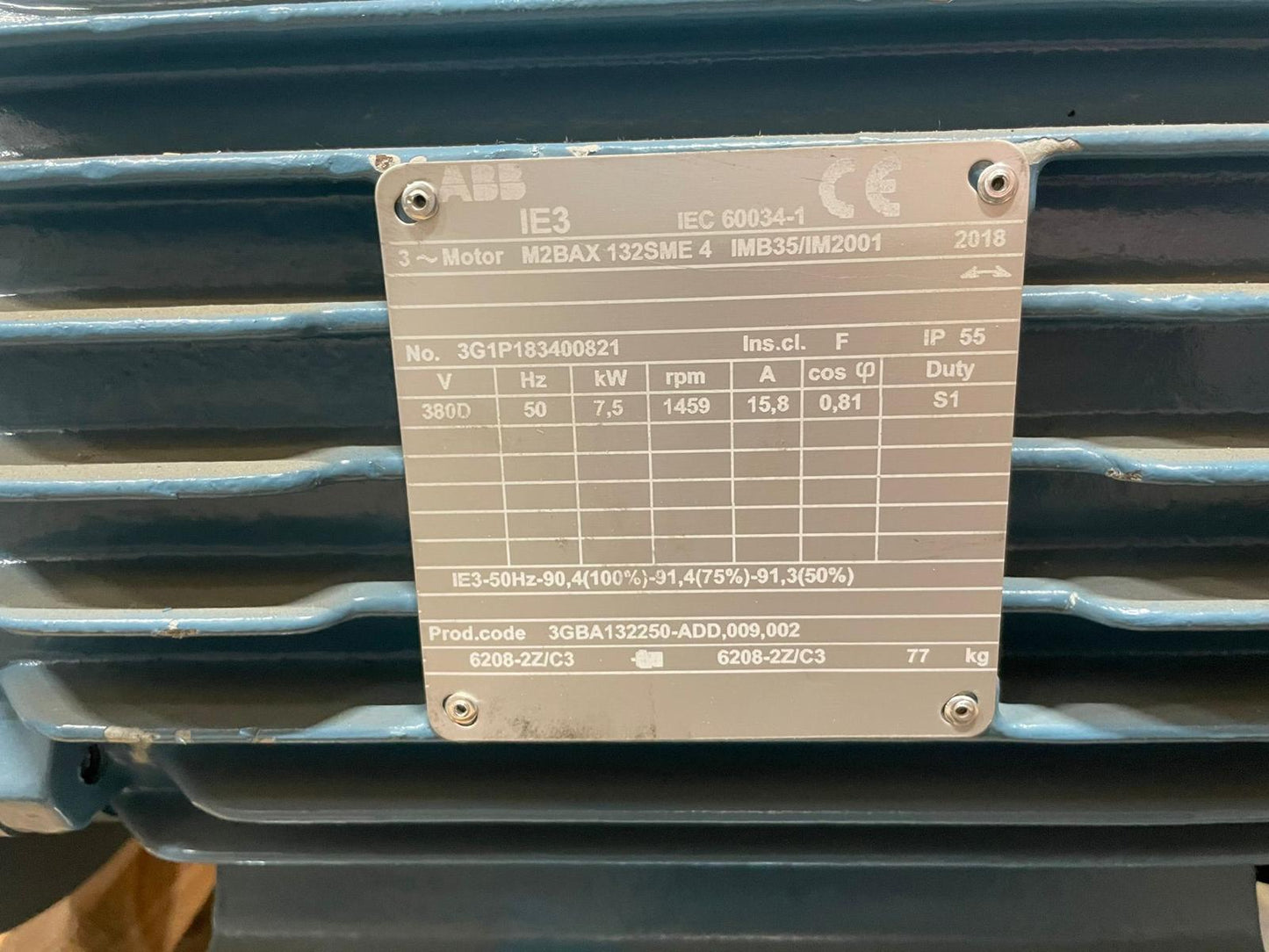

Technical Specifications:
• Manufacturer: ABB
• Part Number: M2BAX 132SME 4
• Product Code: 3GBA132250-ADD009002
• Component Type: Three-phase squirrel cage induction motor
• Frame Material: Cast Iron
• Power: 7.5 kW
• RPM: 1459 r/min (at 50 Hz)
• Voltage: 380V Delta (D)
• Number of Poles: 4
• Efficiency Class: IE3 Premium Efficiency
• Protection Class: IP55
• Cooling System: IC411 (Self-ventilated)
• Insulation Class: F (with Class B temperature rise)
• Mounting Type: IMB35 / IM2001 (Foot/Flange mounted)
• Ambient Temperature: 40 °C
• Altitude: 1000 m
• Product Net Weight: 77 kg
• Year of manufacture: 2018

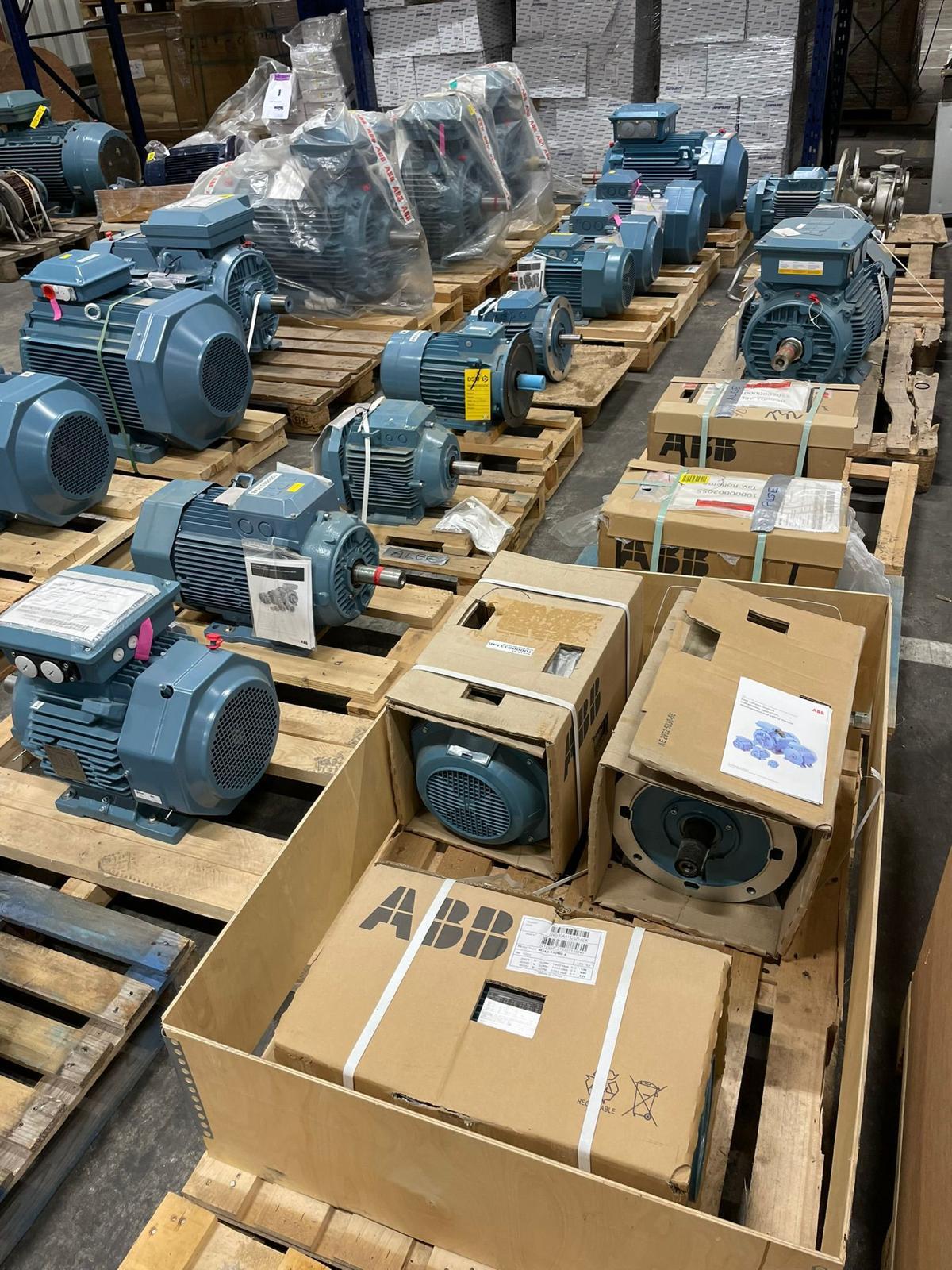

New old inventory, surplus from a cancelled project. Available for immediate delivery at surplus pricing.
