ABB M3BP 225SMA 4 IMB3/IM1001 3-Phase Squirrel Cage Induction Motor

Part number: M3BP 225SMA 4 IMB3/IM1001 is a robust 3-phase squirrel cage induction motor from ABB, designed for reliable industrial applications. This motor is part of ABB's Process Performance range, known for its efficiency and durability.

Full model name: M3BP 225SMA 4 IMB3/IM1001

Application: This ABB M3BP series motor is suitable for a wide range of industrial applications, including those in mining operations, general manufacturing, and process industries, where a reliable and efficient electric motor is required. Its robust cast iron construction and IP55 enclosure make it suitable for demanding environments.

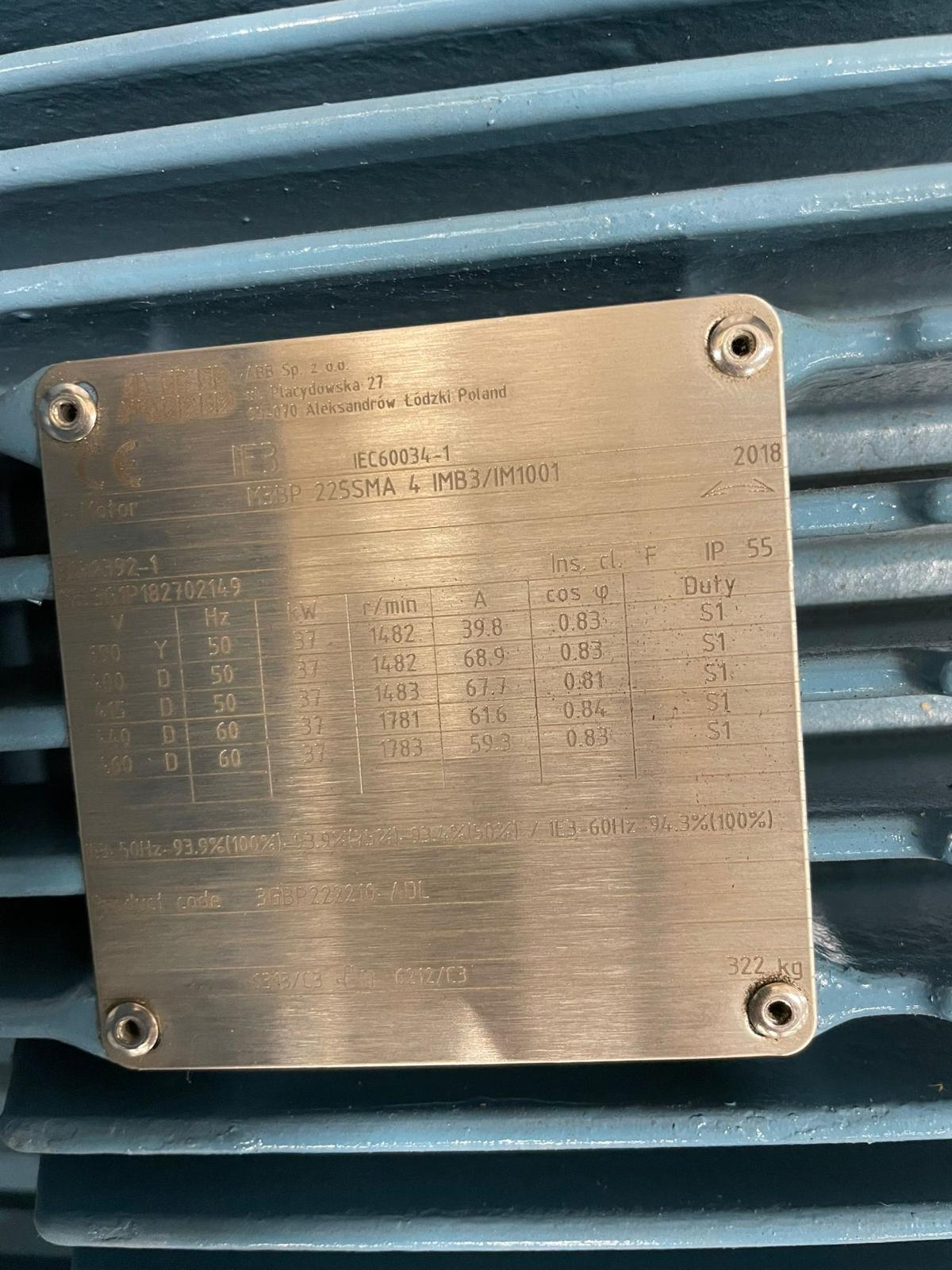

Technical Specifications:
• Manufacturer: ABB
• Part Number: M3BP 225SMA 4
• Product Code: 3GBP222210-ADL
• Component Type: 3-Phase Squirrel Cage Induction Motor
• Rated Power: 37 kW
• Rated Speed (50 Hz, 400V): 1479 r/min
• Rated Speed (60 Hz, 460V): 1786 r/min
• Rated Voltage (50 Hz): 400 V (Delta connection), 690 V (Star connection)
• Rated Voltage (60 Hz): 440 V, 460 V
• Efficiency Class: IE3 Premium Efficiency
• Frame Size: 225SMA
• Mounting Type: IMB3 / IM1001 (Foot Mounted)
• Enclosure Protection: IP55
• Cooling System: IC411 (Self-ventilated)
• Insulation Class / Temperature Class: F / B
• Bearings: Drive End (DE) 6313/C3, Non-Drive End (NDE) 6212/C3
• Approximate Weight: 322 kg (Note: variations between 310 kg and 398 kg depending on specific configuration and source)
• Year of manufacture: 2018

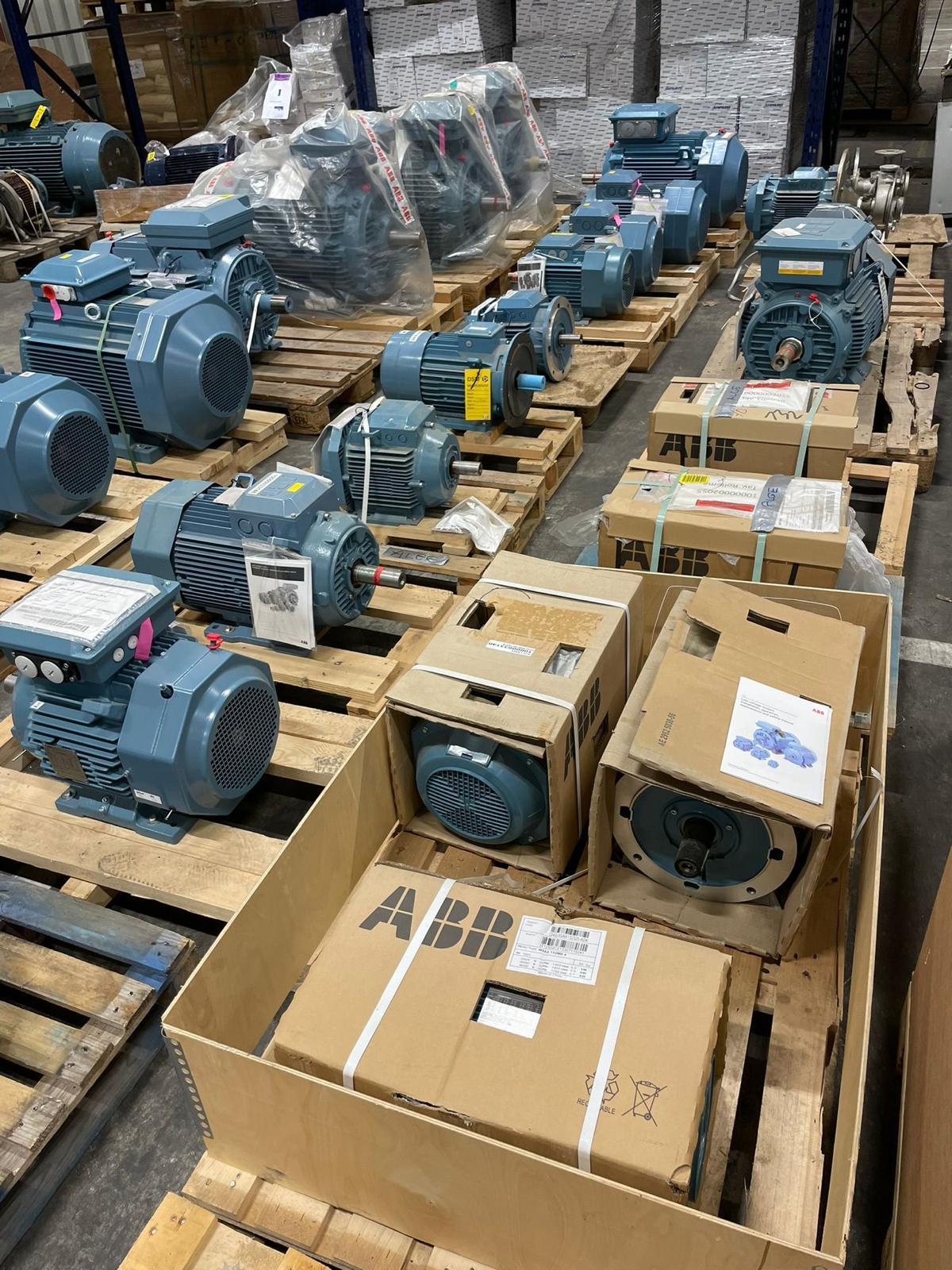

Unused item from a cancelled project. Available for immediate delivery at surplus pricing.
