ABB M3BP 250 SMA 4 IEC 250 S/M 65 Process Performance Cast Iron Induction Motor

Part number: M3BP 250 SMA 4 IEC 250 S/M 65 is a genuine ABB process performance cast iron induction motor, engineered for demanding industrial applications.

Full model name: ABB M3BP 250 SMA 4

Application: This ABB M3BP series motor is designed for process industries and heavy-duty applications such as mining, cement, and paper. It is suitable for driving equipment like conveyors, pumps, fans, winches, crushers, mills, and flotation tank agitators, where reliability and efficiency are critical in harsh conditions.

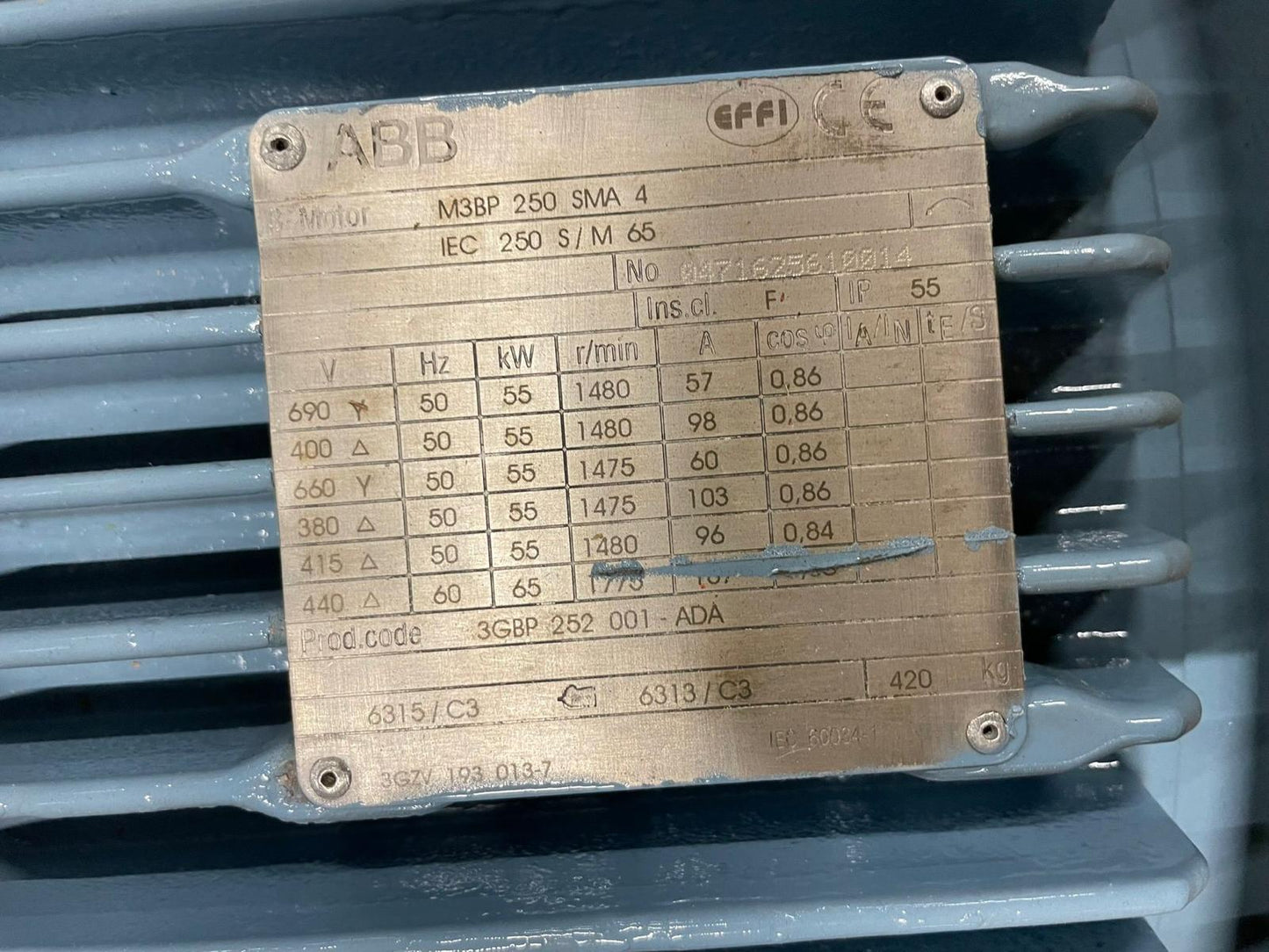

Technical Specifications:
• Rated Output Power: 55 kW
• Rated Speed: 1480 r/min at 50 Hz
• Rated Voltage: 400V Delta / 690V Star (400D/690Y)
• Frequency: 50 Hz
• Frame Size: 250
• Poles: 4
• Frame Material: Cast Iron (Components cast from EN-GJL-200 and EN-GJL-250 grade material)
• Enclosure Protection: IP55
• Insulation Class: F / Temperature Rise Class B
• Cooling System: IC411 self ventilated
• Bearings: Drive End (DE): 6315/C3, Non-Drive End (NDE): 6213/C3
• Product Code: 3GBP252001-ADA
• Year of manufacture: (verify with Tetromi)
• Weight: 420kg

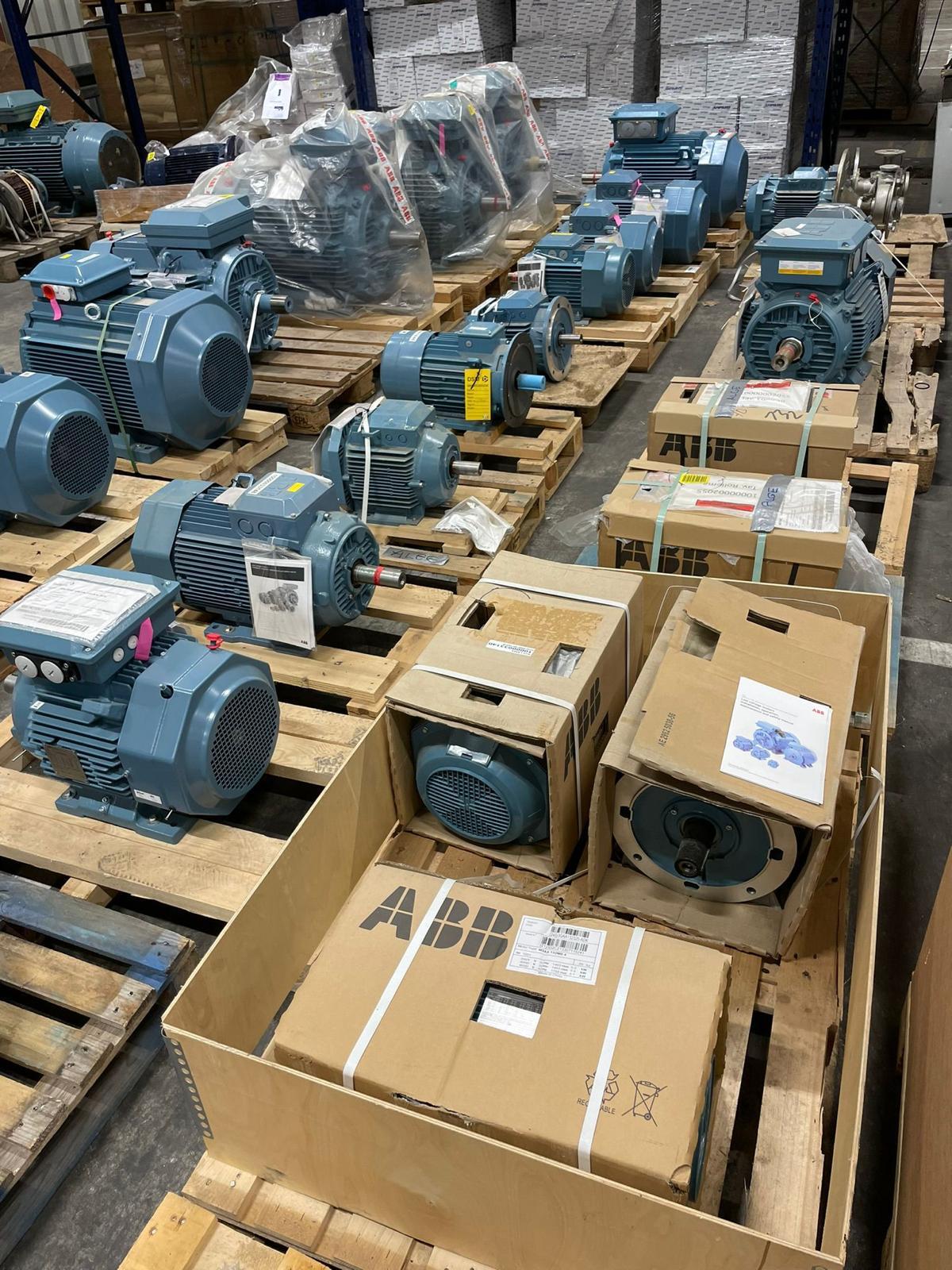

• Condition: New old inventory, surplus from a cancelled project.

Available for immediate delivery at surplus pricing.

Technical Documentation:
Technical Documentation via Google
