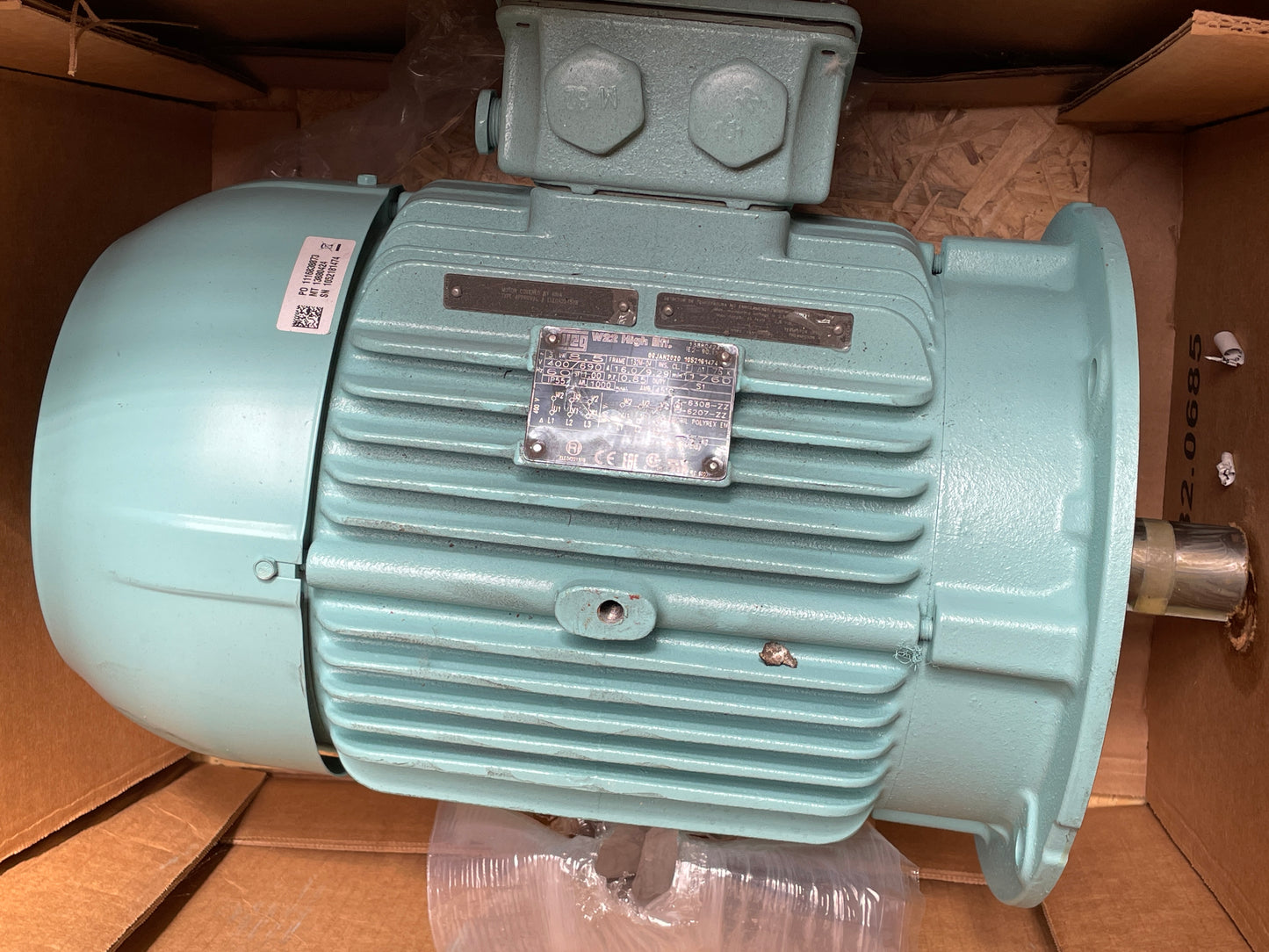

Weg W22 8.5kW Frame 132M-04 Three-Phase Motor

Part number: W22 8.5kW; Frame 132M-04 is a high-efficiency three-phase industrial electric motor designed for continuous duty applications. This cast iron frame motor belongs to the W22 series, engineered to meet IE2 efficiency standards with optimized thermal performance and reduced noise levels.

Full model name: Weg W22 High Efficiency MOD.TE1BF0X0#

Application: Industrial machinery, pumps, fans, compressors, and conveyor systems requiring reliable 60 Hz power delivery in severe duty environments.

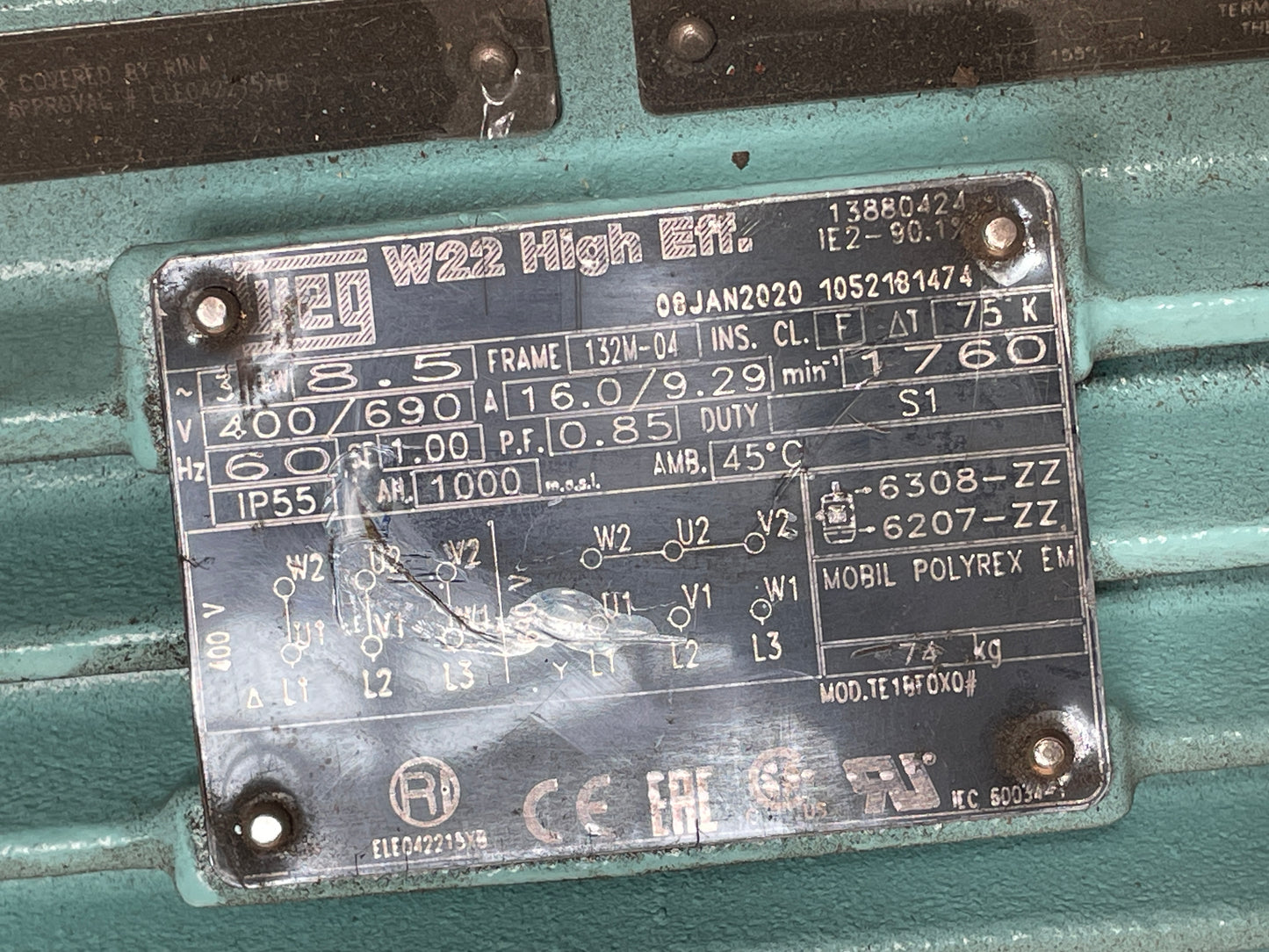

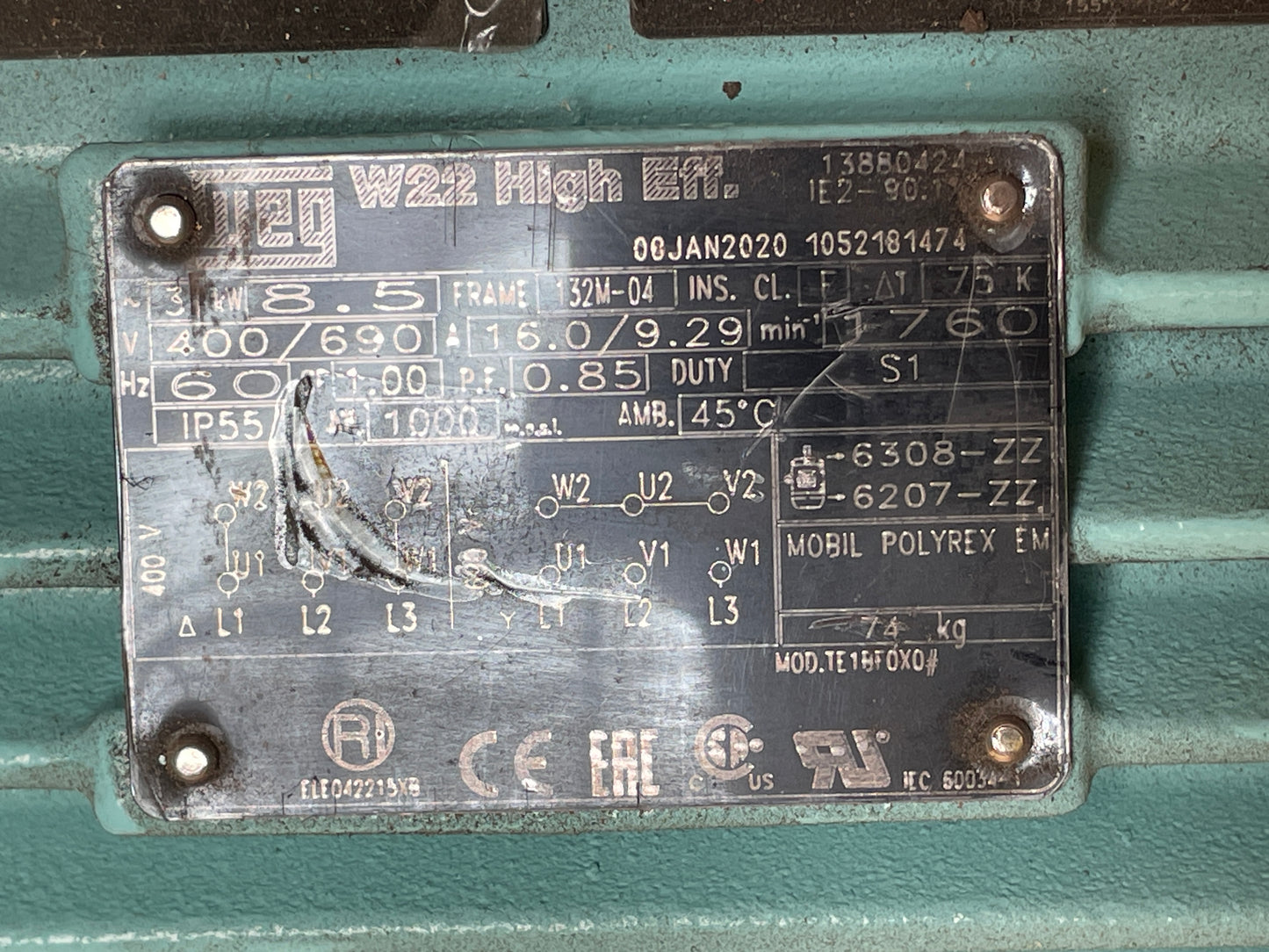

Technical Specifications:
• Rated Output: 8.5 kW
• Frame Size: 132M-04
• Efficiency Class: IE2 (90.1%)
• Voltage: 400/690 V
• Rated Current: 16.0/9.29 A
• Frequency: 60 Hz
• Rated Speed: 1760 min-1
• Power Factor: 0.85 PF
• Protection Rating: IP55
• Insulation Class: F (75K temperature rise)
• Duty Cycle: S1 (Continuous)
• Service Factor: 1.00
• Ambient Temperature: 45 C
• Altitude: 1000 m.o.s.l.
