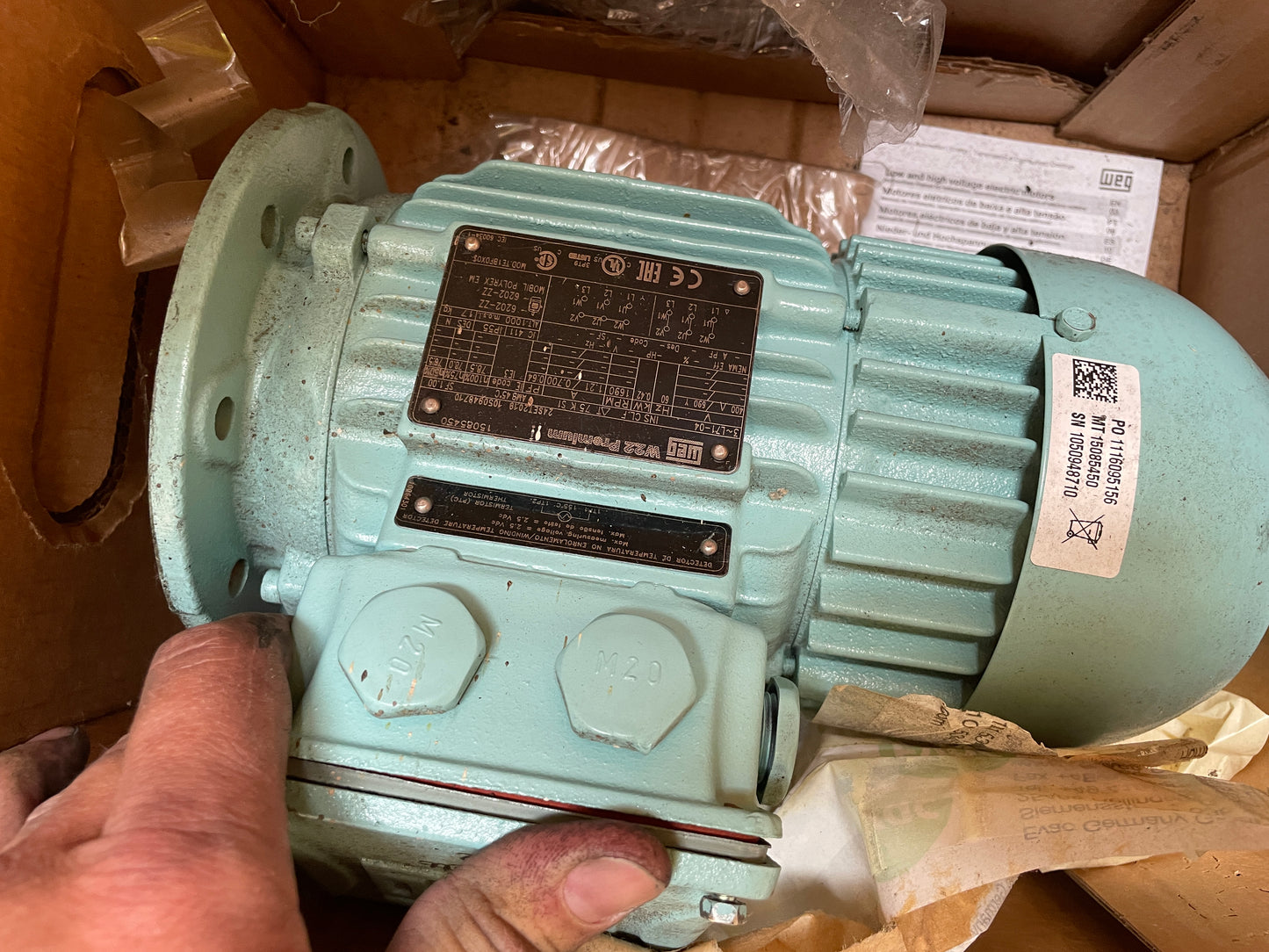

Weg 15085450 W22 Three-Phase Electric Motor

Part number: 15085450 This W22 series three-phase induction motor is a high-efficiency industrial drive designed for continuous operation in demanding environments. It features a cast iron frame and is optimized for energy savings and reduced thermal footprint in accordance with IE3 efficiency standards.

Full model name: Weg W22 3~L71-04

Application: General-purpose industrial machinery, pumps, fans, conveyors, and compressors requiring reliable three-phase power.

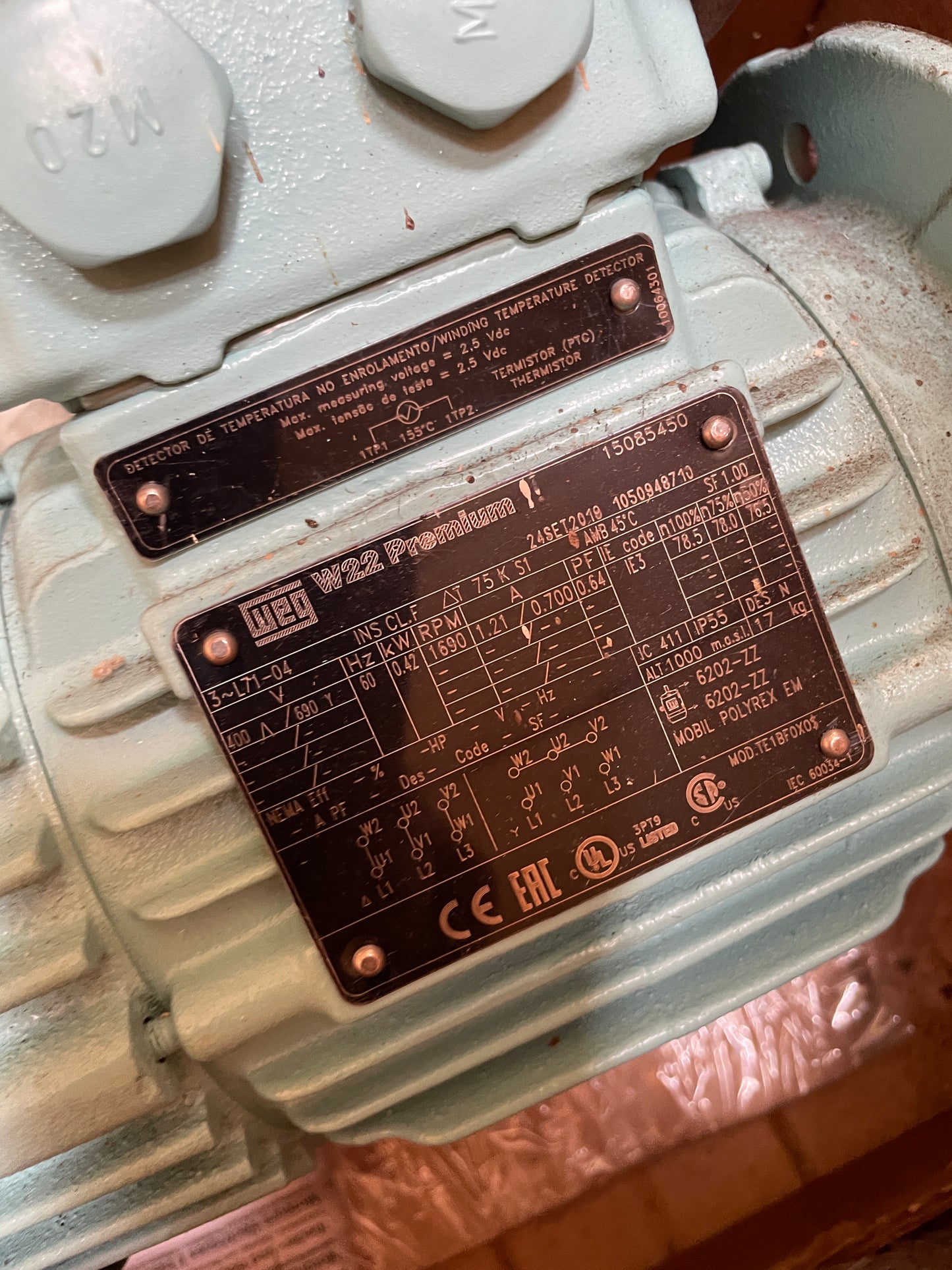

Technical Specifications:
• Rated Power: 0.42 kW
• Rated Speed: 1690 RPM
• Voltage: 400/690 V
• Frequency: 60 Hz
• Rated Current: 1.21/0.700 A
• Efficiency Class: IE3 (78.5% at 100% load)
• Protection Rating: IP55
• Cooling Method: IC411 (TEFC - Totally Enclosed Fan Cooled)
• Insulation Class: F (T 75K)
• Frame Size: L71-04
• Power Factor: 0.64 PF
• Ambient Temperature: 45°C
• Altitude: 1000 m.o.s.l.
• Weight: 17 kg
