Weg 2.6kW 132S-06 W22 Three-Phase Electric Motor

Part number: 2.6kW 132S-06. This Weg W22 series three-phase induction motor is designed for continuous industrial duty with premium efficiency and a robust cast iron frame.

Full model name: Weg W22 132S-06 2.6kW Three-Phase Motor

Application: Suitable for industrial drives including pumps, fans, compressors, and conveyors in demanding environments.

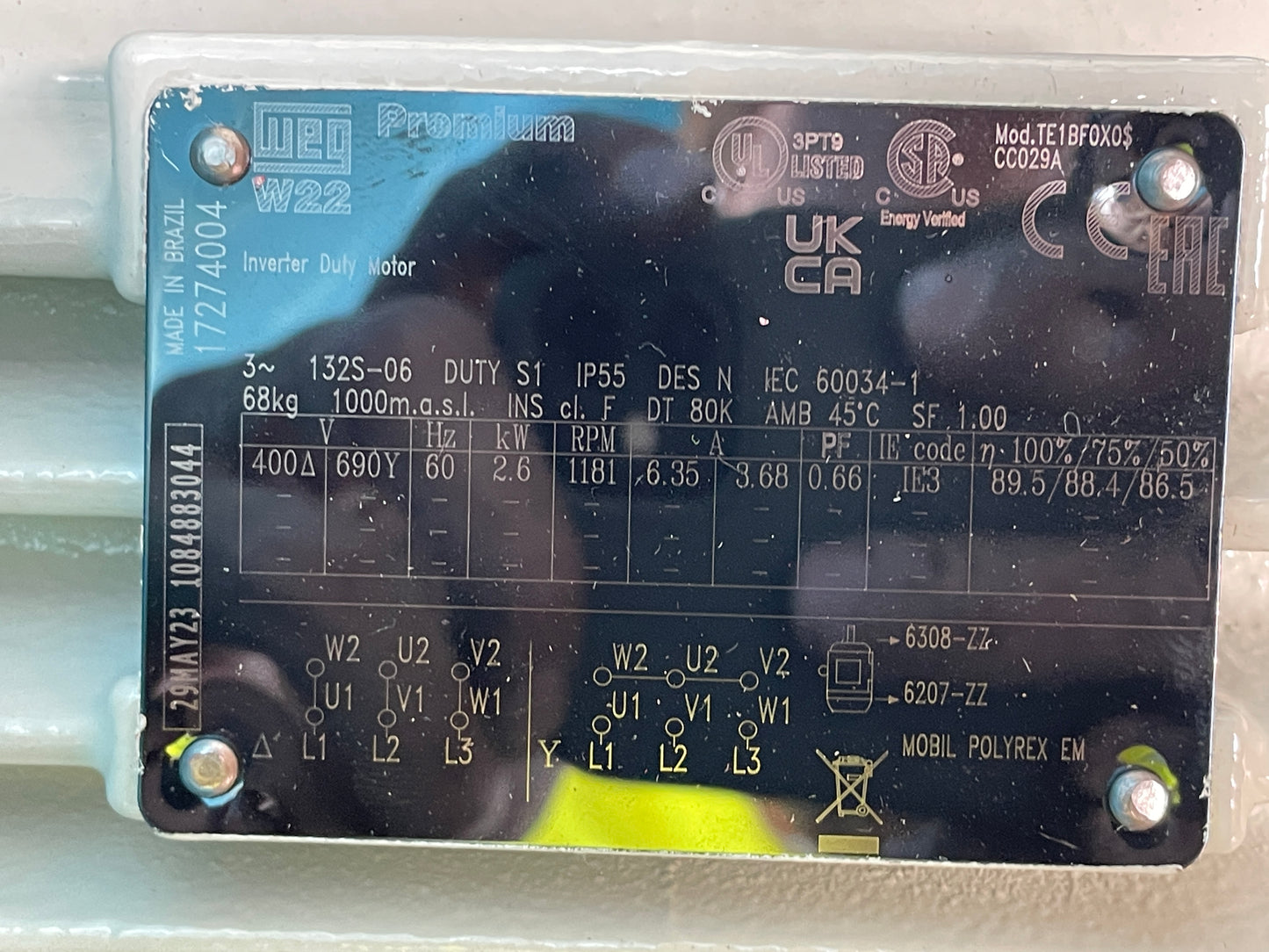

Technical Specifications:
• Rated Output: 2.6 kW
• Frame Size: 132S
• Number of Poles: 6
• Rated Speed: 1181 RPM
• Rated Voltage: 400/690 V
• Rated Current: 6.35 A / 3.68 A
• Efficiency Class: IE3 (Premium Efficiency)
• Efficiency (100% Load): 89.5%
• Power Factor: 0.66
• Degree of Protection: IP55
• Insulation Class: F (DT 80K)
• Duty Cycle: S1 (Continuous)
• Ambient Temperature: 45°C
• Altitude: 1000 m.a.s.l.
• Weight: 68 kg
• Standard: IEC 60034-1
