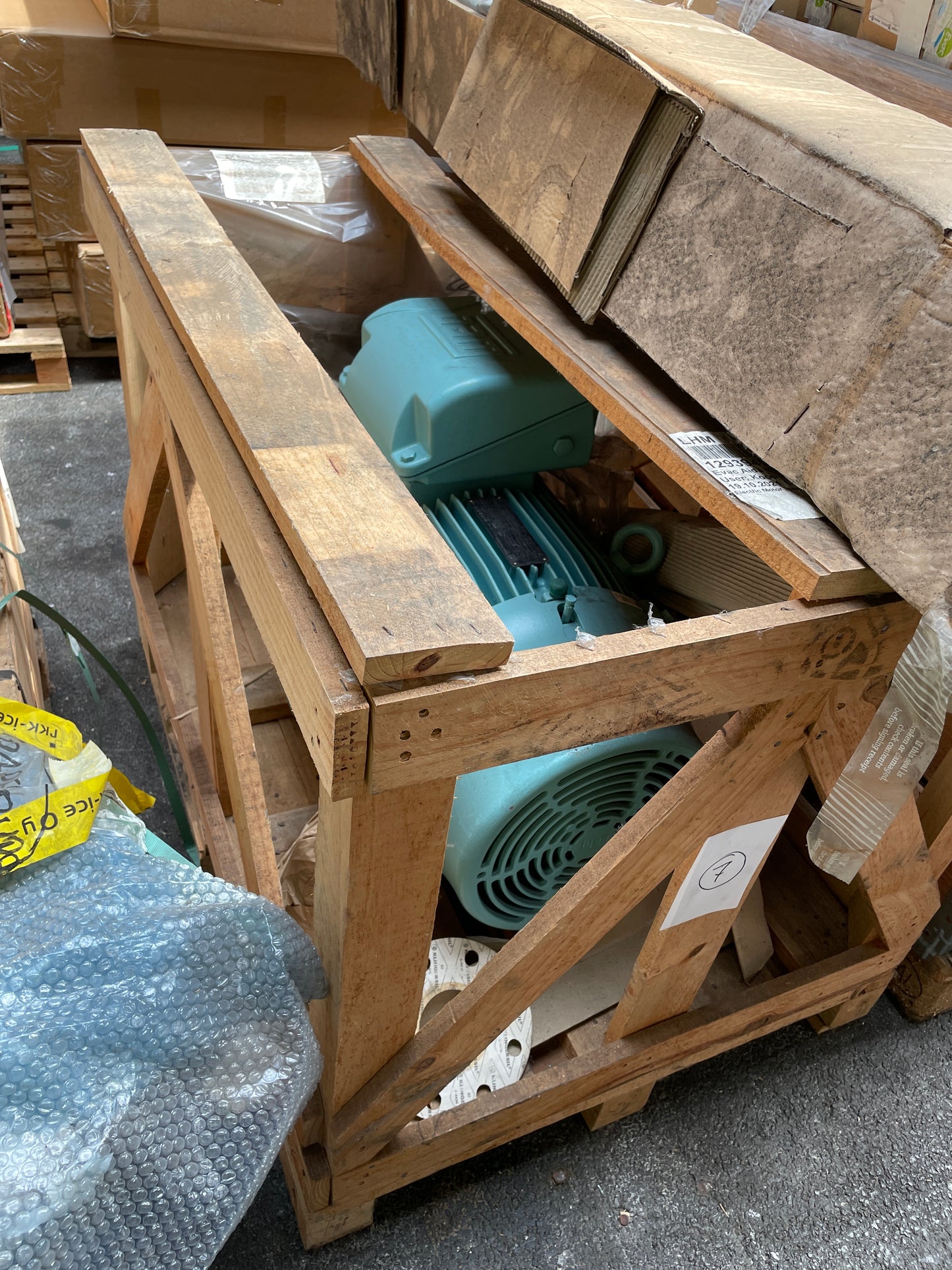

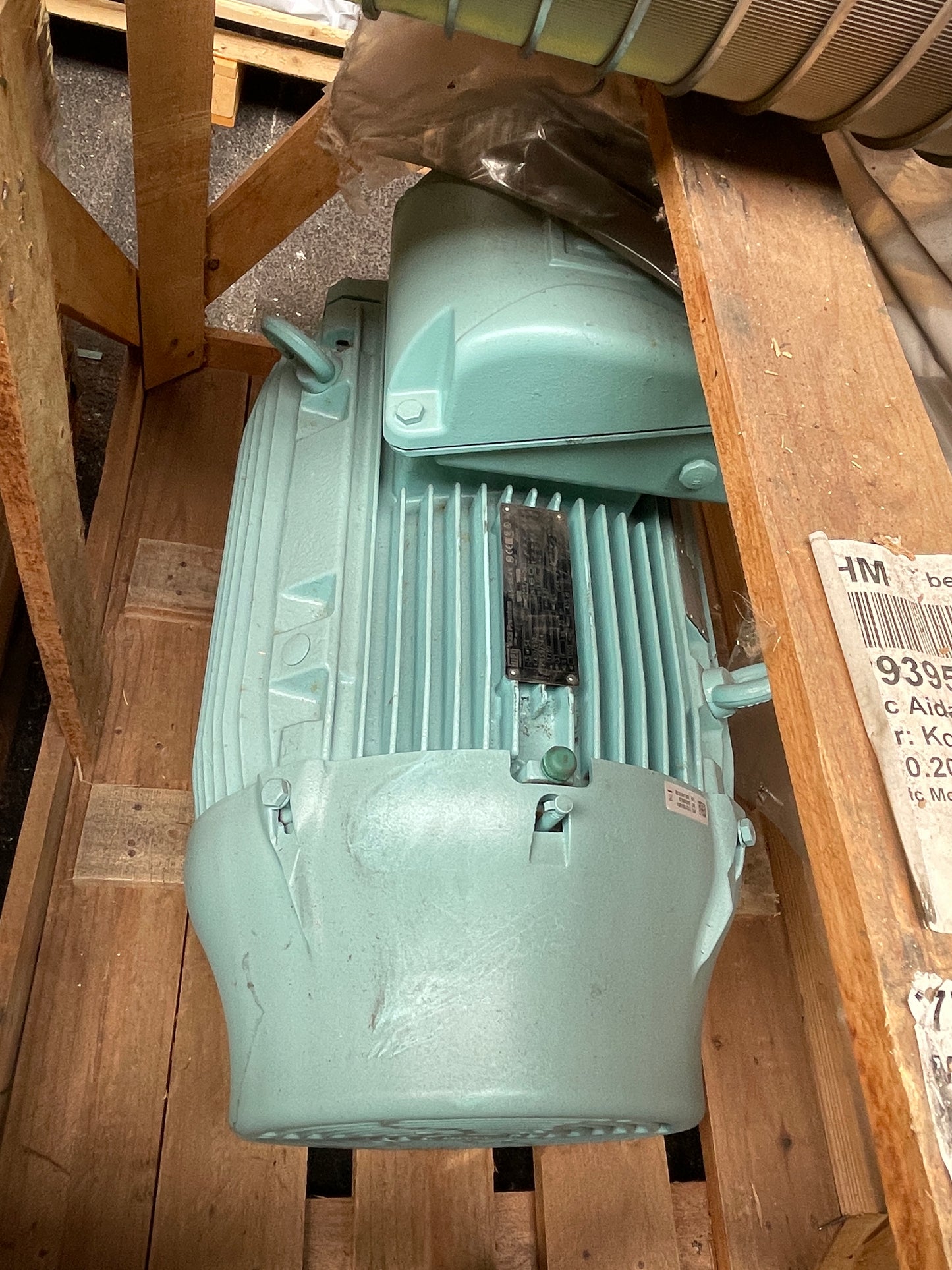

Weg W22 54 kW Frame 225S/M-04 Three-Phase Electric Motor

Part number: W22 54 kW; Frame 225S/M-04. This Weg W22 series industrial motor is a high-efficiency three-phase squirrel cage induction unit designed for continuous duty in demanding environments. It features a robust FC-200 cast iron frame and advanced WISE insulation for compatibility with variable frequency drives.

Full model name: Weg W22 Premium MOD.TE1BF0X0S

Application: Industrial pumps, fans, compressors, conveyors, and general-purpose manufacturing machinery requiring high-efficiency power transmission.

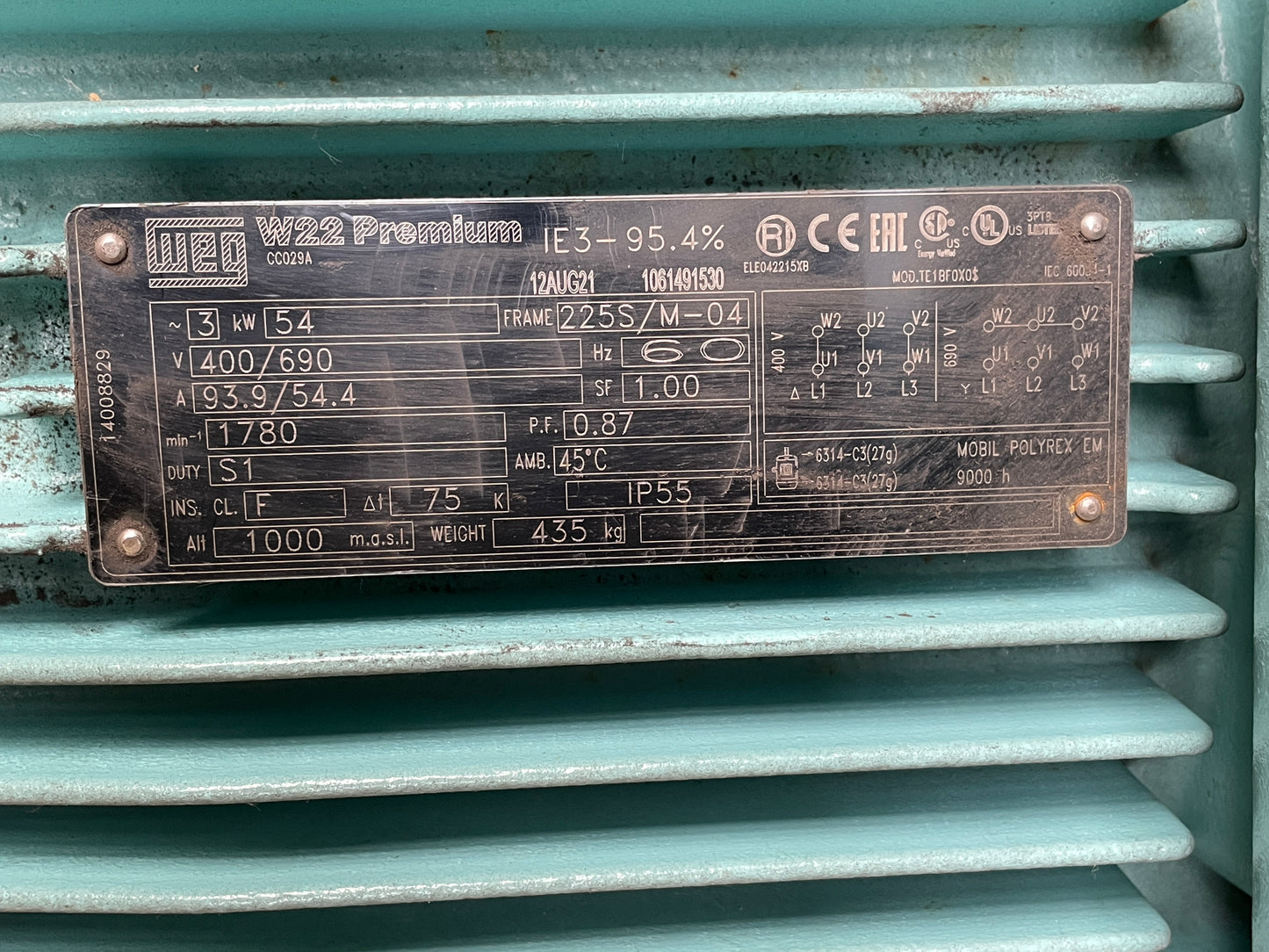

Technical Specifications:
• Rated Output: 54 kW (72.4 HP)
• Frame Size: 225S/M-04
• Rated Voltage: 400/690 V
• Frequency: 60 Hz
• Rated Speed: 1780 rpm
• Efficiency Class: IE3 Premium Efficiency (95.4%)
• Degree of Protection: IP55
• Insulation Class: F (75k temperature rise)
• Service Factor: 1.00
• Power Factor: 0.87
• Duty Cycle: S1 (Continuous)
• Ambient Temperature: 45C
• Weight: 435 kg
• Mounting: Foot mounted (Solid feet)
