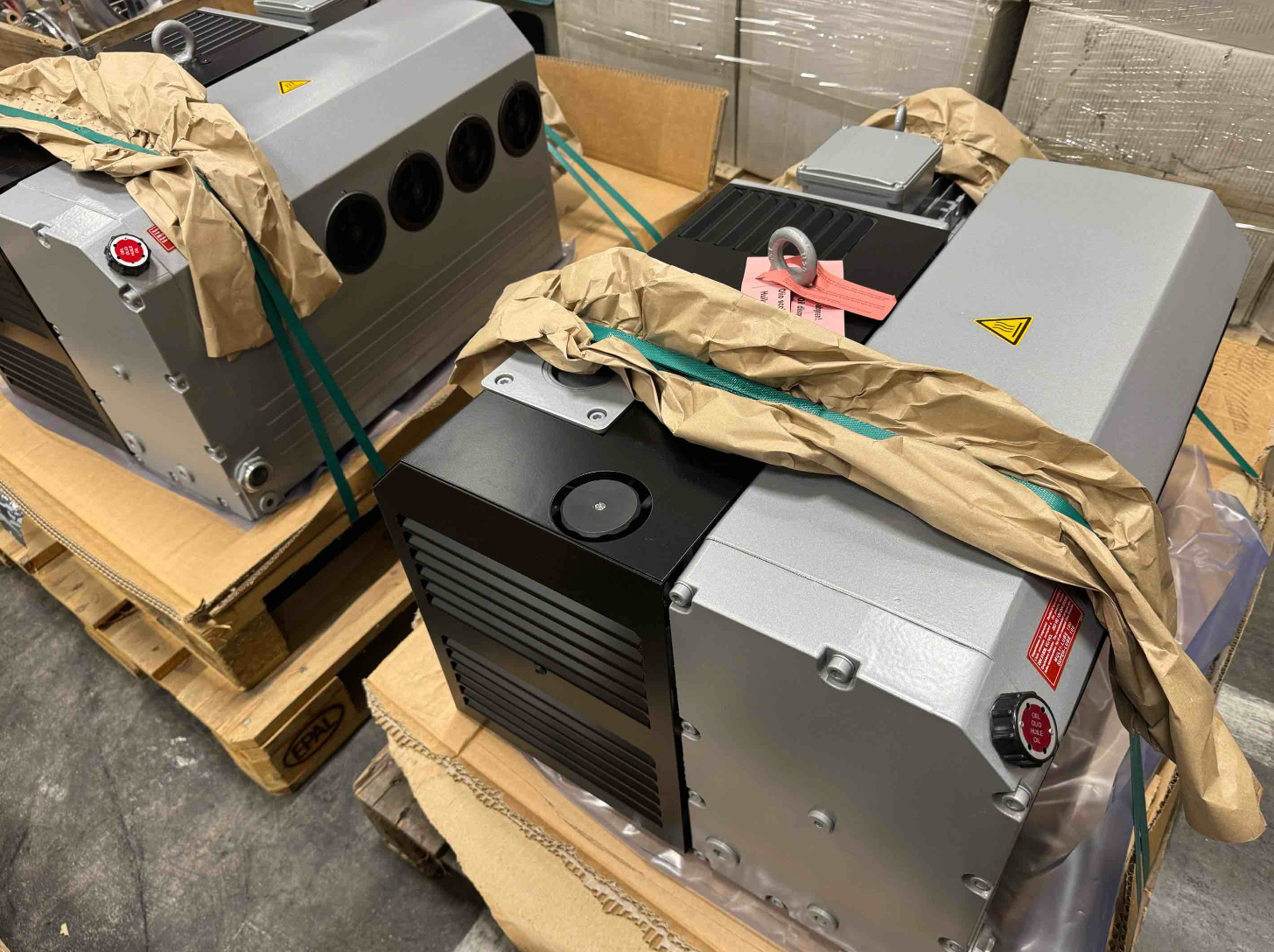

Elmo Rietschle V-VC 50 Oil-Lubricated Rotary Vane Vacuum Pump

Elmo Rietschle V-VC 50 (20)

A compact, oil-lubricated rotary vane vacuum pump designed for continuous operation. It reaches an ultimate vacuum of 0.1 mbar (abs). At 50 Hz, it has a pumping speed of 50 m³/h and is powered by a 1.25 kW motor. The unit features a flange motor with bearings on both sides of the rotor, an oil/air heat exchanger, a fine mesh filter, a vacuum non-return valve, and a gas ballast valve. The pump has a weight of 57 kg and an oil capacity of 3.0 L.

This pump is well-suited for a wide range of industrial applications where a reliable and deep vacuum is needed, such as food packaging, bottle filling, and general chemical metering. Its compact design and quiet operation make it suitable for installation in various environments. A heavy-duty 'XD' version is available for processes involving wet and humid conditions.
