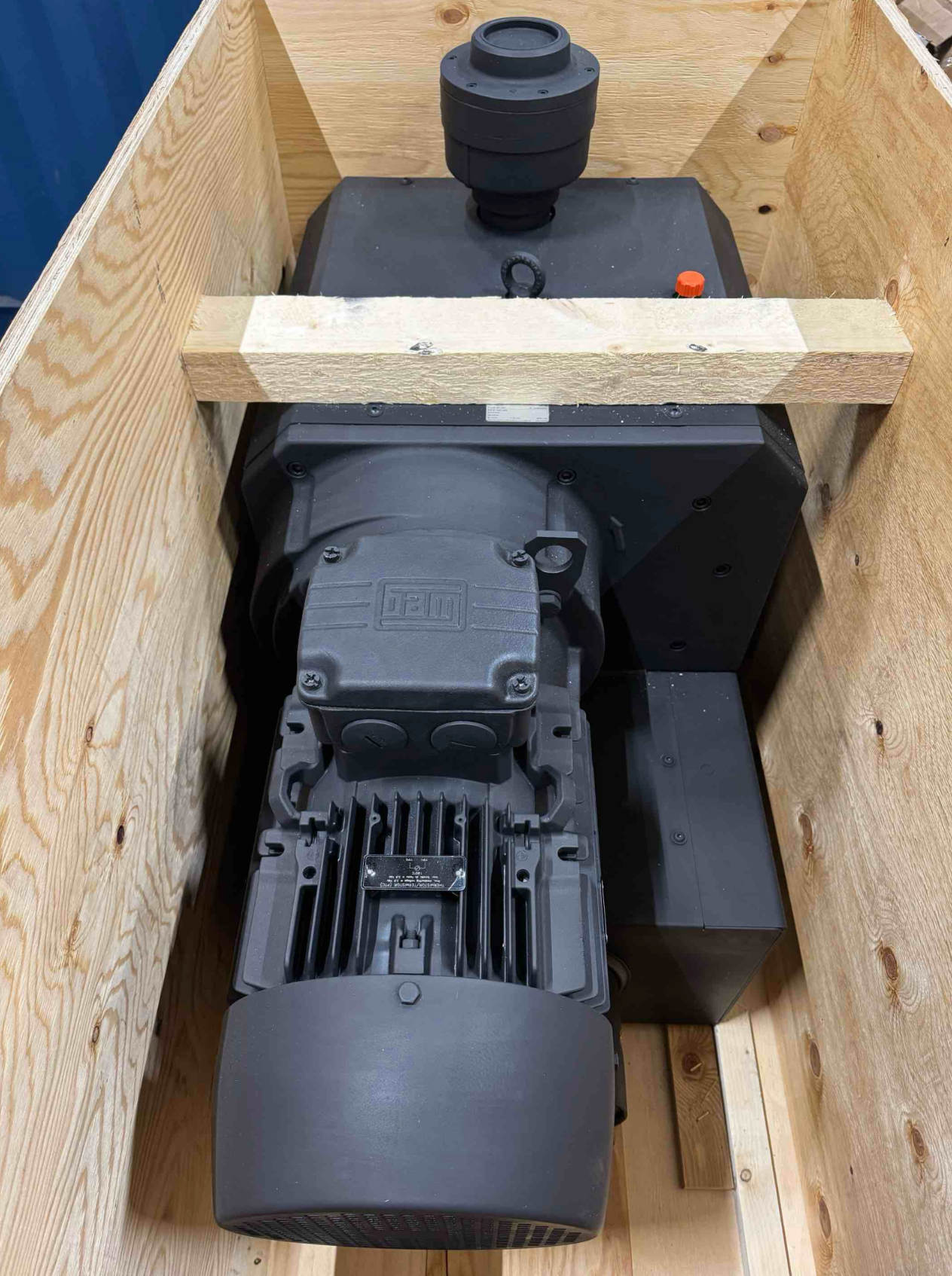

Elmo Rietschle C-VLR 501 (40) Dry Claw Vacuum Pump

Elmo Rietschle C-VLR 501 (40)

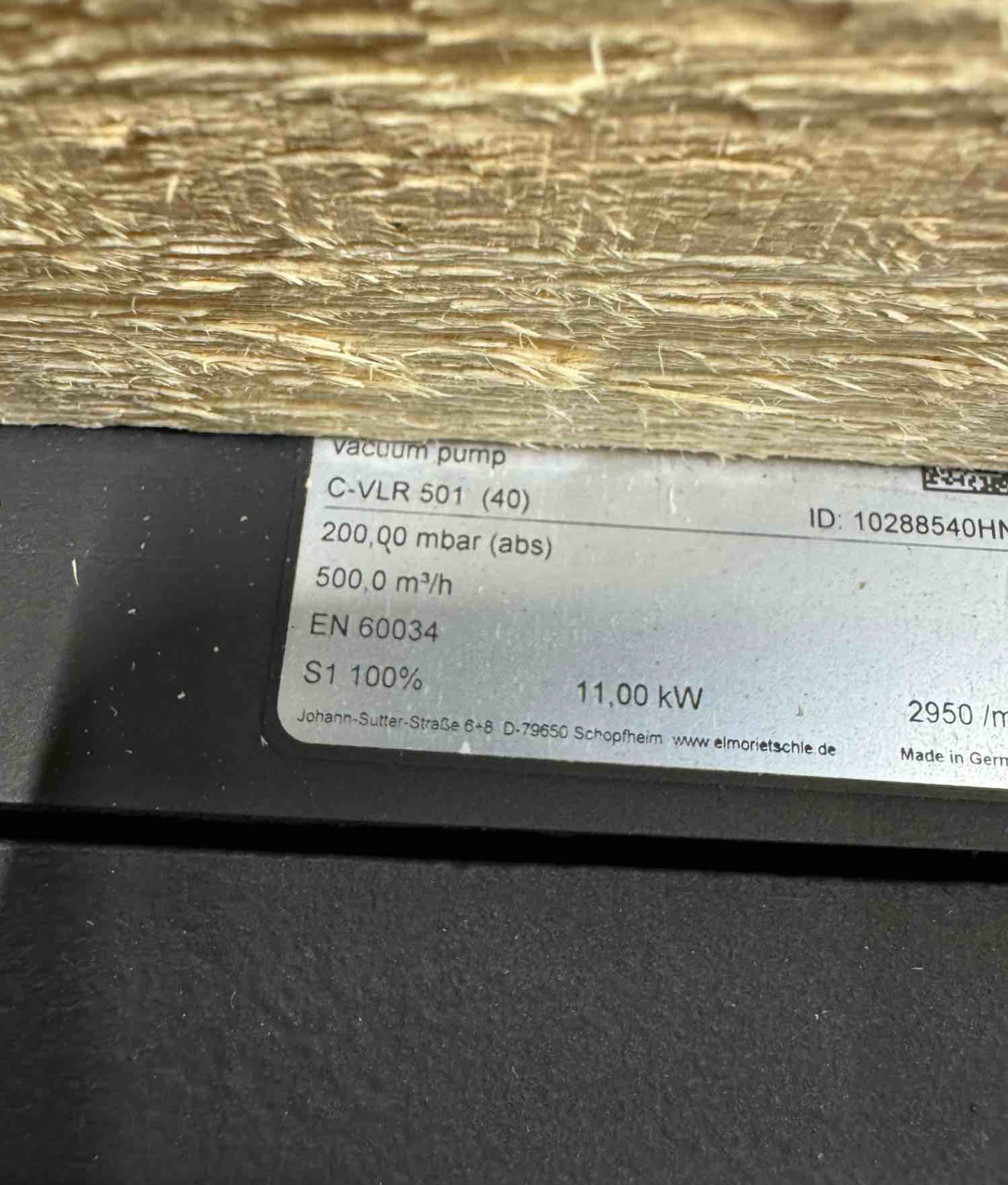

A high-capacity, dry-running, and contact-free claw vacuum pump, identified by order number 10288540HN. It operates on the principle of internal compression using claw rotors that do not touch. At 50 Hz, it delivers a suction capacity of 500 m³/h, an ultimate vacuum of 200 mbar (abs), and is equipped with an 11.0 kW IE3 motor. The average noise level is 78 dB(A). It features integrated air cooling and has a maximum weight of 510 kg with a gear oil capacity of 1.8 L. The motor conforms to DIN EN 60034 with IP55 protection.

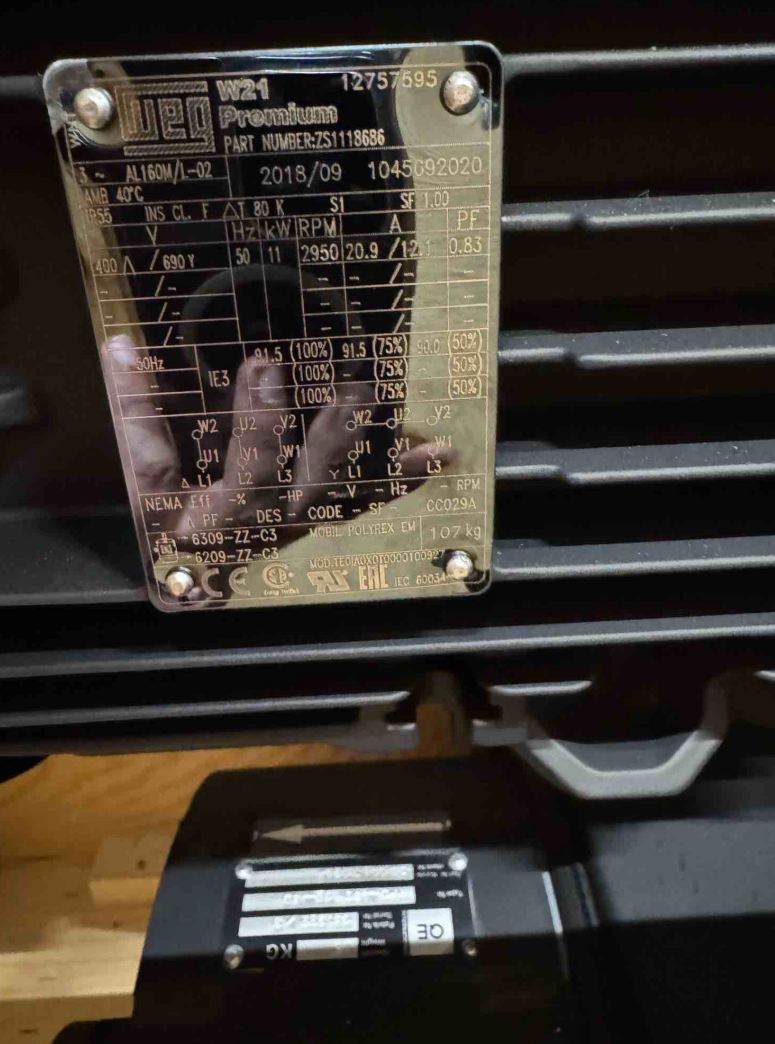

Motor: WEG W21 Premium Part Number: ZS1118686

This pump is designed for heavy-duty, continuous industrial operation where a high volume of oil-free vacuum is required. Its robust, low-maintenance design makes it suitable for demanding applications such as drying processes, packaging lines, and central vacuum systems in various industries. ATEX-compliant versions are available, extending its use to environments with potentially explosive atmospheres.
