ABB M3AA 250SMA 4 IMB3 IM1001 Process Performance Aluminium Induction Motor

Part number: M3AA 250SMA 4 IMB3 IM1001 is a new, 55 kW, 4-pole aluminium induction motor designed for demanding industrial environments. This motor is part of ABB's Process Performance range, offering durability and efficiency.

Full model name: M3AA 250SMA 4 IMB3 IM1001

Application: This ABB Process Performance induction motor is ideally suited for process industries and heavy-duty applications such as mining, cement, and paper, where high reliability, availability, and efficiency are critical in harsh conditions.

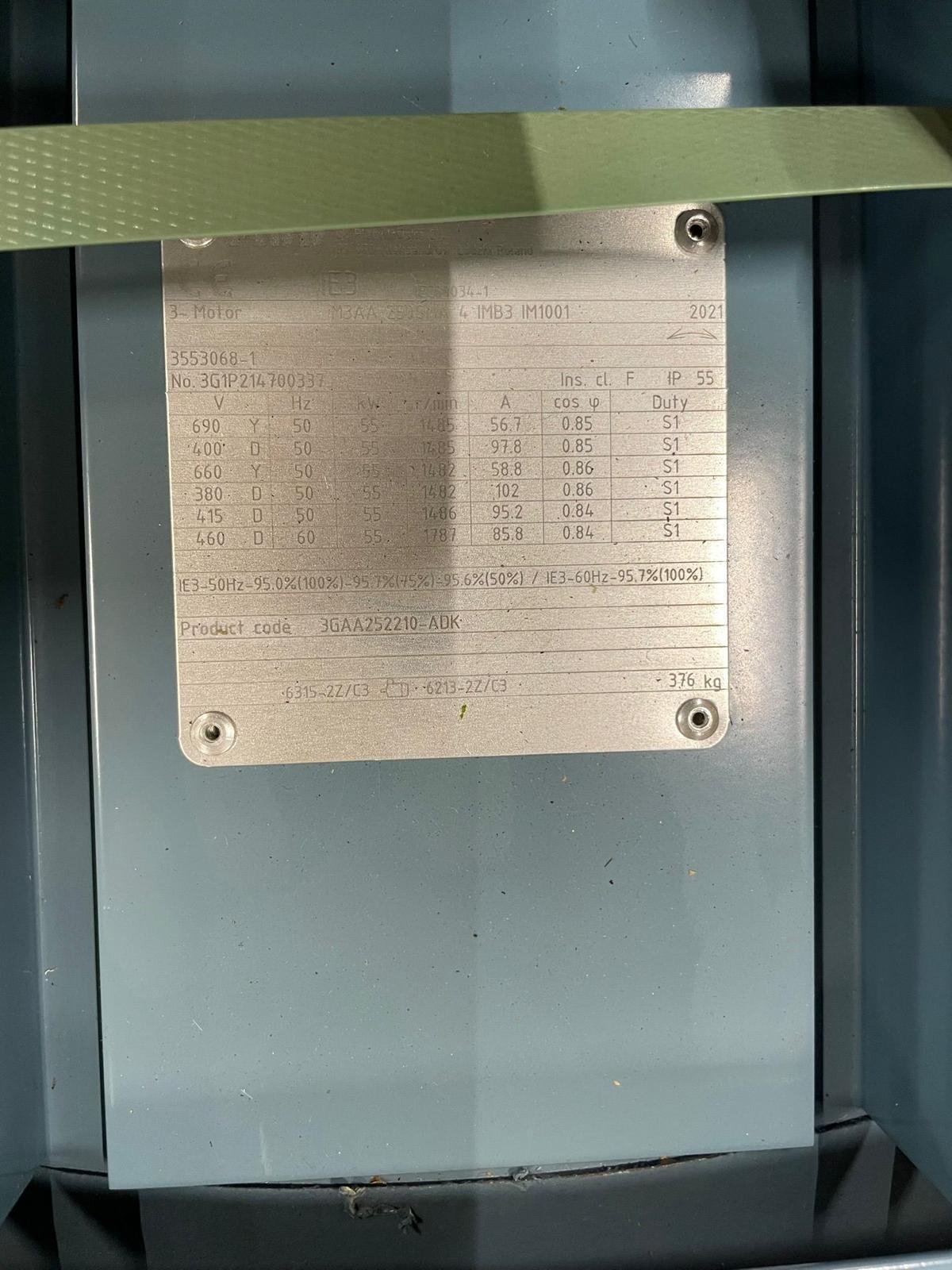

Technical Specifications:
• Manufacturer: ABB
• Part Number: M3AA 250SMA 4 IMB3 IM1001
• Product Code: 3GAA252210-ADK
• Output Power: 55 kW
• Number of Poles: 4
• Mounting Arrangement: IMB3 IM1001 (Foot-mounted)
• Rated Voltage (50 Hz): 400 V Delta / 690 V Star
• Rated Speed (50 Hz): 1478-1485 r/min
• Rated Voltage (60 Hz): 460 V Delta
• Rated Speed (60 Hz): 1782-1787 r/min
• Efficiency Class (50 Hz): IE3
• IP Rating: IP55
• Insulation Class: ICLF (Class F/B)
• Frame Material: Aluminium
• Product Net Weight: 376 kg
• Ambient Temperature: 40 °C
• Altitude: 1000 m
• Bearings: Drive End (DE) 6315-2Z/C3, Non-Drive End (NDE) 6213-2Z/C3
• Year of manufacture: 2021

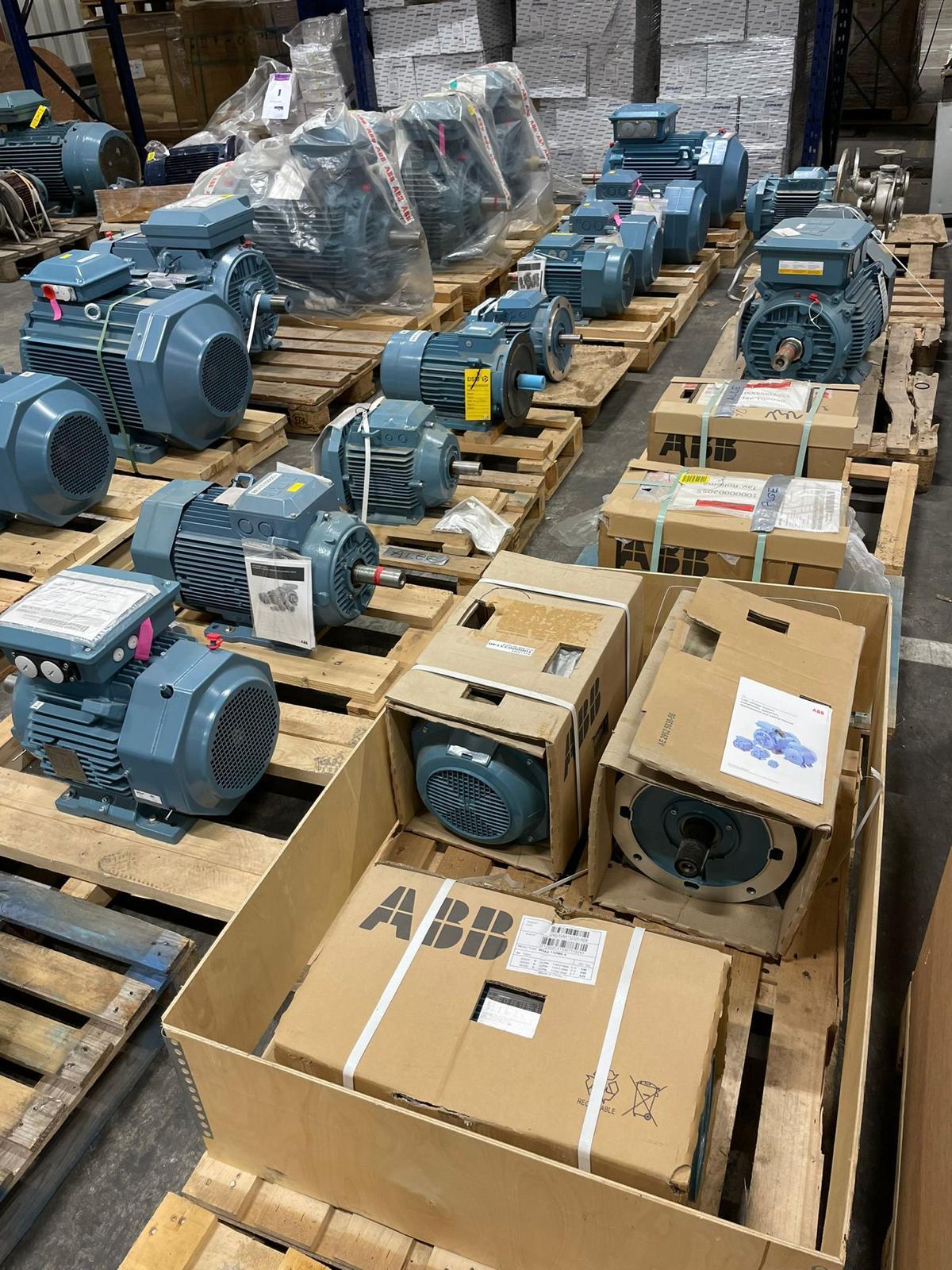

• Condition: New old inventory, surplus from a cancelled project.
