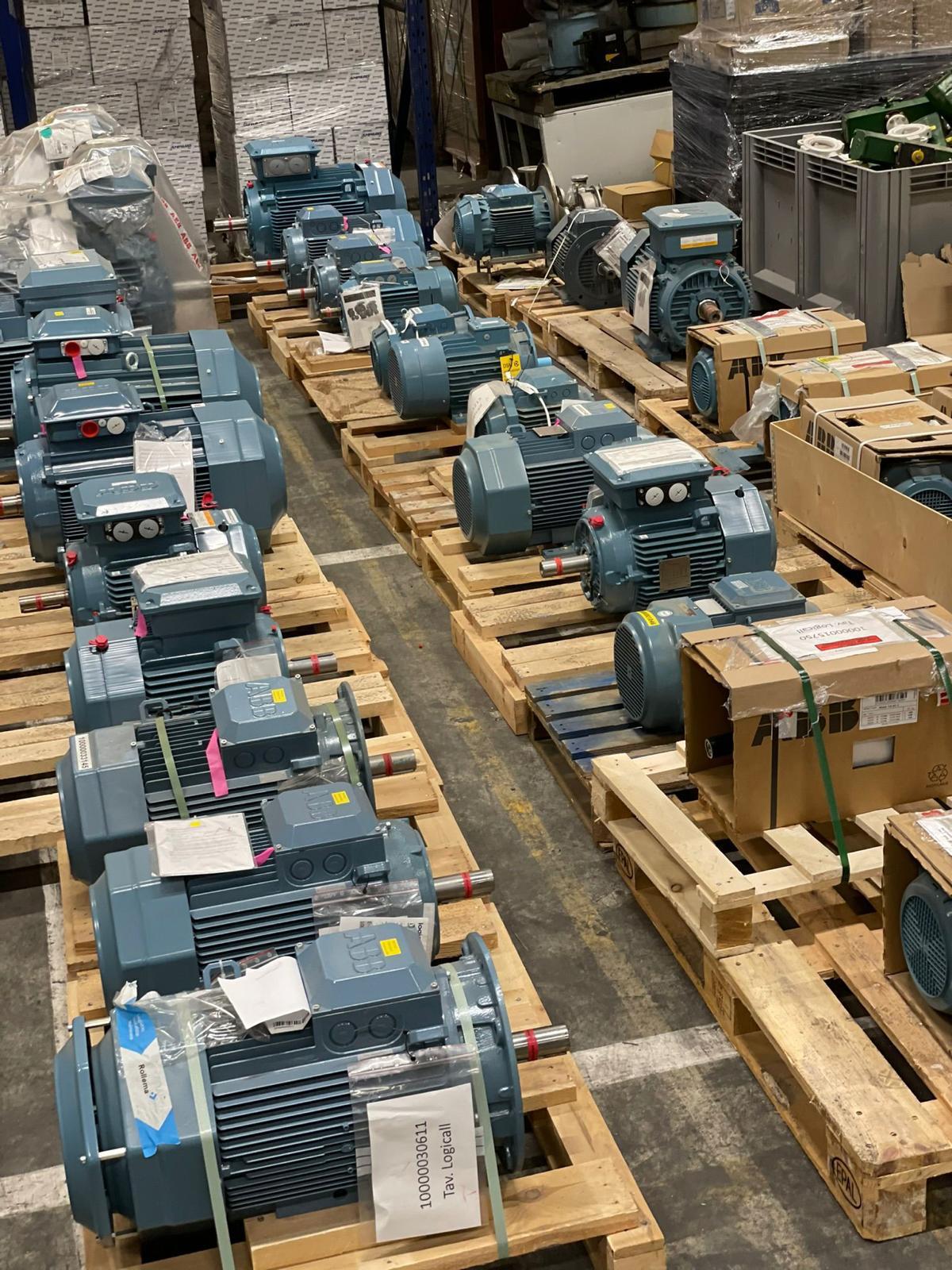

ABB M3GP 90 LD 3-Phase Squirrel Cage Induction Motor

Part number: M3GP 90 LD is a 3-phase squirrel cage induction motor designed for industrial applications, particularly in explosive atmospheres. This motor combines robust cast iron construction with IE3 premium efficiency for reliable operation.

Full model name: ABB M3GP 90LD 4

Application: This motor is suitable for various industrial applications, especially in environments requiring dust ignition proof (Ex) protection, such as the process industry. It is designed for continuous duty (S1) in potentially explosive atmospheres.

Technical Specifications:
• Output Power: 1.5 kW
• Rated Speed: 1442 r/min (at 50 Hz, 400 V)
• Input Voltage: 400 V (50 Hz)
• Number of Poles: 4
• Efficiency Class: IE3 Premium Efficiency
• Frame Size: 90
• Frame Material: Cast Iron
• Protection Type: IP55
• EX-Protection: Exec, Dust Ignition Proof (e.g., Ex nA, Ex t)
• Mounting: Flange mounted (IMB5/IM3001)
• Product Net Weight: 34 kg
• Product code: 3GGP092540-BSK
• Year of manufacture: 2022
• Location: Netherlands

New old inventory, surplus from a cancelled project. Available for immediate delivery at surplus pricing.

Technical Documentation:
Technical Documentation via Google
