ABB M3AA 100LC 2 IE3 Premium Efficiency Aluminium Motor

Part number: M3AA 100LC 2 is an ABB IE3 Premium Efficiency three-phase squirrel cage induction motor, designed for robust performance in various industrial applications. It features an aluminium frame and is built to international standards for energy efficiency and reliability.

Full model name: ABB M3AA 100LC 2 IE3 Premium Efficiency Electric Motor

Application: Suitable for general industry and process performance applications, providing reliable power for machinery and systems.

Technical Specifications:

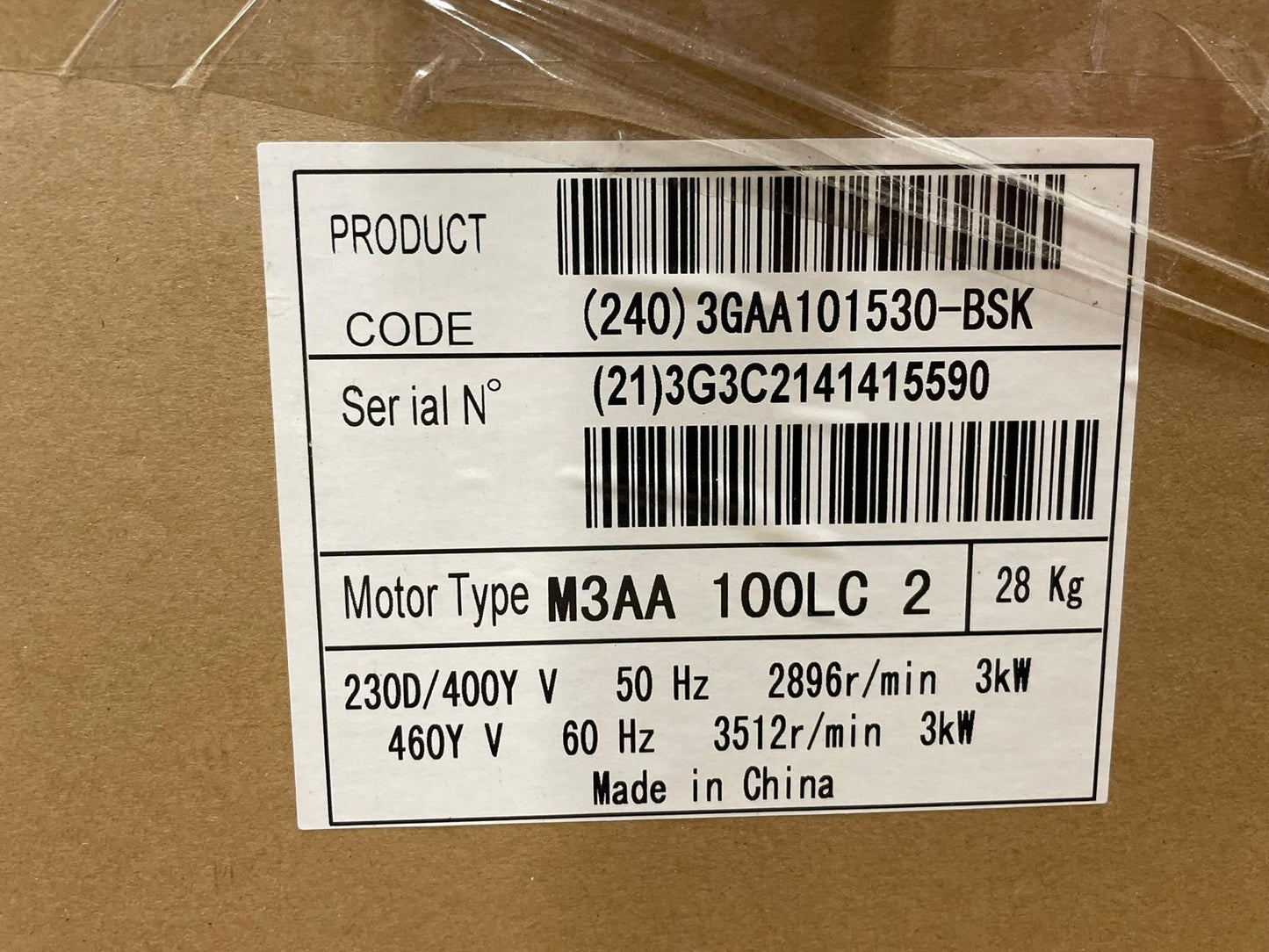

• Product Code: 3GAA101530-BSK
• Power: 3.0 kW
• RPM: 2896 r/min (at 50 Hz)
• Voltage: 230D/400Y (230V Delta / 400V Star)
• Poles: 2-pole
• Frame Size: IEC 100L
• Efficiency Class: IE3 Premium Efficiency
• IP Rating: IP55
• Insulation Class: ICLF (Class F insulation with Class B temperature rise)
• Frame Material: Aluminium
• Product Net Weight: 28kg
• Shaft Size: 28mm
• Bearings: Drive End (DE) 6306-2Z/C3, Non-Drive End (NDE) 6205-2Z/C3
• Common Mounting Types: IMB14 (B14 flange) or IMB3 (B3 foot-mounted)
• Year of manufacture: (verify with Tetromi)

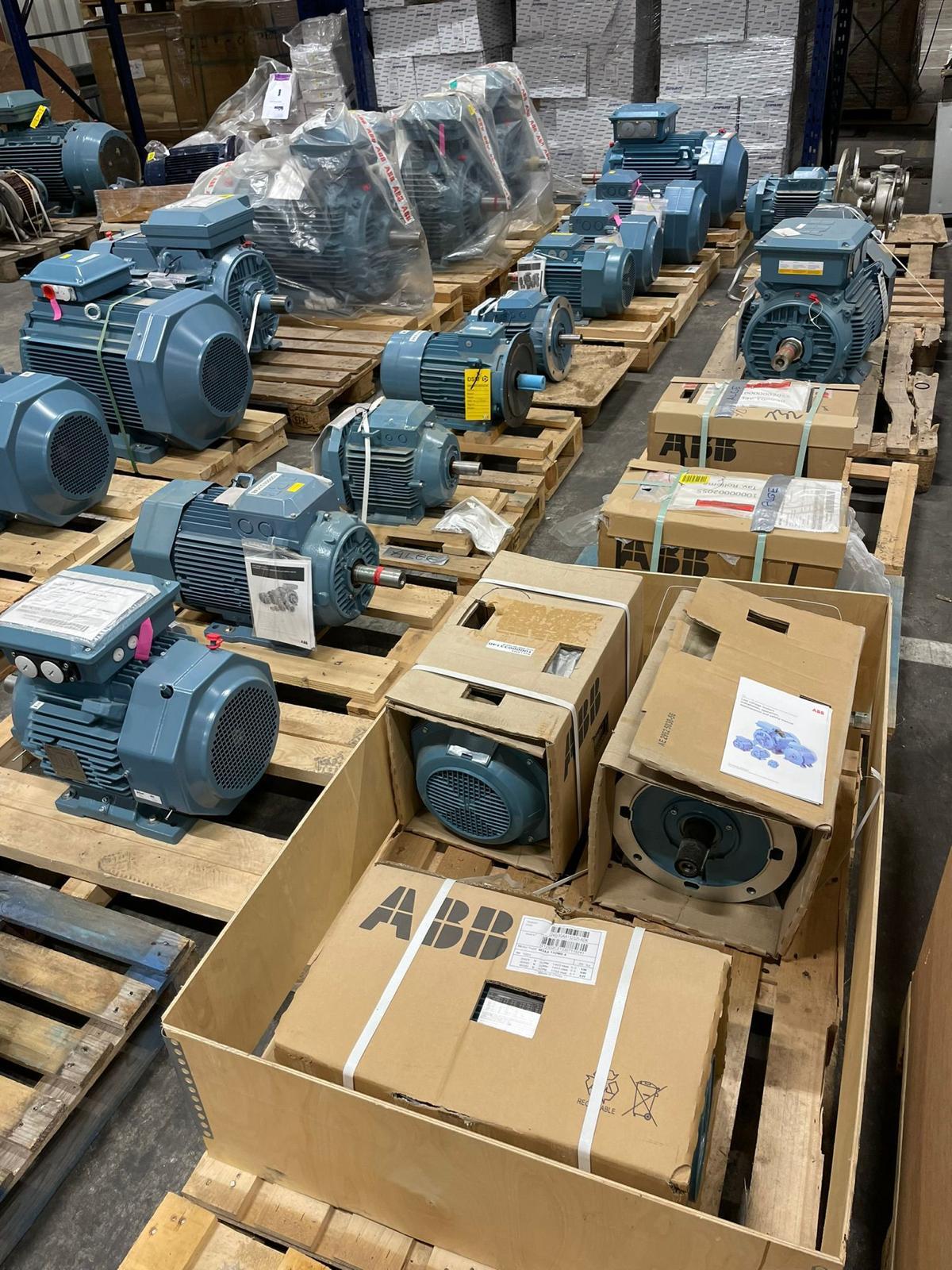

New old inventory, surplus from a cancelled project. Available for immediate delivery at surplus pricing.

Technical Documentation:
Technical Documentation via Google
