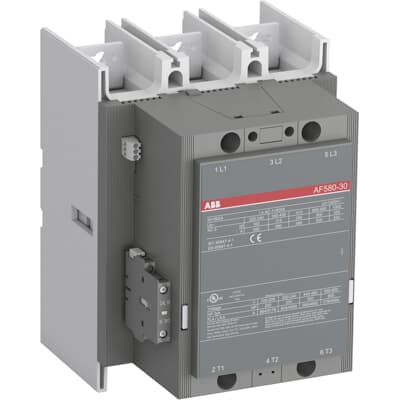

ABB Contactor AF580-30-11-70 1SFL617001R7011

Part number: 1SFL617001R7011. The AF580-30-11-70 is a 3-pole contactor with pre-mounted auxiliary contacts and main circuit bars for motor control and power switching. It controls motors up to 315 kW at 400 V AC (AC-3) or 500 hp at 480 V UL and switches power circuits up to 800 A (AC-1) or 750 A UL general use. The AF electronic coil interface manages control voltage variations between 100-250 V 50/60 Hz and DC, reducing panel energy consumption. The design includes built-in surge protection and can be extended with add-on auxiliary contact blocks.

Full model name: AF580-30-11-70.

Application: Large-scale industrial motor starting, isolation, by-pass, and power circuit distribution in heavy manufacturing and power plant environments.

Technical Specifications:
• Rated Operational Voltage: 1000 V IEC / 600 V UL
• Rated Operational Current AC-3: 580 A (400 V)
• Rated Operational Current AC-1: 800 A (690 V)
• Control Voltage: 100-250 V AC/DC
• Number of Main Contacts NO: 3
• Auxiliary Contacts: 1 NO + 1 NC
• Mechanical Durability: 3 million cycles
• Net Weight: 13.6 kg.

Technical Documentation:
Technical Datasheet
