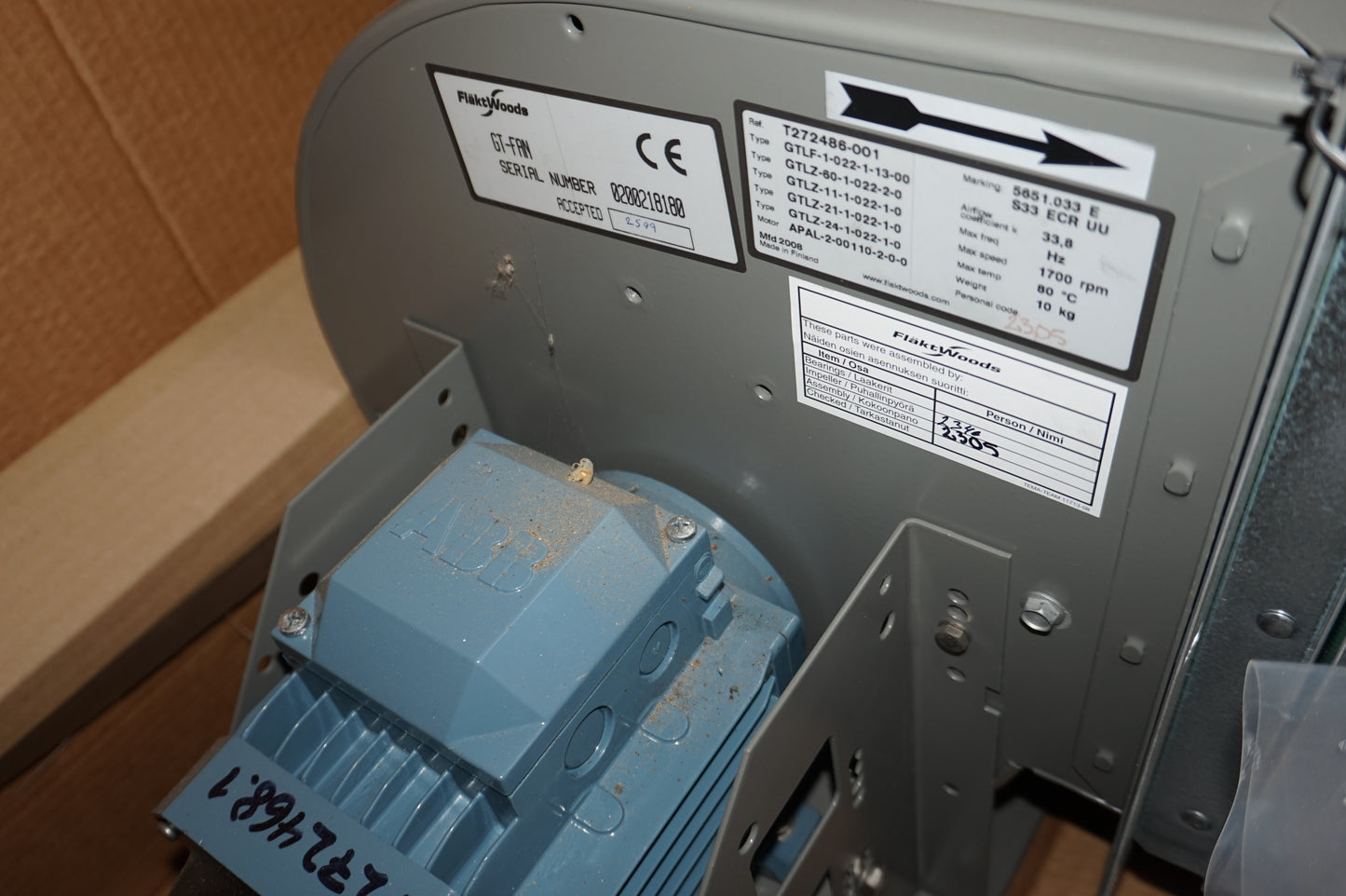

FläktWoods T273609-001 CentriMaster GT Centrifugal Fan

Part number: T273609-001. This direct-driven, single-inlet centrifugal fan is designed for high-efficiency air movement in industrial and commercial ventilation systems.

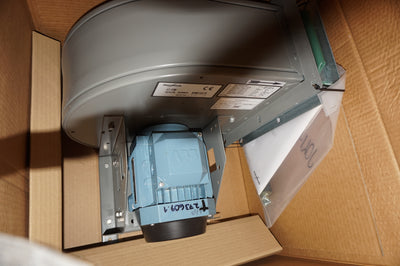

Full model name: CentriMaster GT-1 GTLF-1-022-1-13-00

Application: Used in general building ventilation, industrial air movement, and HVAC systems requiring forward-curved impeller performance for cost-efficient air flow and pressure management.

Technical Specifications:
• Fan Type: Direct-driven, single-inlet centrifugal fan
• Impeller Type: Forward-curved blades (GTLF series)
• Nominal Size: 022 (220 mm impeller diameter)
• Casing Material: Sendzimir galvanized sheet steel
• Maximum Operating Temperature: +80°C (standard version)
• Construction: Pittsburg folding method for airtight joints
• Inlet Design: Deep-pressed end walls for optimized aerodynamics
• Accessories Included: Flexible inlet connection (GTLZ-11), flexible outlet connection (GTLZ-21), and painted finish (GTLZ-60)

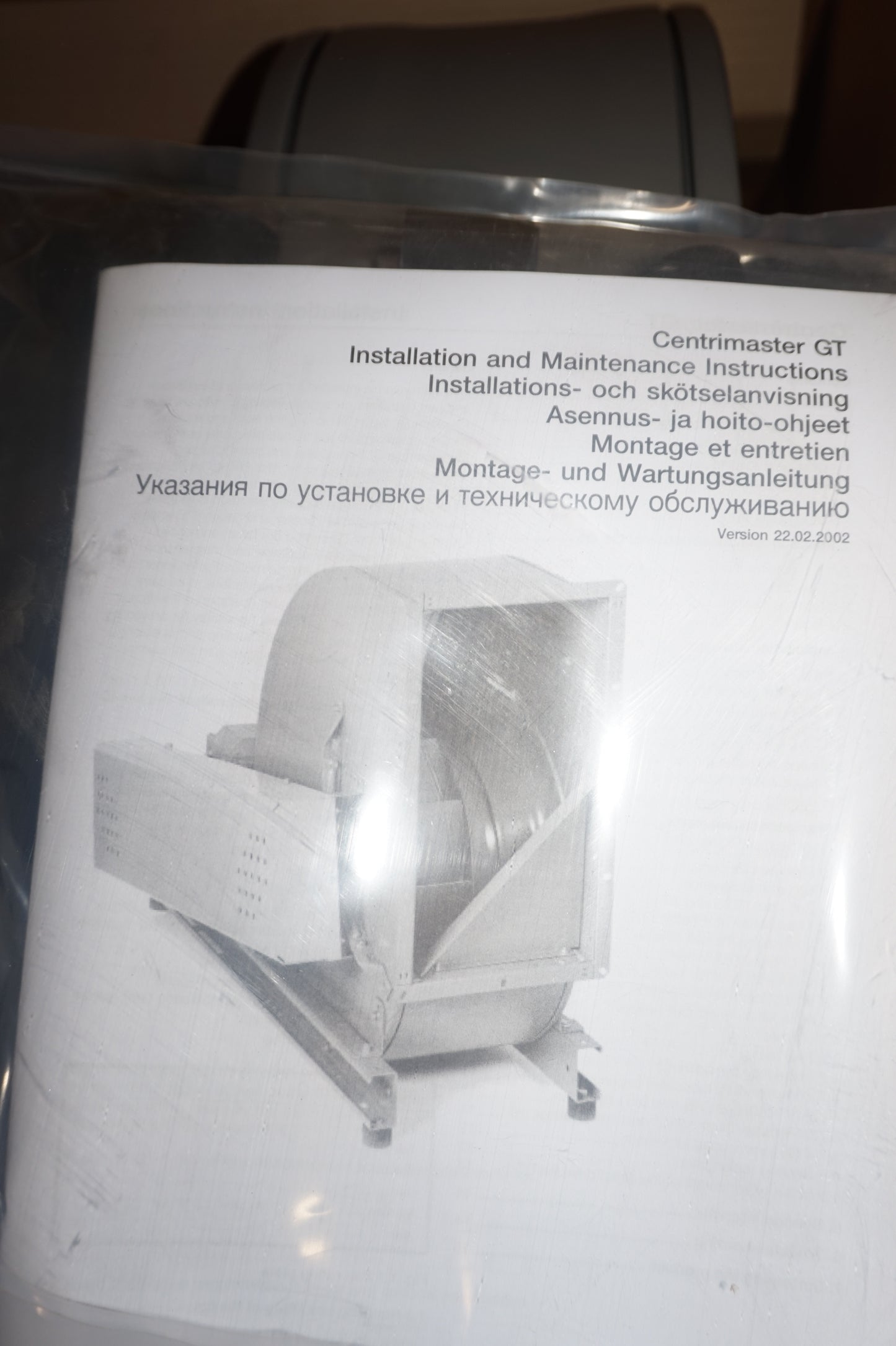

Technical Documentation:
