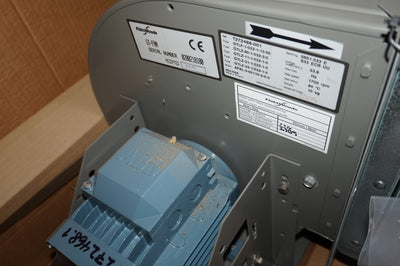

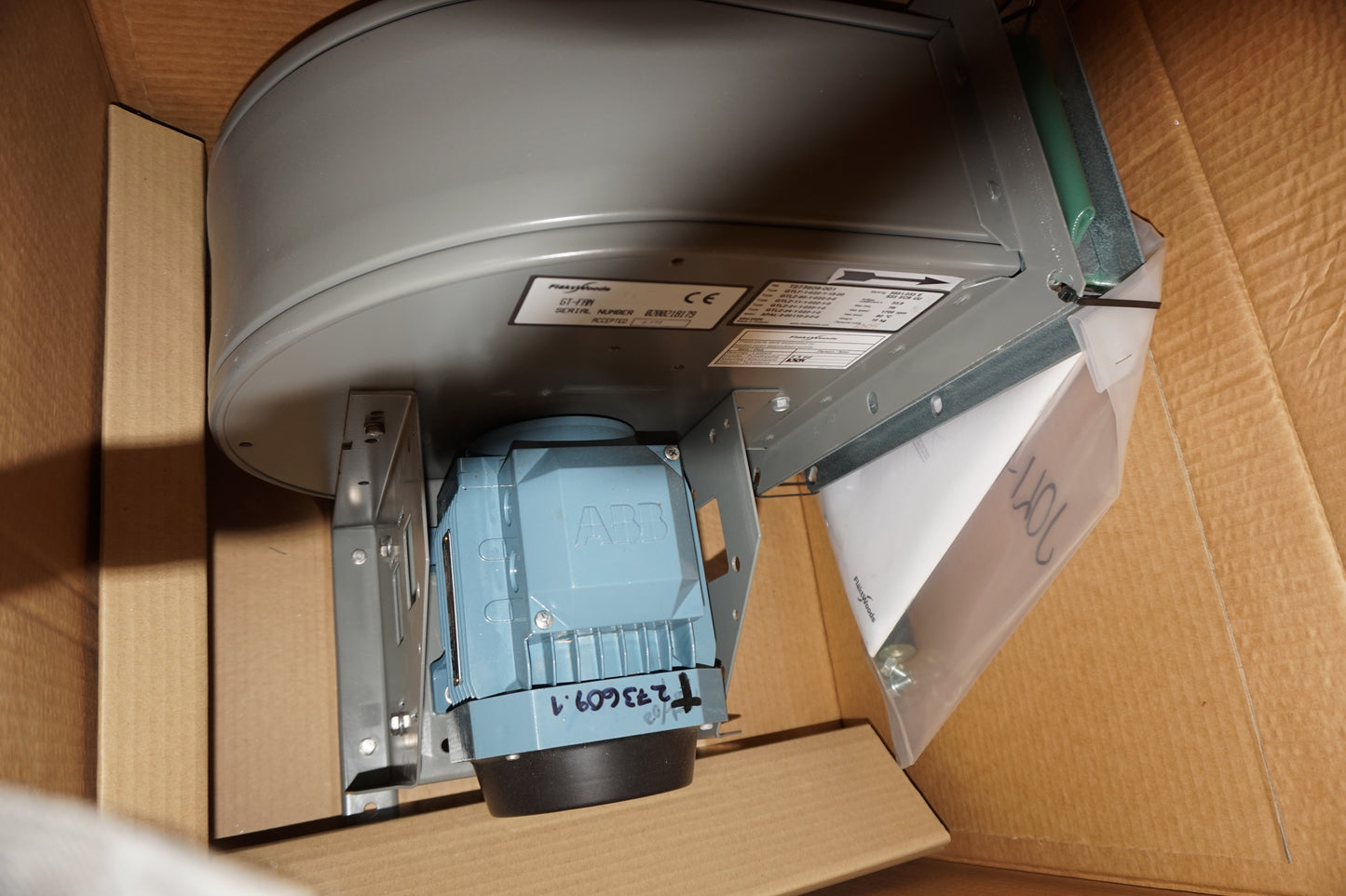

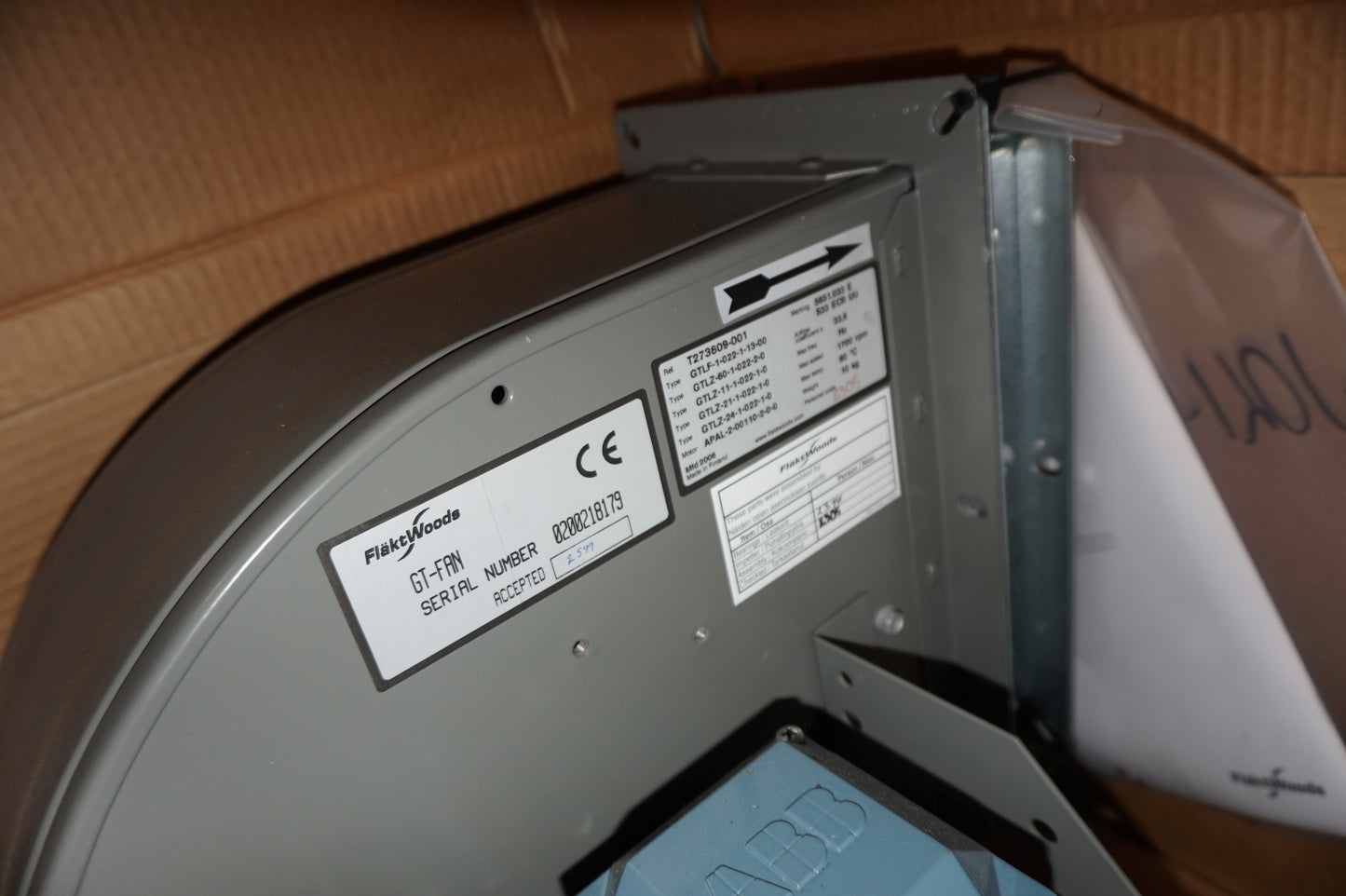

FläktWoods Centrimaster GT GTLF-1-022-1-13-00 Centrifugal Fan

Part number: Centrimaster GT GTLF-1-022-1-13-00. This direct-driven, single-inlet centrifugal fan is designed for general air movement and ventilation applications, featuring an impeller with forward-curved blades for optimized airflow and pressure performance.

Full model name: Centrimaster GT GTLF-1-022-1-13-00

Application: Industrial ventilation, HVAC systems, office buildings, and manufacturing facilities requiring air flows up to 7 m3/s.

Technical Specifications:
• Fan Type: Single-inlet centrifugal fan for direct drive
• Impeller Type: Forward-curved blades (LF series)
• Fan Size: 022
• Casing Material: Sendzimir galvanized sheet steel with Pittsburg folding joints
• Balancing: Dynamically balanced to ISO 1940-1973 G 6.3 accuracy
• Operating Temperature: Up to +80°C (ducted inlet) or +40°C (free inlet)
• Motor Compatibility: APAL-2-00110-2-0-0 (2-pole single speed)
• Accessories Included: GTLZ-11-1-022-10 (Flexible connection inlet), GTLZ-21-1-022-1-0 (Flexible connection outlet), GTLZ-24-1-022-1-0 (Counterflange outlet)
