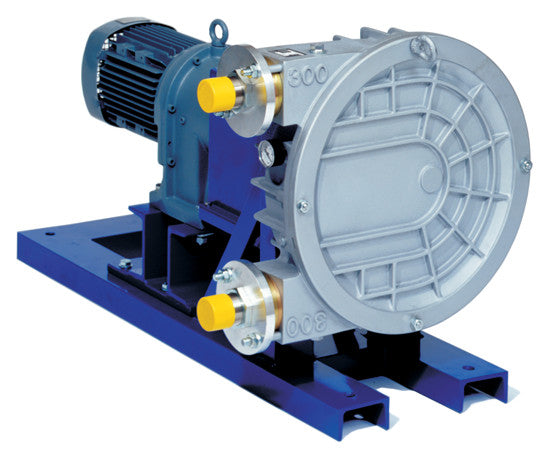

Elro Peristaltic Pump IP500
Technical Specifications
Product Details & Description
The ELRO IP Series peristaltic pumps are a robust stationary solution for the gentle transport of liquid or highly viscous media. Tetromi supplies complete units or customized configurations of the solitary wetted wear part (the hose) to ensure absolute chemical compatibility with your shear-sensitive products. The IP series features a patented vacuum system that creates a permanent vacuum inside the housing, ensuring constant flow rates and maximum suction lift of 9.5 mWs across the service life of the hose.
Model: ELRO Peristaltic Pump IP500.
Application: High-volume industrial waste management, chemical transfer, and food-approved fluid transport.
Technical Specifications:
• Max. flow rate: 10.5 m3/h
• Max. pump pressure: 13 bar (188 psi)
• Max. dry suction lift: 9.5 mWs
• Internal hose diameter: 52 mm
• Weight without drive: 242 kg
• Recommended speed: 10-60 RPM.
Technical Documentation:
Operating Manual and Installation Instructions
Technical Datasheet for ELRO Series IP and XP Peristaltic Pumps
IP500 Datasheet
