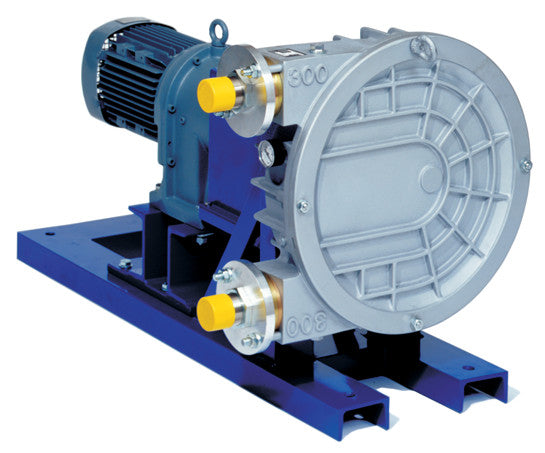

Elro Peristaltic Pump IP100
Technical Specifications
Product Details & Description
The ELRO IP Series peristaltic pumps, a robust stationary solution for the gentle transport of liquid or highly viscous media. Tetromi supplies complete units or customized configurations of the solitary wetted wear part (the hose) to ensure absolute chemical compatibility with your shear-sensitive products. The IP series features a patented vacuum system that creates a permanent vacuum inside the housing, ensuring constant flow rates and maximum suction lift of 9.5 mWs across the service life of the hose.
Model: ELRO Peristaltic Pump IP100.
Application: Industrial chemical processing, chemical dosing, wastewater treatment, breweries, and power station waste disposal.
Technical Specifications:
• Max. flow rate: 0.6 m3/h
• Max. pump pressure: 13 bar (188 psi)
• Max. dry suction lift: 9.5 mWs
• Internal hose diameter: 15 mm
• Weight without drive: 46 kg
• Self-priming: Yes
• Dry-running safe: Yes.
Technical Documentation:
Operating Manual and Installation Instructions
Technical Datasheet for ELRO Series IP and XP Peristaltic Pumps
IP100 Datasheet
