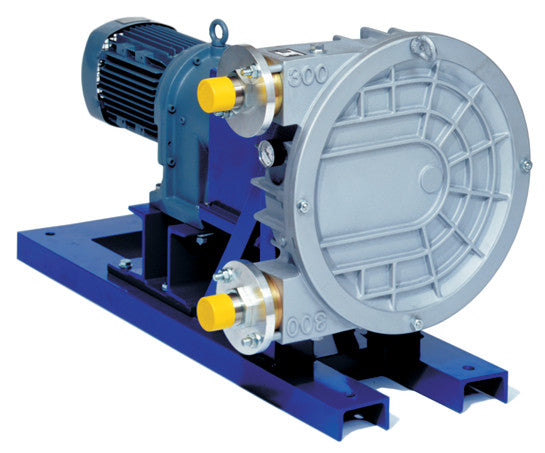

Elro Peristaltic Pump IP200
Technical Specifications
Product Details & Description
The ELRO IP Series peristaltic pumps are a robust stationary solution for the gentle transport of liquid or highly viscous media. Tetromi supplies complete units or customized configurations of the solitary wetted wear part (the hose) to ensure absolute chemical compatibility with your shear-sensitive products. The IP series features a patented vacuum system that creates a permanent vacuum inside the housing, ensuring constant flow rates and maximum suction lift of 9.5 mWs across the service life of the hose.
Model: ELRO Peristaltic Pump IP200.
Application: High-suction industrial fluid transfer, sludge transfer, chemical processing, and abrasive media handling.
Technical Specifications:
• Max. flow rate: 1.9 m3/h
• Max. pump pressure: 13 bar (188 psi)
• Max. dry suction lift: 9.5 mWs
• Internal hose diameter: 30 mm
• Weight without drive: 52 kg
• Lubricant capacity: 1.0 Liter.
Technical Documentation:
Operating Manual and Installation Instructions
Technical Datasheet for ELRO Series IP and XP Peristaltic Pumps
IP200 Datasheet
