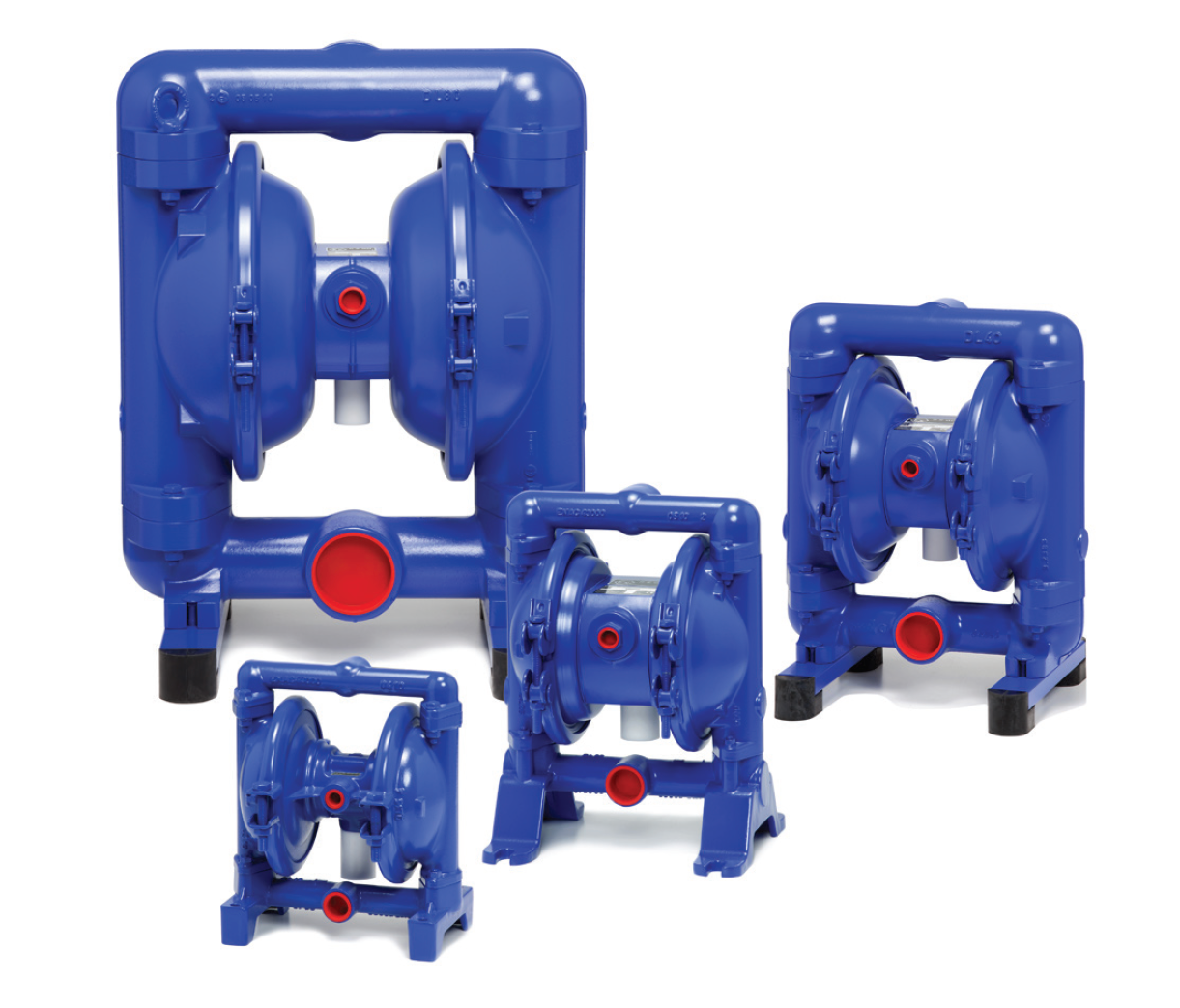

Depa Air-Operated Diaphragm Pump Series M Type DL

DEPA Series M Type DL metallic range is a robust industry standard for abrasive and demanding fluid transfer operations. Availabile in configurations utilizing a classic clamp-band design that facilitates rapid disassembly without special tools, significantly reducing operational downtime. Type DL unit is configured with wetted materials, including Nodular Cast Iron (CA), Iron/Bronze (CX), or Hastelloy (HS), and polished surfaces to minimize flow resistance.

Full model name: DEPA Series M Type DL Metallic Pumps.

Application: Professional ceramic production, industrial spray painting, maritime propulsion support on ships, and abrasive slurry recovery in mining.

Technical Specifications:
• Size range: DN15 to DN80 (1/2" to 3")
• Max. discharge pressure: 8.6 bar (125 psi)
• Max. suction height: Up to 6.0 m (dry self-priming)
• Max. particle size: 10.0 mm (model dependent)
• Design: Modular clamp-band architecture for rapid maintenance
• Casing materials: CA, CX, HS.
