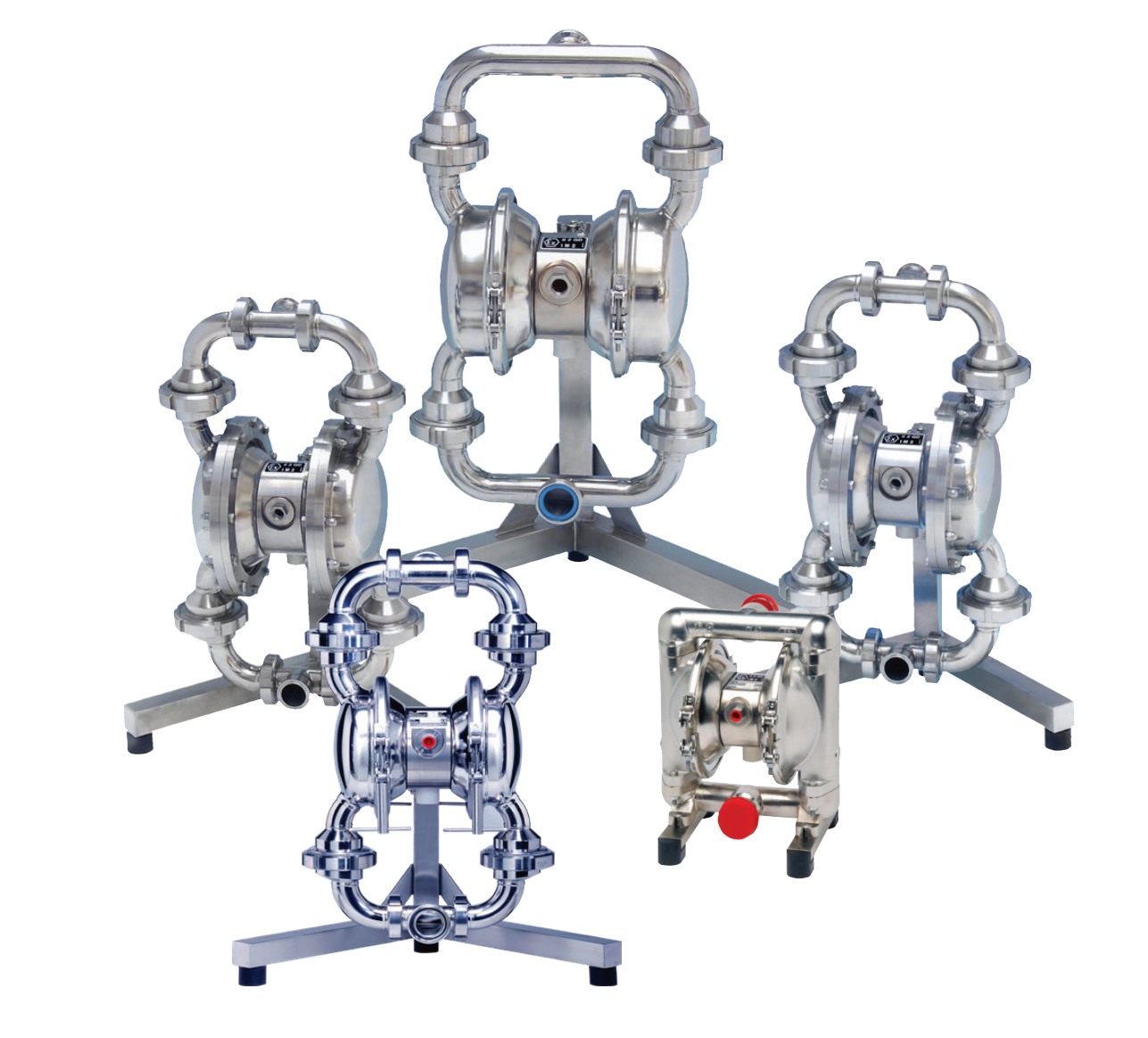

Depa Air-Operated Diaphragm Pump Series L

Tetromi supplies the specialized DEPA Series L hygienic range, developed specifically for the rigorous standards of the pharmaceutical, food, and beverage industries. The Series L pumps are fully compliant with FDA and 3A guidelines and is suitable for both Sterilize-In-Place (SIP) and Clean-In-Place (CIP) operations. Large valve clearances allow for the safe transfer of media containing significant solids, such as fruit or vegetable pieces, without damaging the pump or wetted products.

Full model name: DEPA Series L Food Line Pumps (Sanitary Polished).

Application: Hygienic units for dairies, breweries, pharmaceutical sterile processing, biotechnology, and high-purity cosmetics production lines.

Technical Specifications:
• Size range: DN 25 to DN 80 (1" to 3")
• Max. discharge pressure: 7.0 bar (101 psi)
• Max. flow rate: Up to 46 m3/h
• Surface finish quality: Ra ≤ 0.8 µm to 3.2 µm
• Max. solid size: 25.0 mm (size 80)
• Housing materials: Polished SS 304 / 316L.

Technical Documentation:
Operating and Installation Instructions
Technical Datasheet
DEPA Air-Operated Double Diaphragm Pumps Brochure
