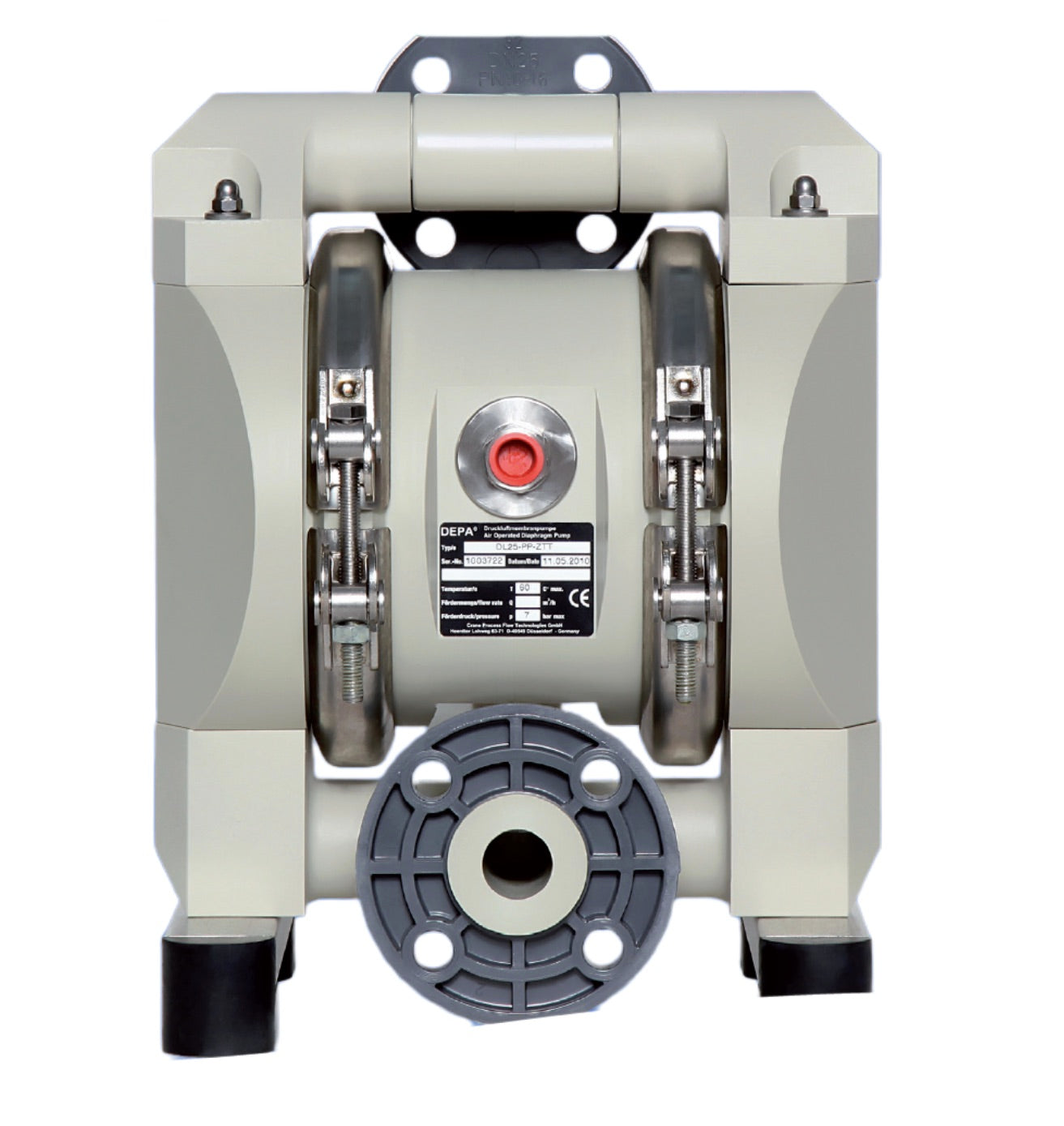

Depa Air-Operated Diaphragm Pump Series P
Technical Specifications
Product Details & Description
Tetromi provides the DEPA Series P non-metallic range, specifically designed for the problem-free conveyance of highly corrosive and abrasive products where metal wetted parts are prohibited. Series P pumps can be configured for galvanic coating and critical chemical processing. Full plastics units rovide uniform surface finishes that minimize flow loss and maximize abrasion resistance.
Full model name: DEPA Series P Non-Metallic Pumps (DL-PM, DL-PP, DH-TP).
Application: Galvanic industries, pickling lines, chemical residue transfer, and the handling of undiluted heavy acids and caustic media.
Technical Specifications:
• Size range: DN 15 to DN 80 (1/2" to 3")
• Max. operating pressure: 7.0 bar (101 psi)
• Max. flow rate: Up to 40 m3/h (PP) / 25 m3/h (PTFE)
• Dry suction lift: Up to 5.5 m
• Max. particle size: 12.0 mm
• Housing materials: Polypropylene (PM/PP/PL), PTFE (TP), Electrically conductive PTFE (TPL).
Technical Documentation:
Operating and Installation Instructions
Technical datasheet (Series P)
DEPA Air-Operated Double Diaphragm Pumps Brochure
