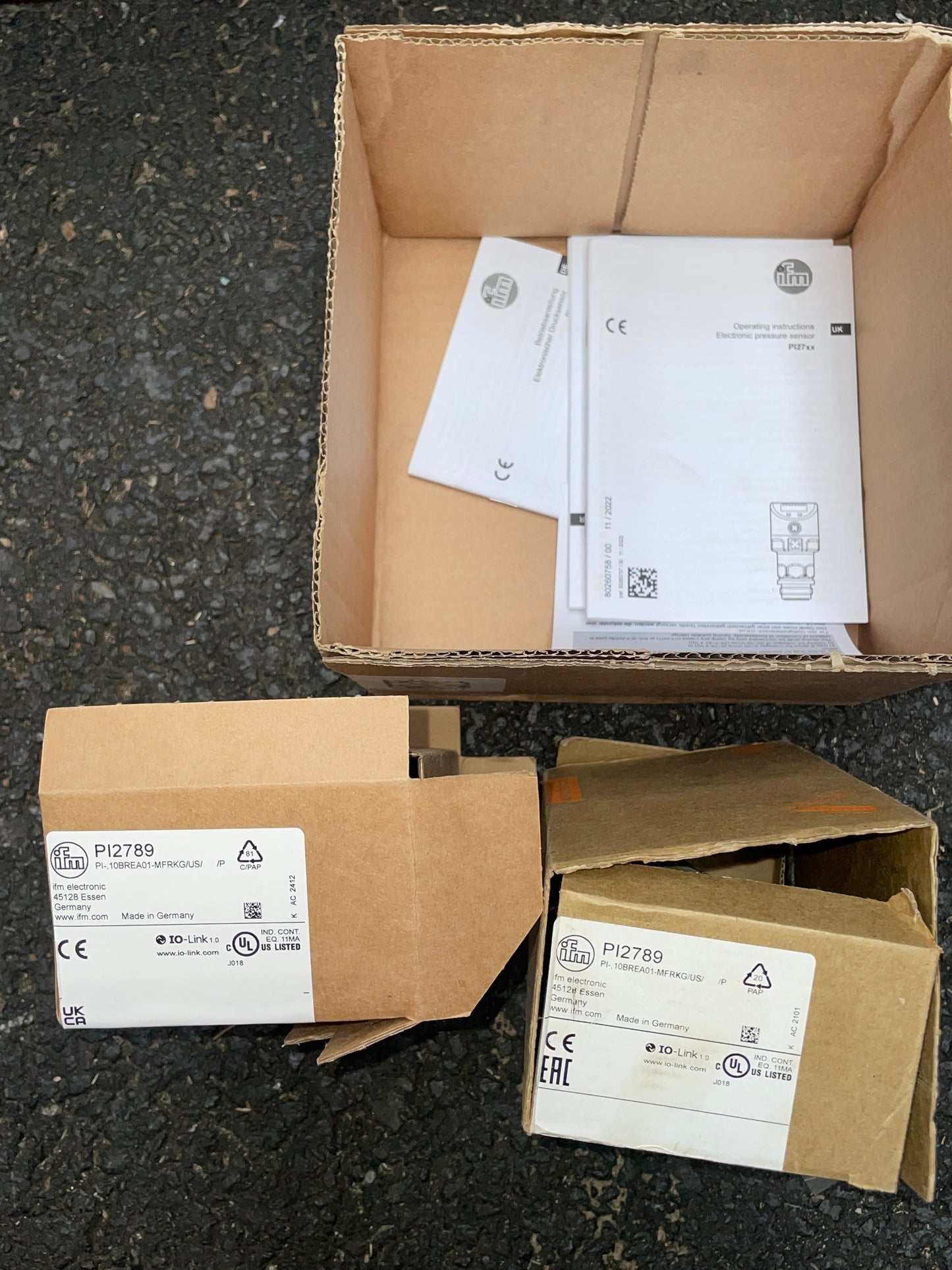

Ifm PI2789 Electronic Pressure Sensor

Part number: PI2789. This electronic pressure sensor features a flush-mount design and a 4-digit alphanumeric display, specifically engineered for hygienic applications in the food and beverage industry. It provides precise monitoring of relative pressure in viscous media and liquids containing suspended particles.

Full model name: PI-,10BREA01-MFRKG/US/ P

Application: Hygienic systems, food and beverage processing, viscous media monitoring, and gas or liquid pressure control.

Technical Specifications:
• Measuring Range: -5 to 100 mbar (-0.005 to 0.1 bar)
• Process Connection: G 1 external thread Aseptoflex Vario
• Output Signal: Programmable switching output and analogue output (4-20 mA / 20-4 mA)
• Operating Voltage: 18 to 32 V DC
• Medium Temperature: -25 to 125 degrees Celsius (145 degrees Celsius for maximum 1 hour)
• Pressure Rating: 4000 mbar
• Protection Rating: IP 67 / IP 68 / IP 69K
• Communication Interface: IO-Link
• Housing Material: Stainless steel 316L (1.4404)
