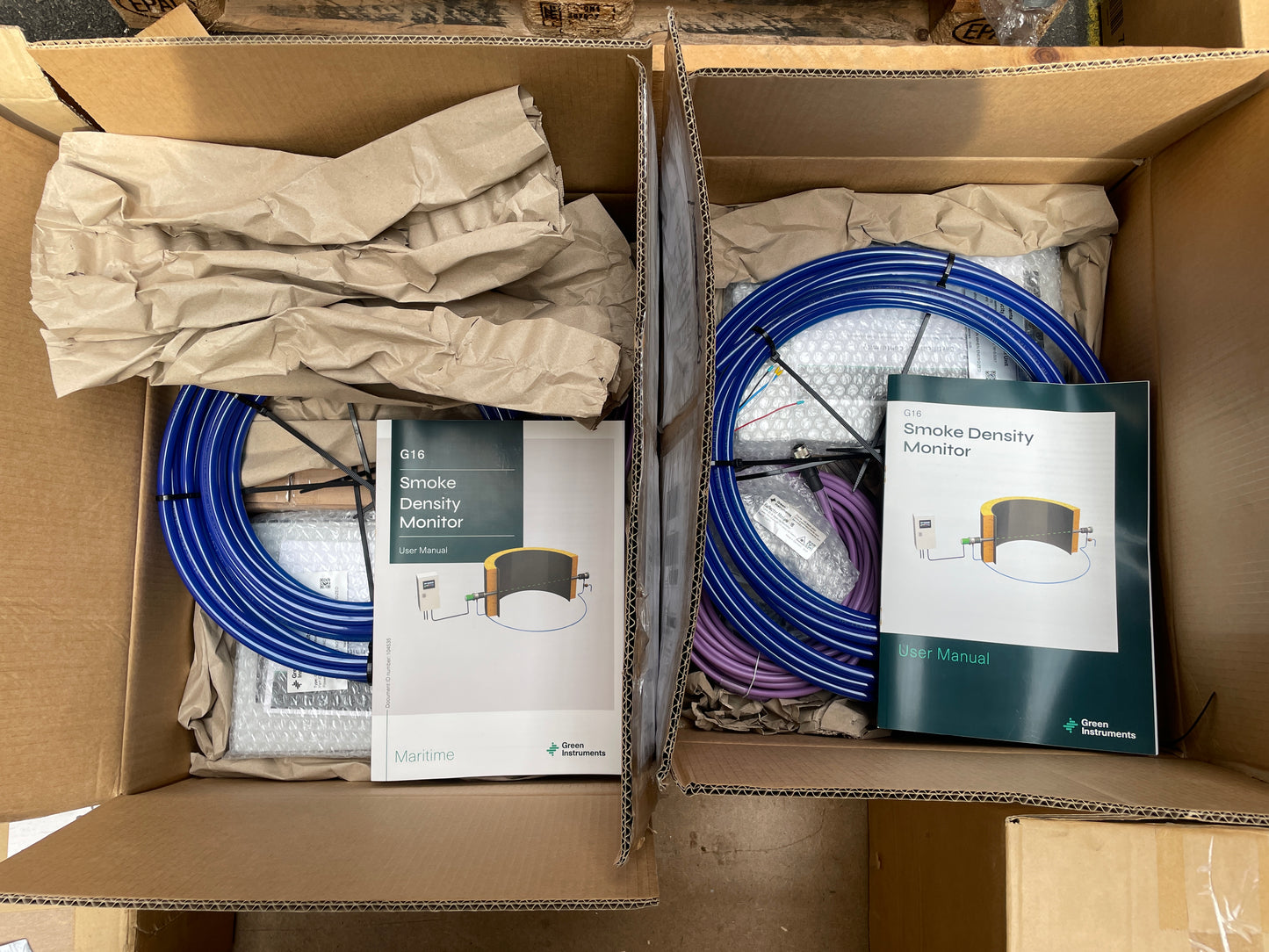

Green Instruments G16 Smoke Density Monitor

Part number: G16. The G16 Smoke Density Monitor is an advanced monitoring system designed to measure smoke and dust particles in exhaust stacks. It utilizes a double-pass light transmission principle with a green laser to provide precise combustion data for environmental compliance and legal reporting.

Full model name: Green Instruments G16 Smoke Density Monitor

Application: Marine vessels, diesel engines, boilers, incinerators, and industrial exhaust stacks for continuous emission monitoring.

Technical Specifications:
• Measuring Range: 0-100% Opacity
• Measuring Principle: Transmission dual-pass
• Power Supply: 20-30 VDC (Standard) or 100-240 VAC (Optional)
• Ambient Temperature: 0 to 55 Celsius
• Flue Gas Temperature: Up to 400 Celsius
• Communication: Modbus TCP/IP, 2 x 4-20 mA analog outputs, 4 x alarm relays
• Enclosure Rating: IP66 (Control Unit) / IP65 (Transceiver)
• Scanning Distance: 1 to 15 meters
