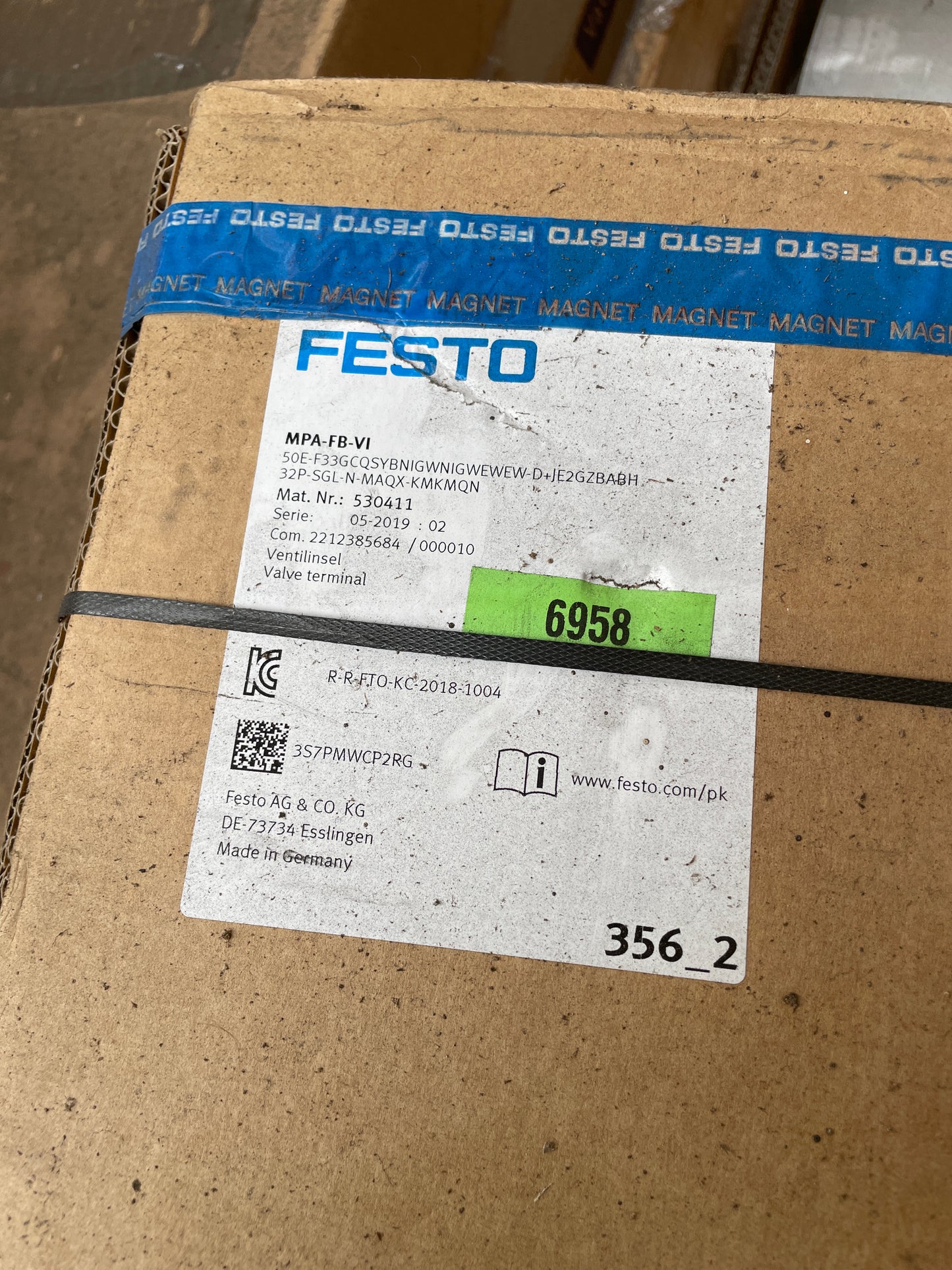

Festo MPA-FB-VI Valve Terminal 530411

Part number: MPA-FB-VI (530411) is a modular valve terminal designed for integration with the CPX electrical terminal system. This configuration features a fieldbus interface for serial communication and supports high-density pneumatic control in industrial automation environments.

Full model name: Festo MPA-FB-VI Valve Terminal (Mat. Nr. 530411)

Application: Used in manufacturing and process automation for controlling pneumatic actuators, vacuum systems, and pressure regulation via fieldbus or Ethernet protocols.

Technical Specifications:
• Valve Terminal Type: 32 (MPA-S)
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 3 to 8 bar
• Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
• Electrical Control: Fieldbus via CPX terminal
• Max Solenoid Coils: Up to 128 (configuration dependent)
• Protection Class: IP65 / IP67
• Material: Die-cast aluminum housing with nitrile rubber seals
