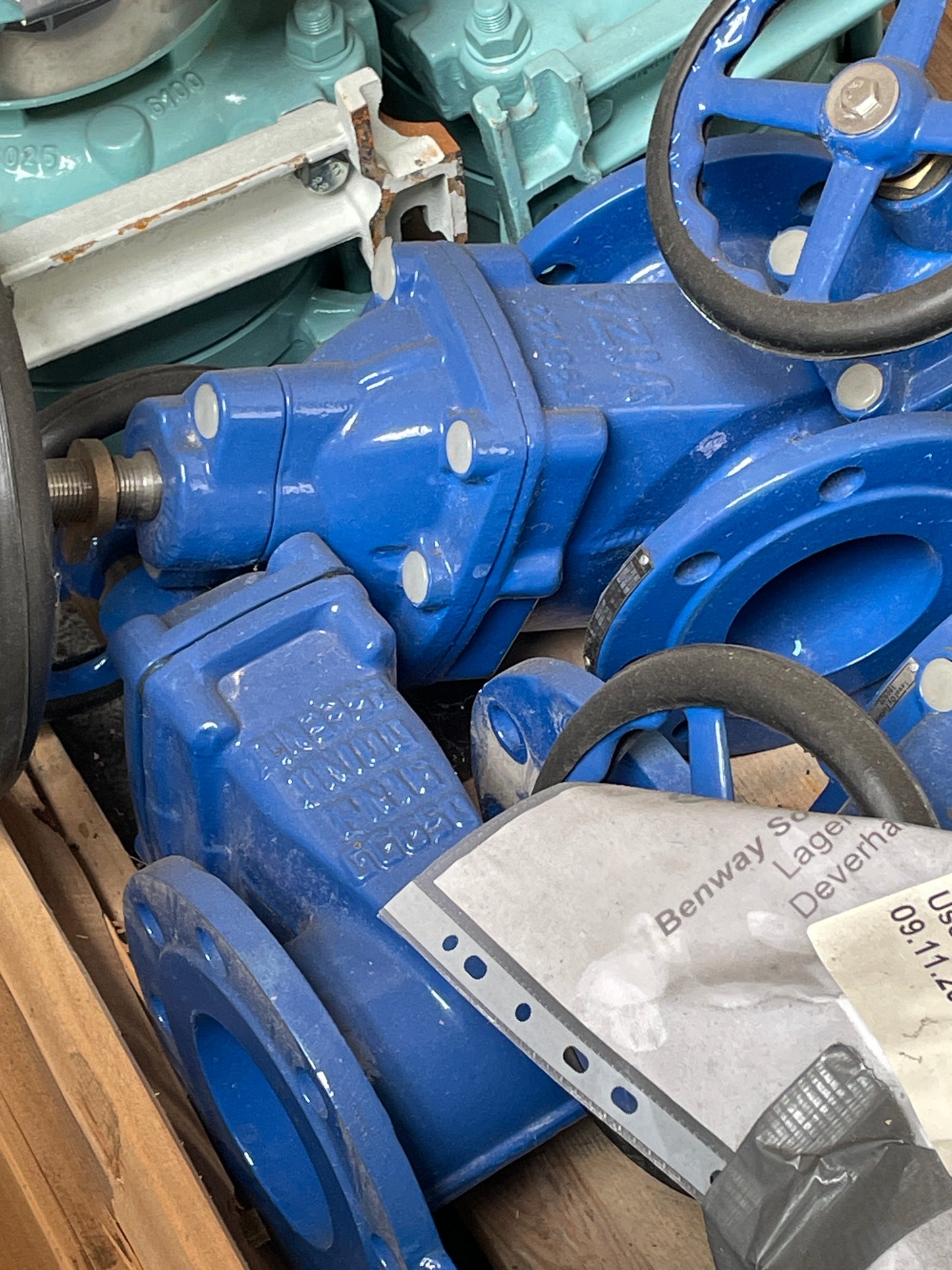

End Armaturen DIN3352 DN100 PN16 GGG50 Resilient Seated Gate Valve

Part number: DIN3352 DN100 PN16 GGG50. This resilient seated gate valve is designed for reliable isolation in water supply, treatment, and industrial fluid transportation systems.

Full model name: End Armaturen GVE-GGG-EPDM-100 Resilient Seated Gate Valve

Application: Suitable for water treatment, municipal projects, civil construction, and non-aggressive neutral liquid transportation.

Technical Specifications:
• Nominal Diameter: DN100 (4 Inch)
• Nominal Pressure: PN16 (16 bar)
• Body Material: Ductile Iron GGG50 (EN-GJS-500-7)
• Seal Material: EPDM
• Design Standard: DIN 3352
• Connection Type: Flanged (EN 1092-2)
• Face-to-Face Length: DIN 3202 F4 (Series 14)
• Temperature Range: 0 to +80°C
• Test Pressure: Body 24 bar / Seat 17.6 bar
