EDUR 29473, LBU 602 E162L / BG160 Series Two Phase Centrifugal Pump (Without Motor)

Supplier Part Number: 29473, LBU 602 E162L / BG160
Application Reference Number: 6624459

An EDUR two-phase centrifugal pump, part number 29473, LBU 602 E162L / BG160, designed for pumping liquid and gas mixtures. This pump can handle gas content up to 30% and is built for industrial applications.

This specialised pump is a core component for Dissolved Air Flotation (DAF) systems in wastewater treatment. It simplifies the DAF process by eliminating the need for an external compressor or air saturation tank, leading to reduced energy consumption and maintenance.

LBU-Series specifications

Flow rate: max. 60 m³/h
Operating pressure: max. 40 bar
Gas contents: up to 30 %
Head: max. 250 m
Temperature: -50 °C to 140 °C
Viscosity: up to 115 mm²/s

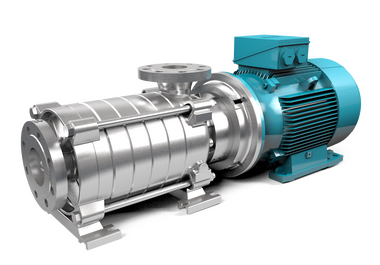

*Images are for display purposes only. Actual products may vary
