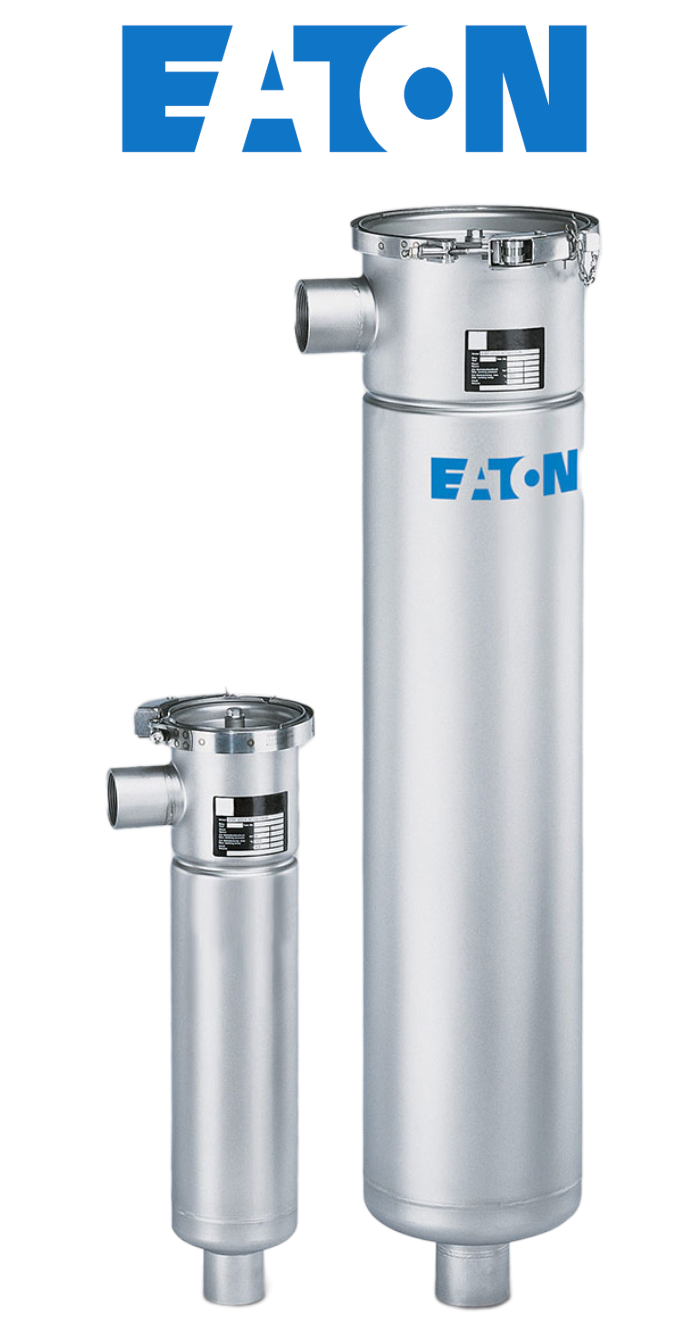

Eaton ECOLINE Bag Filter Housing, Model EBF-0101-AC06-050B

Supplier Part Number: EBF-0101-AC06-050B

Application Reference Number: 33F610016

A bag filter housing from the Eaton ECOLINE product family.

This filter housing is used in a wide range of industrial applications, including water treatment, chemical processing, and food and beverage manufacturing. It is a versatile component for installing, upgrading, or repairing liquid filtration systems.

Eaton brochure for the item.

General Specifications:

• Product Name: Eaton ECOLINE Single Bag Filter Housing
• Catalog Number: F630244
• Model Code: EBF-0102-AC06-050B
• Product Length/Depth: 300 mm
• Product Height: 954 mm
• Product Width: 300 mm
• Product Weight: 11 kg
• Certifications: ISO 9001

Product Specifications:

• Closure Type: V-Clamp
• Code Stamp: None
• Filter Bag Size: 02: Dia 7 x 32"L (180 x 810mm)
• Housing Volume: 27 l
• Number of Filter Bags: 1
• Design Pressure - Max: 6 bar
• Connection Type (Inlet/Outlet): BSP female
• Connection Size (Inlet/Outlet): DN50
• Material: SS 316 Ti (1.4571) Stainless Steel 316 Ti (1.4571)

Images are for illustrative purpose only, actual products may vary.
