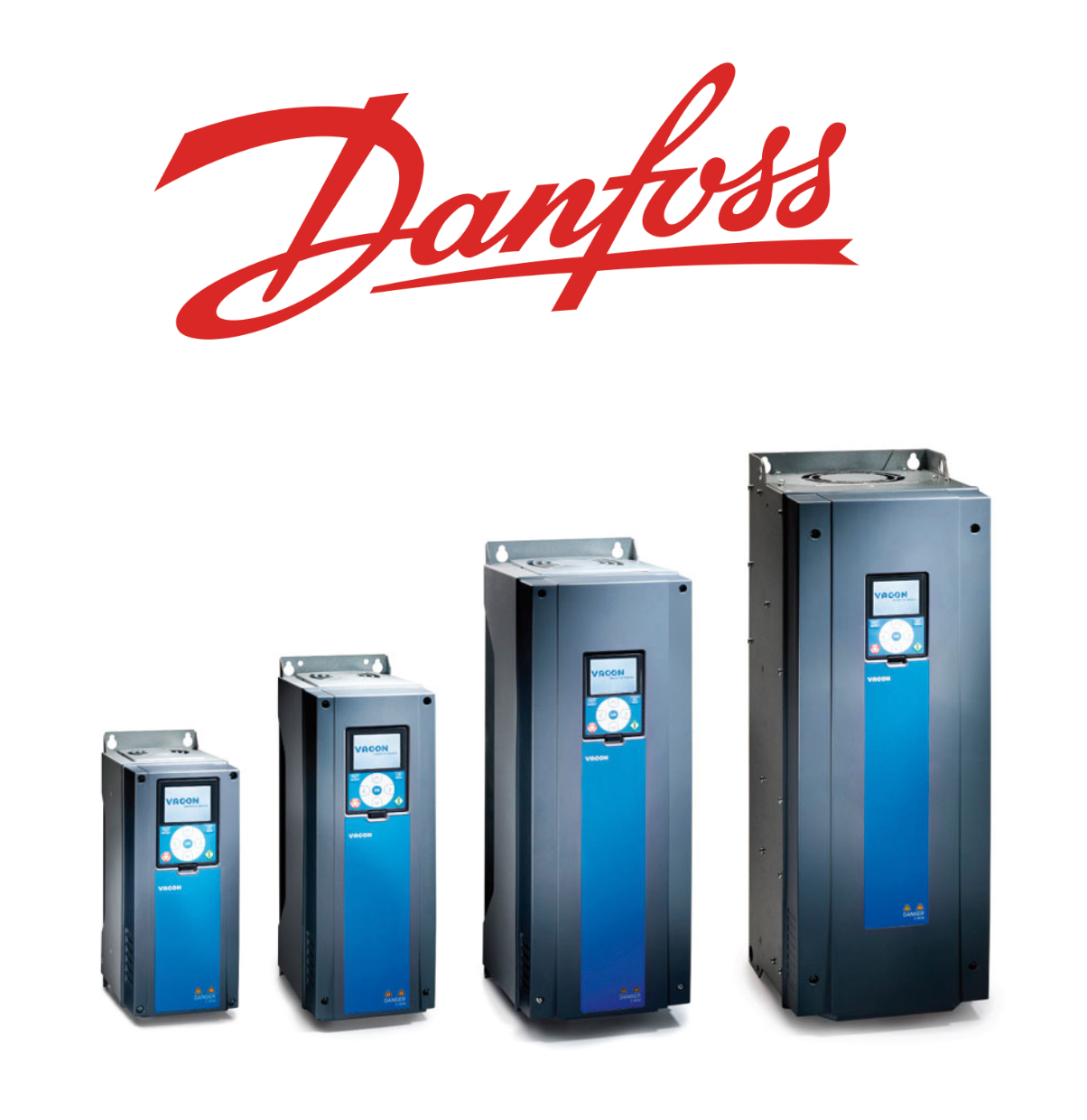

Danfoss VACON VACON0100-3L-0031-5-FLOW+IP54 Frequency Converter

Supplier Part Number: VACON0100-3L-0031-5-FLOW+IP54

New item: OEM component in perfect condition.
Ships Immediately: In stock, ready for immediate delivery.
Competitive Surplus Price: Limited-time offer while stock lasts.
Fast, Reliable Delivery: Dispatched directly from Germany.
Supplier's Description Match Guarantee: No surprises.

A 15 kW frequency converter (Variable Speed Drive) from the VACON 100 FLOW series. Part number VACON0100-3L-0031-5-FLOW+IP54, this model operates on 380-500 V power. It is rated at 31 A and has an IP54 rating for protection against dust and splashing water.

Part Number: VACON0100-3L-0031-5-FLOW+IP54

Series: VACON 100 FLOW

Manufacturer: VACON

Rated Power: 15 kW / 20 HP

Nominal Current (Amps): 31 A

Input Voltage: 380-500 V

Input Phase: 3-Phase

Input Frequency: 50-60 Hz

Output Voltage: 0-Input Voltage

Output Phase: Three Phase

Output Frequency: 0-320 Hz

Enclosure Rating: IP54

Frame Size: MR5

Dimensions (W x H x D): 144mm Wide x 419mm High x 214mm Deep

Weight: 10 kg

Application: Dedicated for pumps, fans, and compressors.

Overload Capacity: 110% x 60 seconds every 10 minutes

Control Method: Open loop vector control

Keypad: Integrated Graphical Keypad

EMC Filter: Integrated (Category C2)

DC Choke: Integrated

Braking Chopper: None

Ambient Operating Temperature: -10°C to +40°C

Altitude: Up to 1000 m (3280 ft) without derating

Analog Inputs: 2 (Voltage/Current)

Digital Inputs: 6

Analog Outputs: 1 (Current)

Relay Outputs: 3

Standard Communication: Modbus RTU (RS485), Modbus TCP (Ethernet)

Approvals: SIL3, DNV-GL, BV, LR, ABS, RINA

Optimize pump and fan performance in industrial and marine applications, for example Evac application 6622578. Its dedicated functions, like multi-pump control, soft filling of pipes, and dry-run protection, are designed to address common problems and reduce maintenance costs in fluid handling and ventilation systems.

Images are for illustrative purpose only, actual products may vary.
