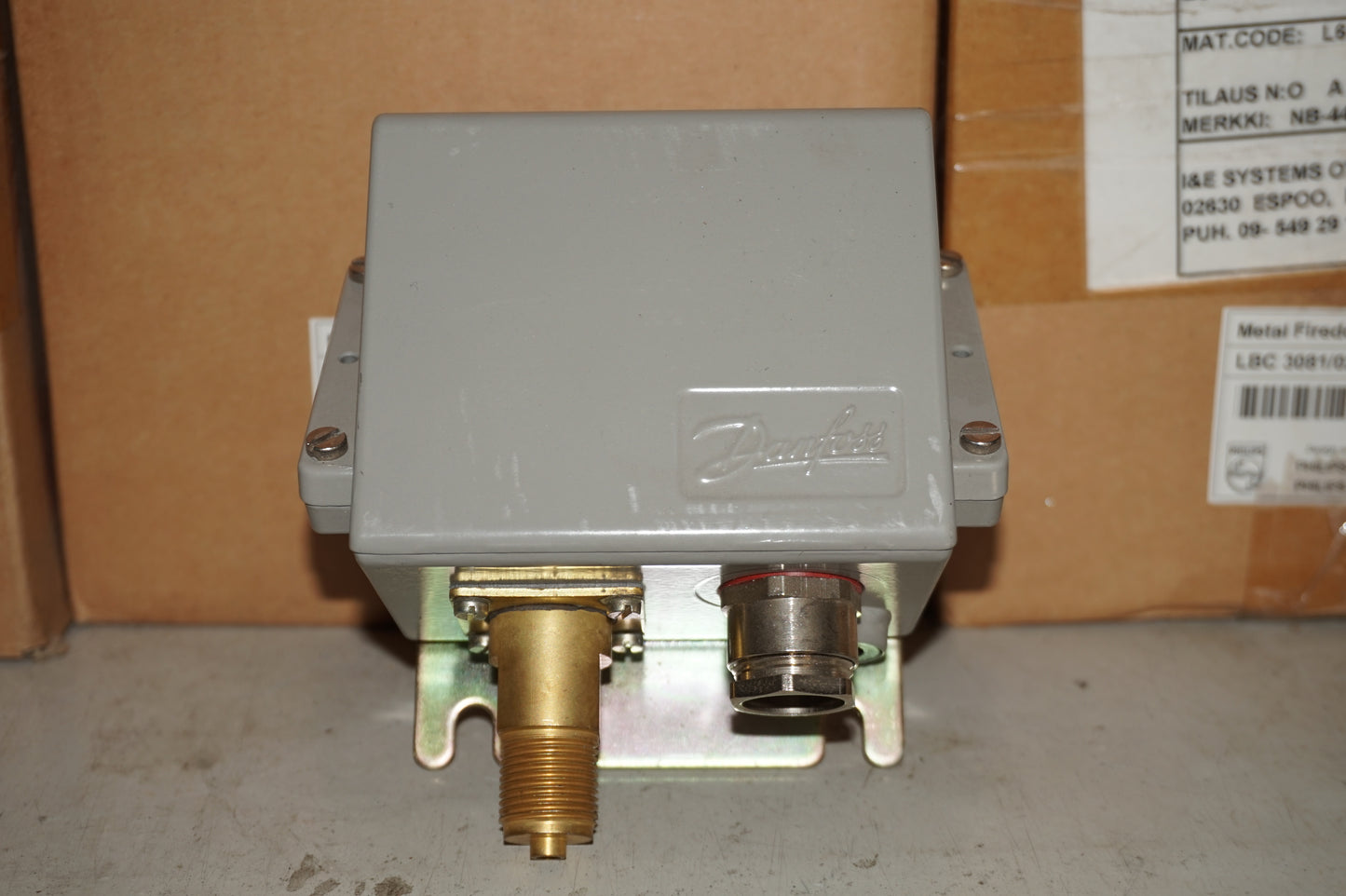

Danfoss 060-3101 305 KPS 37 Pressure Switch

Part number: 060-3101 305. This KPS 37 series pressure switch is a robust electromechanical control designed for monitoring and alarm systems in demanding industrial and marine environments.

Full model name: Danfoss KPS 37 Pressure Switch 060-3101 305

Application: Suitable for use in diesel plants, compressors, power stations, and marine alarm systems where resistance to shock and vibration is required.

Technical Specifications:
• Regulation Range: 6 to 18 bar
• Differential: 0.85 to 2.5 bar (Adjustable)
• Maximum Working Pressure: 22 bar
• Pressure Connection: G 3/8
• Enclosure Rating: IP67
• Contact Function: SPDT (Single Pole Double Throw)
• Contact Material: Silver or Gold-plated silver
• Ambient Temperature Range: -40 to 70 degrees Celsius
