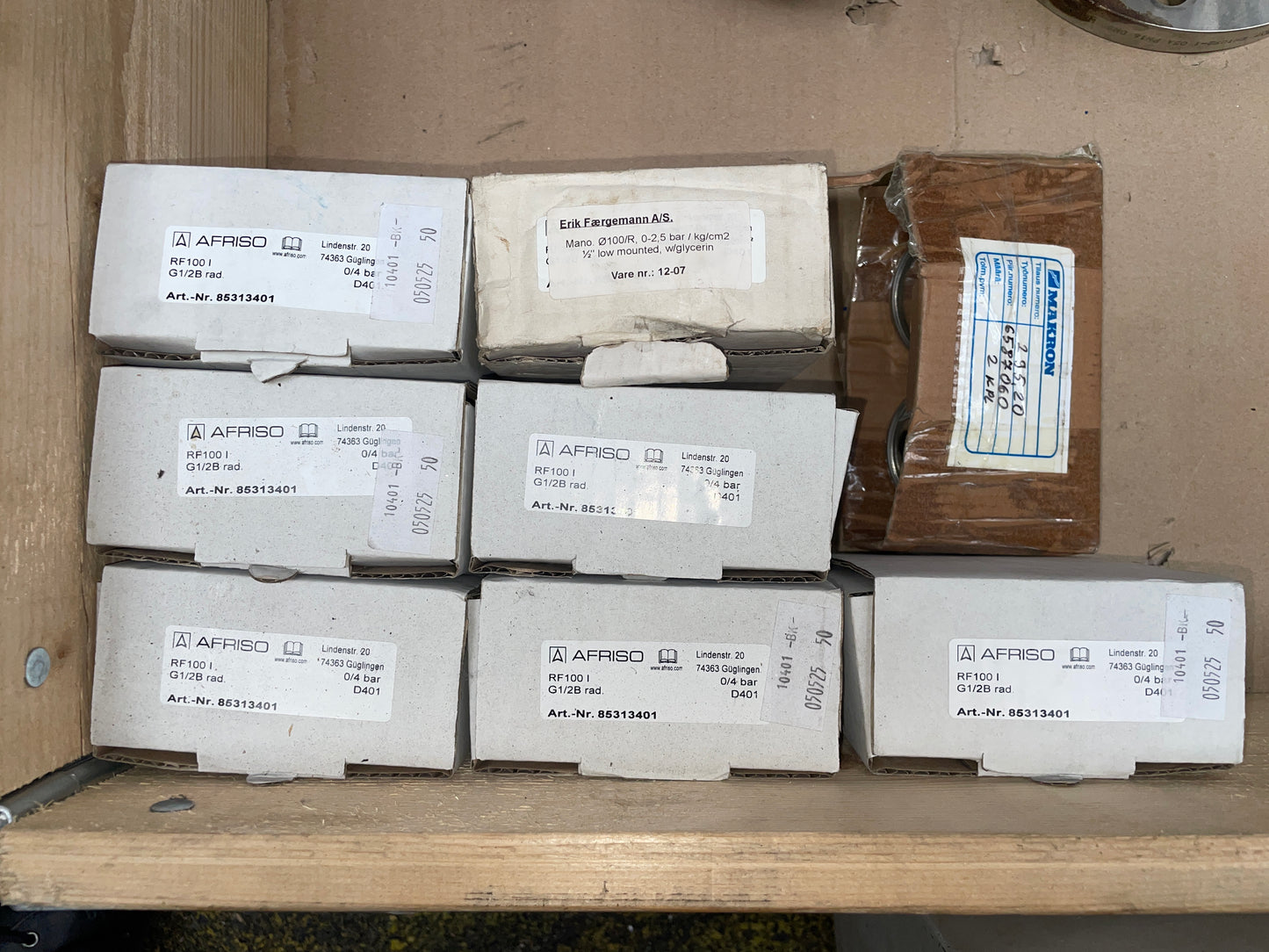

Afriso RF100 I Bourdon Tube Pressure Gauge
Technical Specifications
Manufacturer:Afriso
Part Number:RF100 I
Condition:
Used
Product Details & Description
Part number: RF100 I Bourdon tube pressure gauge designed for industrial applications requiring precise monitoring of gaseous and liquid media. This instrument features a robust 100 mm nominal size dial and a radial bottom connection for direct pipe mounting.
Full model name: Afriso RF100 I G1/2B rad.
Application: Used in heating systems, industrial circulation circuits, hydraulic installations, and boiler monitoring for media that are not highly viscous or crystallizing.
Technical Specifications:
• Nominal Size: 100 mm
• Connection: G1/2B radial (bottom connection)
• Accuracy Class: 1.0 or 1.6 (EN 837-1/6)
• Measuring Element: Bourdon tube, copper alloy
• Housing Material: Stainless steel 304 or impact-resistant plastic (model dependent)
• Window: Instrument glass or clip-in plastic
• Operating Temperature: Medium max. 60 °C; Ambient -20/+60 °C
• Degree of Protection: IP 54 (EN 60529)
Technical Documentation:
Verify Technical Documentation via Google
Full model name: Afriso RF100 I G1/2B rad.
Application: Used in heating systems, industrial circulation circuits, hydraulic installations, and boiler monitoring for media that are not highly viscous or crystallizing.
Technical Specifications:
• Nominal Size: 100 mm
• Connection: G1/2B radial (bottom connection)
• Accuracy Class: 1.0 or 1.6 (EN 837-1/6)
• Measuring Element: Bourdon tube, copper alloy
• Housing Material: Stainless steel 304 or impact-resistant plastic (model dependent)
• Window: Instrument glass or clip-in plastic
• Operating Temperature: Medium max. 60 °C; Ambient -20/+60 °C
• Degree of Protection: IP 54 (EN 60529)
Technical Documentation:
Verify Technical Documentation via Google
Shipping & Logistics
Ships From:Germany
Ships To:Worldwide, excluding sanctioned regions.
Availability:
Ready for immediate worldwide delivery.
