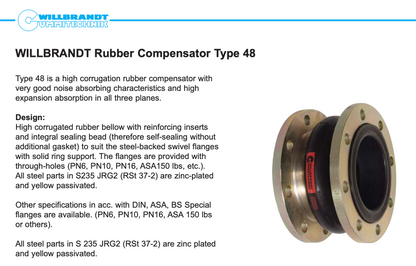

Willbrandt Type 48 Rubber Expansion Joint, DN200, 2000001220

Supplier Part Number: 2000001220

Application Reference Number: 6617783

New item: OEM component in perfect condition.
Ships Immediately: In stock, ready for immediate delivery.
Competitive Surplus Price: Limited-time offer while stock lasts.
Fast, Reliable Delivery: Dispatched directly from Germany.
Supplier's Description Match Guarantee: No surprises.

A rubber expansion joint with part number 2000001220. This joint has a nominal diameter of DN200 and is designed to absorb thermal expansion, contraction, vibration, and movement in a pipeline.

This expansion joint is a crucial component in industrial piping systems that handle fluids at varying temperatures or are subjected to vibration from machinery. It is used in HVAC systems, water treatment plants, and industrial process pipelines to prevent stress on the piping.

Bellow

• Dimension: 160 mm

Flange PN 10*2

• ØA WF*1: 62400 mm²

• ØD: 340 mm

• ØLK: 295 mm

• Ød: 23 mm

• n (holes): 8

• s (thickness): 20 mm

• ØC: 261 mm

Movement absorption*3

• Axial +: 45 mm

• Axial -: 35 mm

• Lateral ±: 25 mm

• Angular ±: 20°

Weight

• Weight: 20.7 kg

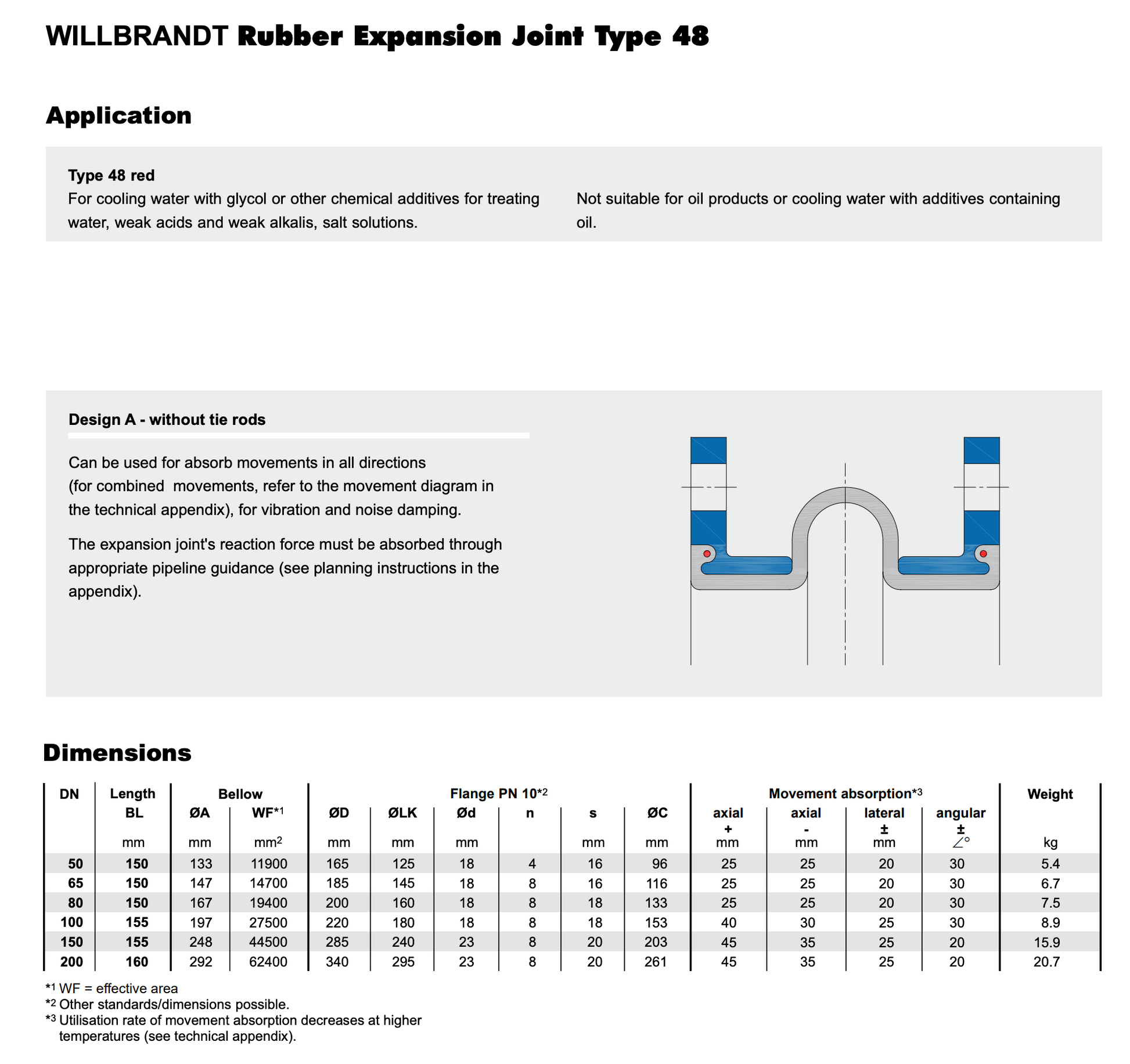

Manufacturer tech sheet here.

Images are for illustrative purpose only, actual products may vary.
