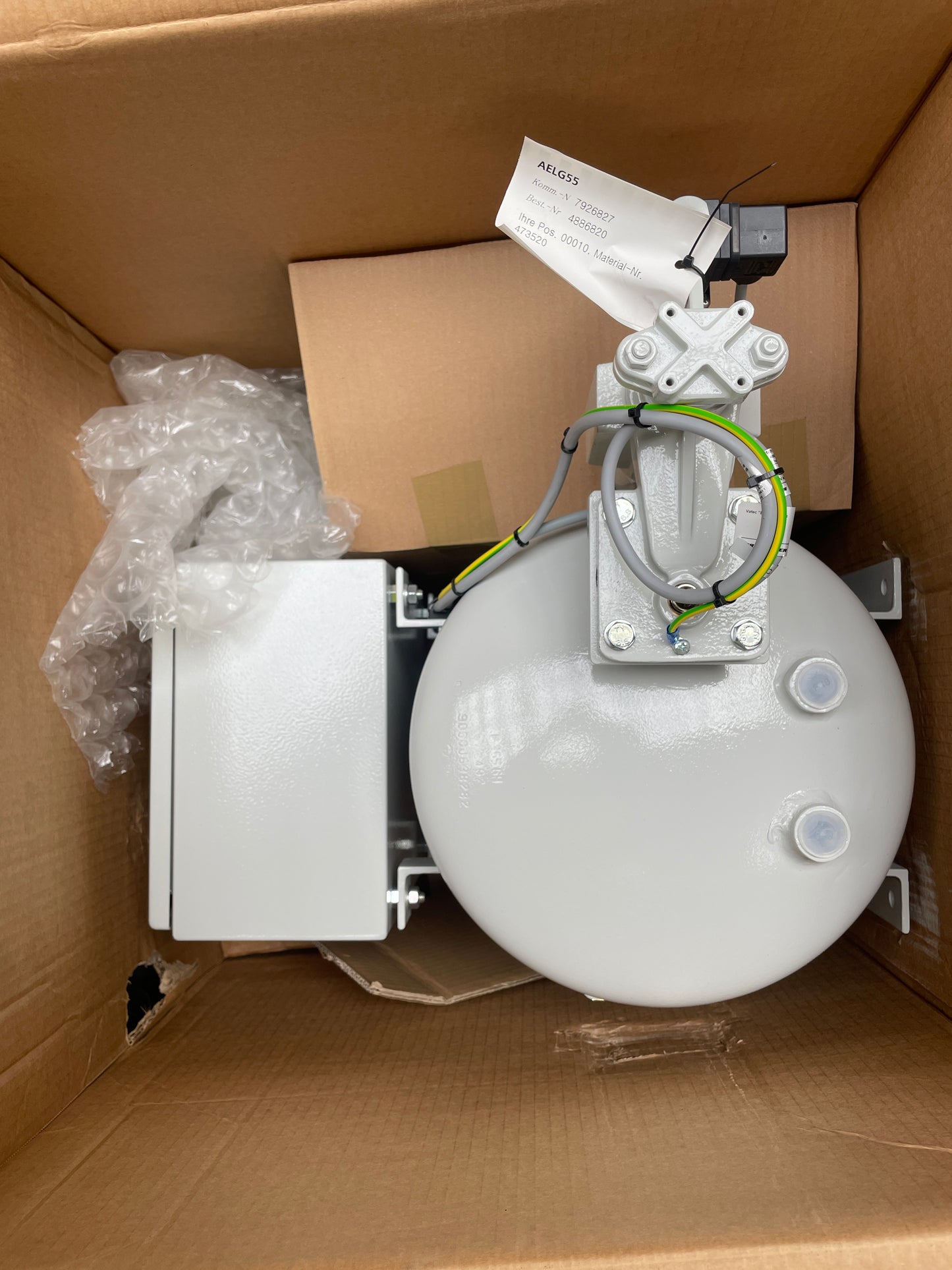

Vatec Mechanical Engineering AELG55 Automatic Priming Unit

Part number: AELG55. This level-controlled automatic priming unit is designed for the pre-evacuation and re-evacuation of centrifugal pumps, ensuring efficient operation in vacuum and pump technology applications.

Full model name: Vatec Maschinenbau AELG55 Niveaugesteuerter Ansaugautomat

Application: Marine engineering, shipbuilding, and industrial centrifugal pump systems for automated priming and evacuation.

Technical Specifications:
• Capacity: 700 Nl/min
• Air Consumption: 190 l/min at 6 bar
• Operating Voltage: 230V 50/60Hz
• Power Consumption: 21 VA
• Protection Class: IP65 (Aspirator) / IP66 (Control Cabinet)
• Nominal Pressure: PN10
• Required Compressed Air: 5 - 7 bar
• Housing Material: Bronze (G-CuSn10)
• Inner Parts Material: Stainless Steel (1.4571)
• Seal Material: NBR70
• Weight: Approximately 28 kg
