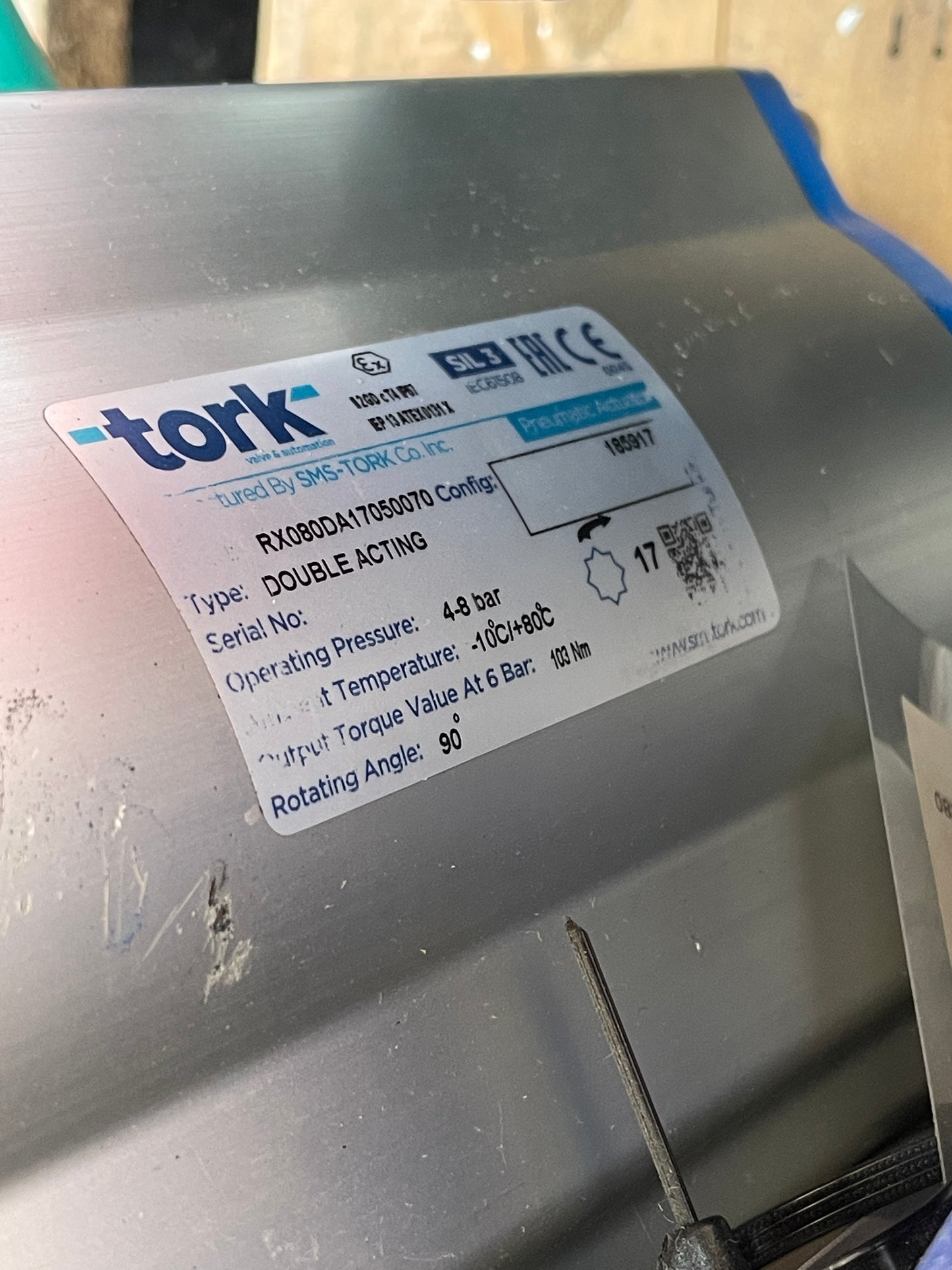

Tork RX080DA17050070 Double Acting Pneumatic Actuator

Part number: RX080DA17050070. This double acting pneumatic actuator is designed for the automated control of rotating valves, such as ball and butterfly valves, using a rack and pinion mechanism.

Full model name: Tork RX080DA17050070 Double Acting Pneumatic Actuator

Application: Used in industrial fluid control systems for the remote operation of 90-degree rotation valves in chemical processing, water treatment, and manufacturing sectors.

Technical Specifications:
• Operation Type: Double Acting
• Output Torque: 103 Nm at 6 bar supply pressure
• Operating Pressure: 4 to 8 bar
• Rotation Angle: 90 degrees (adjustable ± 5 degrees)
• Temperature Range: -10C to +80C
• Valve Mounting: ISO 5211 (F05/F07 flange)
• Accessory Interface: VDI/VDE 3845 Namur standard for solenoid valves and limit switch boxes
• Body Material: Extruded aluminum with corrosion protection
