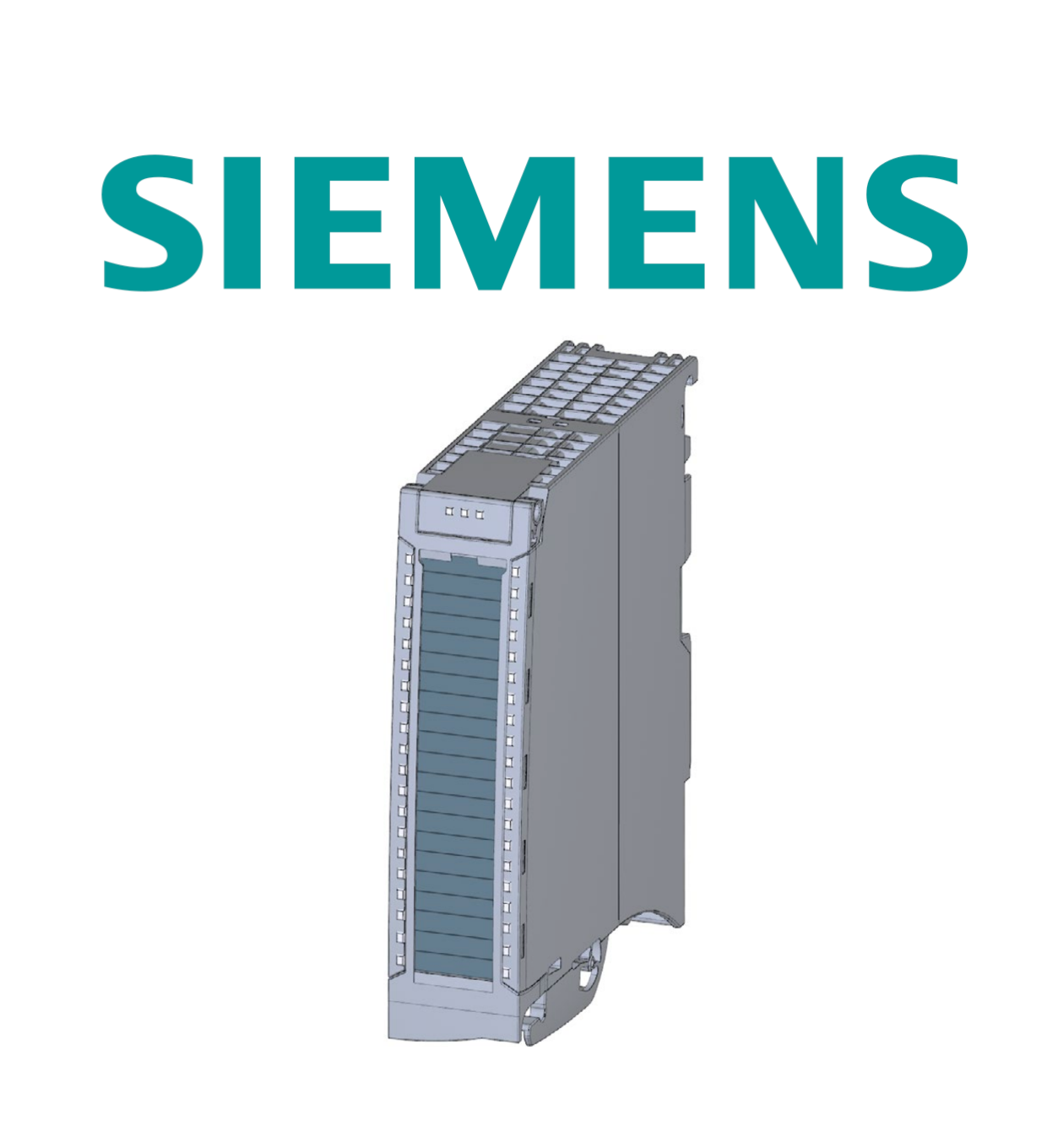

Siemens SIMATIC S7-1500 6ES7522-1BL01-0AB0 Digital Output Module DQ 32x24VDC/0.5A HF

Supplier Part Number: 6ES7522-1BL01-0AB0

New item: OEM component in perfect condition.
Ships Immediately: In stock, ready for immediate delivery.
Competitive Surplus Price: Limited-time offer while stock lasts.
Fast, Reliable Delivery: Dispatched directly from Germany.
Supplier's Description Match Guarantee: No surprises.

A high-feature (HF) digital output module from the Siemens SIMATIC S7-1500/ET 200MP automation system. This module, part number 6ES7522-1BL01-0AB0, provides 32 digital output channels in groups of 8. It features single-channel diagnostics, substitute values, and a switching cycle counter for connected actuators. It is certified for safety-oriented shutdown up to SIL2.

Manufacturer brochure for the item.

Product Family: SIMATIC S7-1500

Product Module Group: SM 522 digital output modules

Product Type Designation: DQ 32x24VDC/0.5A HF

Product Lifecycle Status: PM300: Active Product

EAN: 4047623405924

UPC: 804766234446

Commodity Code: 85389091

Country of Origin: Germany

Weight (Module Only, approx.): 280 g

Net Weight (for logistics): 0.323 Kg

Packaging Dimensions (L x W x H): 15.40 x 15.10 x 4.70 cm

Module Feature Level: High Feature (HF)

Isochronous Mode: Yes

Integrated Operating Cycle Counter: Yes

MSO (Media-Specific Output): Yes

Prioritized Startup: Yes

I&M Data: Yes; I&M0 to I&M3

Hardware Functional Status: From FS02

Firmware Version: V1.1.0

Rated Supply Voltage (DC): 24 V

Permissible Supply Voltage Range (DC): 19.2 V to 28.8 V

Supply Current Consumption, max: 60 mA

Power Loss, typ: 3.5 W

Power Available from Backplane Bus: 1.1 W

Number of Digital Outputs: 32

Type of Digital Output: Transistor

Output Type: Current-sourcing / P-switching (PNP)

Output Voltage for Signal "1", min: L+ (-0.8 V)

Rated Output Current (Signal "1"): 0.5 A

Residual Output Current (Signal "0"), max: 0.5 mA

Total Current of Outputs, max per Channel: 0.5 A

Total Current of Outputs, max per Group: 4 A (subject to derating based on ambient temperature and installation orientation)

Total Current of Outputs, max per Module: 16 A

Load Resistance Range: 48 $\Omega$ to 12 k$\Omega$

Switching Capacity, Lamp Load, max: 5 W

Output Delay with Resistive Load, "0" to "1", max: 100 $\mu$s

Output Delay with Resistive Load, "1" to "0", max: 500 $\mu$s

Switching Frequency, with Resistive Load, max: 100 Hz

Switching Frequency, with Inductive Load, max: 0.5 Hz

Switching Frequency, on Lamp Load, max: 10 Hz

Parallel Switching of Outputs (for Logic Links): Yes

Parallel Switching of Outputs (for Uprating): No

Parallel Switching of Outputs (for Redundant Control): Yes

Maximum Cable Length, Shielded: 1 000 m

Maximum Cable Length, Unshielded: 600 m

Short-Circuit Protection: Yes; Clocked electronically

Short-Circuit Protection, Response Threshold, typ: 1 A

Limitation of Inductive Shutdown Voltage: L+ (-53 V)

Reverse Polarity Protection: Yes; through internal protection with 7 A per group

Configurable Diagnostics: Yes (Single-Channel)

Diagnostic Functions: Monitoring the supply voltage, Wire-break, Short-circuit to ground, Group error

Diagnostic Alarm Generation: Yes

Diagnostic Indication LED (PWR): Yes; Green LED for supply voltage

Diagnostic Indication LED (Channel Status): Yes; Red LED for channel diagnostics

Diagnostic Indication LED (Module Status): Yes; Red LED for ERROR/MAINT

Potential Separation: Between channels and backplane bus

Potential Separation (Channels): No separation between individual channels, but isolated in groups of 8

Isolation Tested With: 707 V DC (type test)

Dimensions (H x W x D): 147 mm x 35 mm x 129 mm

Mounting Type: DIN Rail / Backplane or rack mounting

Ingress Protection (IP) Rating: IP20

Altitude during Operation, max: 5 000 m

Ambient Temperature, Horizontal Installation: -30 °C to +60 °C

Ambient Temperature, Vertical Installation: -30 °C to +40 °C

Connect this module to actuators, solenoid valves, and indicator lights in industrial automation systems. Its advanced diagnostics and safety certifications make it a vital component for safety-critical machinery, process plants, and automotive manufacturing lines, for example Evac application 6598965.

Images are for illustrative purpose only, actual products may vary.
