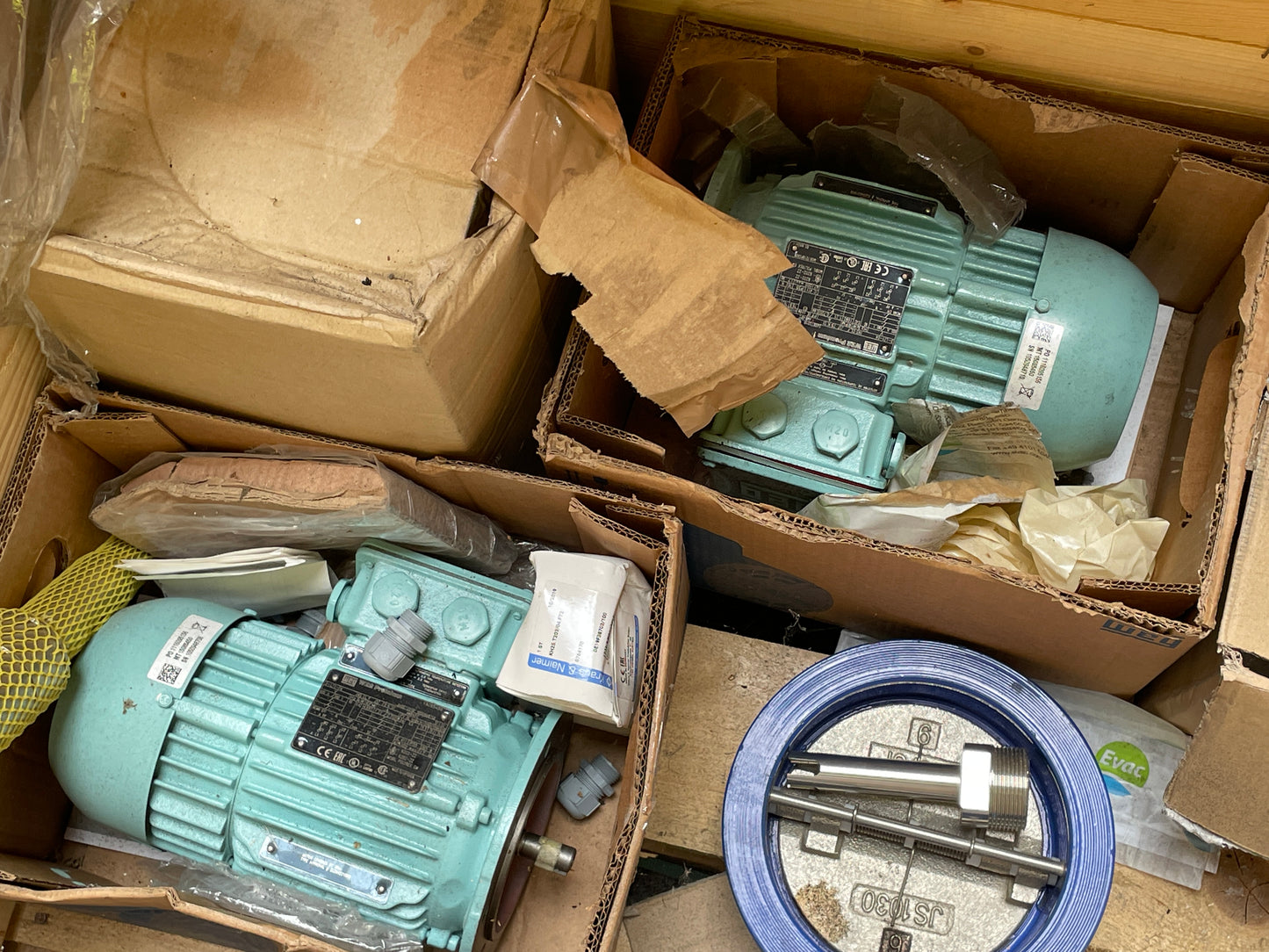

Siemens 1LA9063-4KA91-Z Squirrel Cage Motor
Technical Specifications
Manufacturer:Siemens
Part Number:1LA9063-4KA91-Z
Condition:
Used
Product Details & Description
Part number: 1LA9063-4KA91-Z. This Siemens 1LA9 series unit is a low-voltage squirrel cage induction motor designed for industrial drive applications requiring a compact 63M frame size and aluminum enclosure.
Full model name: Siemens 1LA9063-4KA91-Z Squirrel Cage Motor
Application: Industrial machinery, fan drives, small pump systems, and conveyor automation requiring 690V 60Hz power supply.
Technical Specifications:
• Frame Size: 63M
• Power Output: 0.18 kW
• Voltage: 690 V AC
• Frequency: 60 Hz
• Rated Speed: 1705 RPM
• Current Rating: 0.36 A
• Power Factor: 0.63 cos phi
• Protection Rating: IP55
• Thermal Class: 155 (F)
• Mounting Type: IM B5 (Flange Mounted)
• Ambient Temperature: -20C to +45C
Technical Documentation:
Verify Technical Documentation via Google
Full model name: Siemens 1LA9063-4KA91-Z Squirrel Cage Motor
Application: Industrial machinery, fan drives, small pump systems, and conveyor automation requiring 690V 60Hz power supply.
Technical Specifications:
• Frame Size: 63M
• Power Output: 0.18 kW
• Voltage: 690 V AC
• Frequency: 60 Hz
• Rated Speed: 1705 RPM
• Current Rating: 0.36 A
• Power Factor: 0.63 cos phi
• Protection Rating: IP55
• Thermal Class: 155 (F)
• Mounting Type: IM B5 (Flange Mounted)
• Ambient Temperature: -20C to +45C
Technical Documentation:
Verify Technical Documentation via Google
