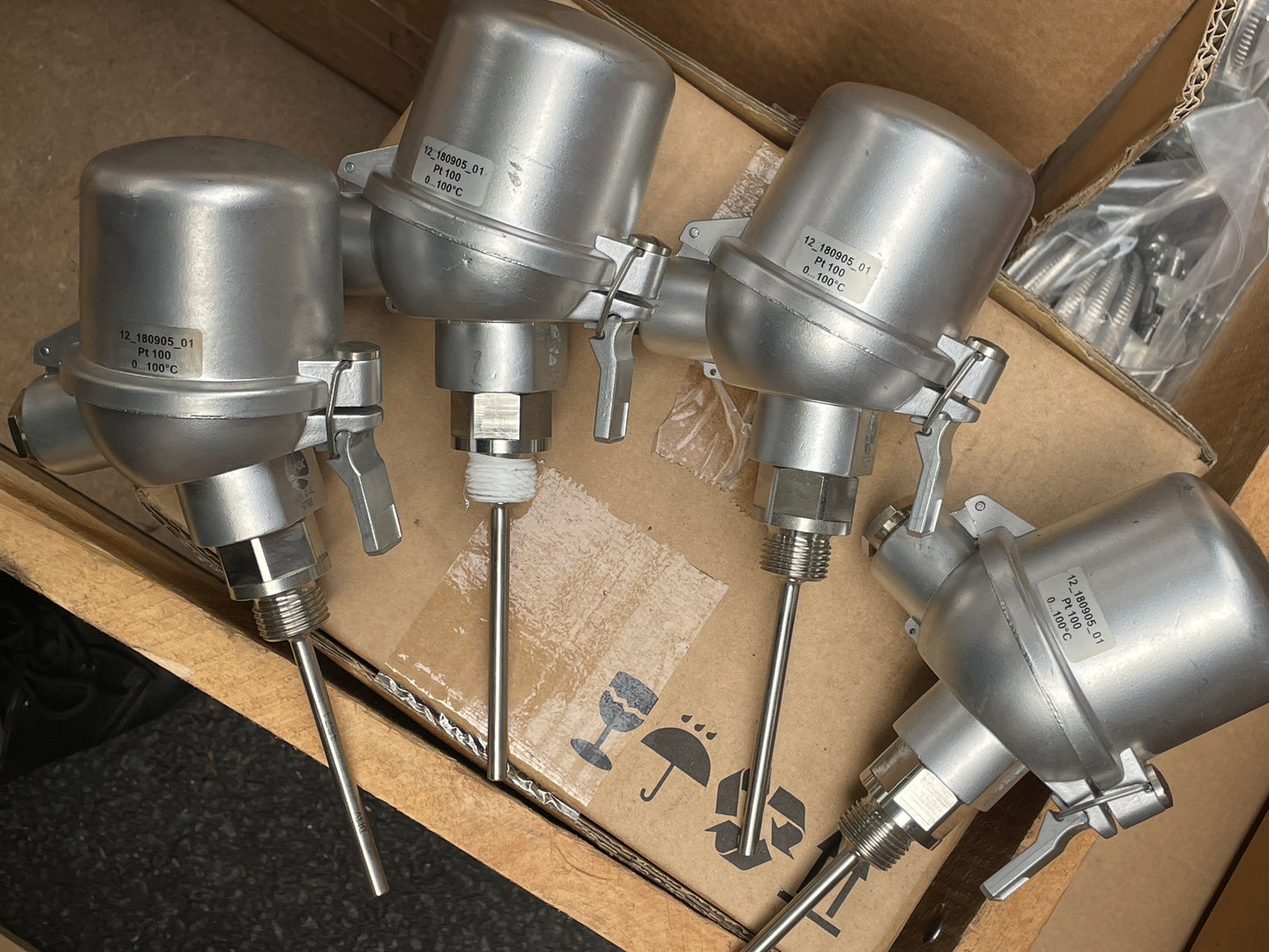

Seneca PT100 Temperature Probe

Part number: PT100. This Seneca temperature probe is a platinum resistance thermometer designed for precise thermal monitoring in industrial process environments. It is specifically configured for Evac vacuum systems to measure temperatures within a 0 to 100 C range.

Full model name: Seneca PT100 Industrial Temperature Probe

Application: Vacuum systems, water treatment, and industrial process monitoring.

Technical Specifications:
• Sensor Type: PT100 Platinum Resistance (RTD)
• Measurement Range: 0 to 100 C
• Wiring Configuration: 3-wire (IEC 751)
• Material: AISI 316 Stainless Steel contact parts
• Connection: M20 x 1.5 electrical connection
• Process Interface: 1/2 inch G.M.

Technical Documentation:
Verify Technical Documentation via Google
