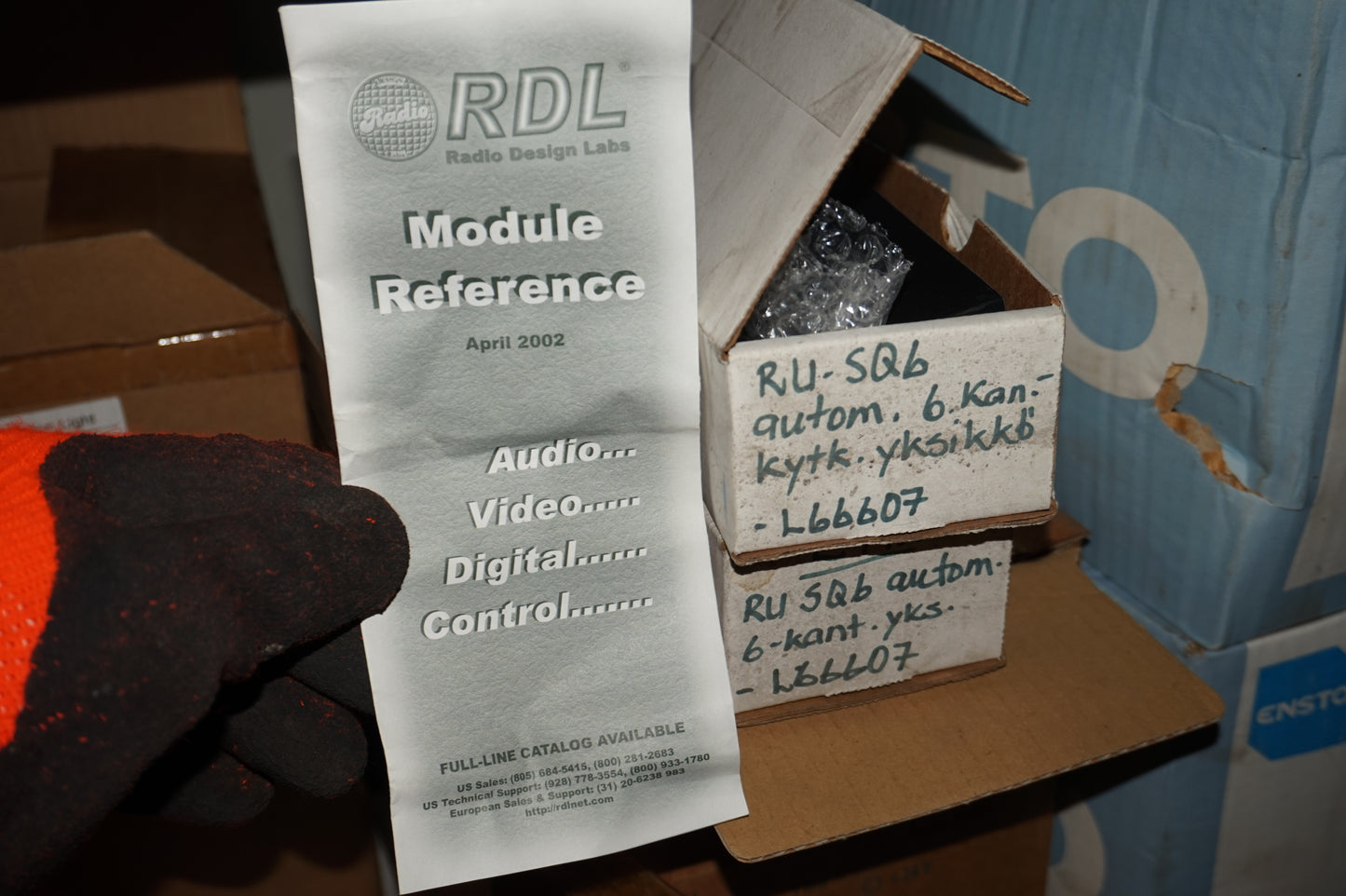

Rdl RU-SQ6 Sequencing Controller

Part number: RU-SQ6 Sequencing Controller for installations requiring sequential power-up and power-down functions. This module provides six sequential steps to prevent audio system thumps and manage electrical load distribution.

Full model name: Radio Design Labs RU-SQ6 Sequencing Controller

Application: Audio-visual installations, sound system power management, and sequential event control.

Technical Specifications:
• Output Channels: 6
• Output Types: Open collector (50 mA) and SPST dry contact closure per channel
• Timing Interval: 1 to 10 seconds (front-panel adjustable)
• Maximum Switching Power: 60 W, 125 VA
• Maximum Switching Voltage: 220 Vdc, 250 Vac
• Maximum Switching Current: 2 A
• Power Requirement: 24 to 33 Vdc @ 75 mA
• Indicators: Front-panel LEDs for channel status and timing
