Mono CMM243 Progressive Cavity Pump

MONOCM243/H13F

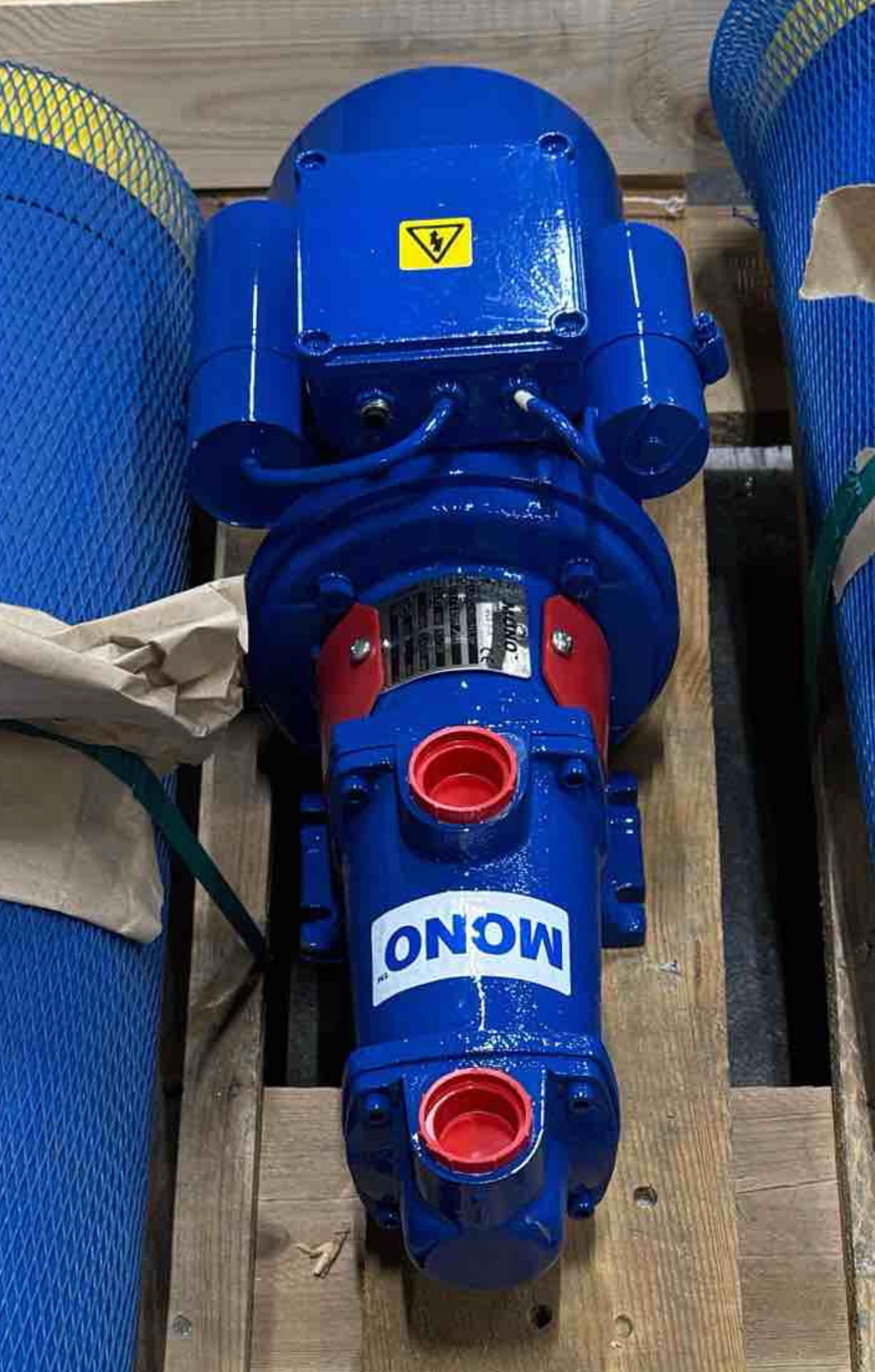

A compact, self-priming progressive cavity pump from the Mono M-Range, model CMM243. It operates on the principle of a helical rotor turning within a resilient stator, creating a non-pulsing flow. This model is typically equipped with a 0.37 kW, 110V single-phase motor, delivering a flow rate of up to 1590 L/h (26.5 L/min) and pressures up to 3.45 bar. It features a cast iron housing and can achieve suction lifts up to 8 meters. The "/H13F" suffix likely denotes a special configuration.

This pump is designed for domestic and light industrial applications. Its ability to handle viscous liquids and random solids makes it suitable for cellar drainage, septic tank emptying, water sampling from wells, and transferring fluids like diesel, water-based inks, and vegetable oils. The smooth, quiet pumping action is also beneficial for domestic installations.

Available for immediate delivery from The Netherlands.
