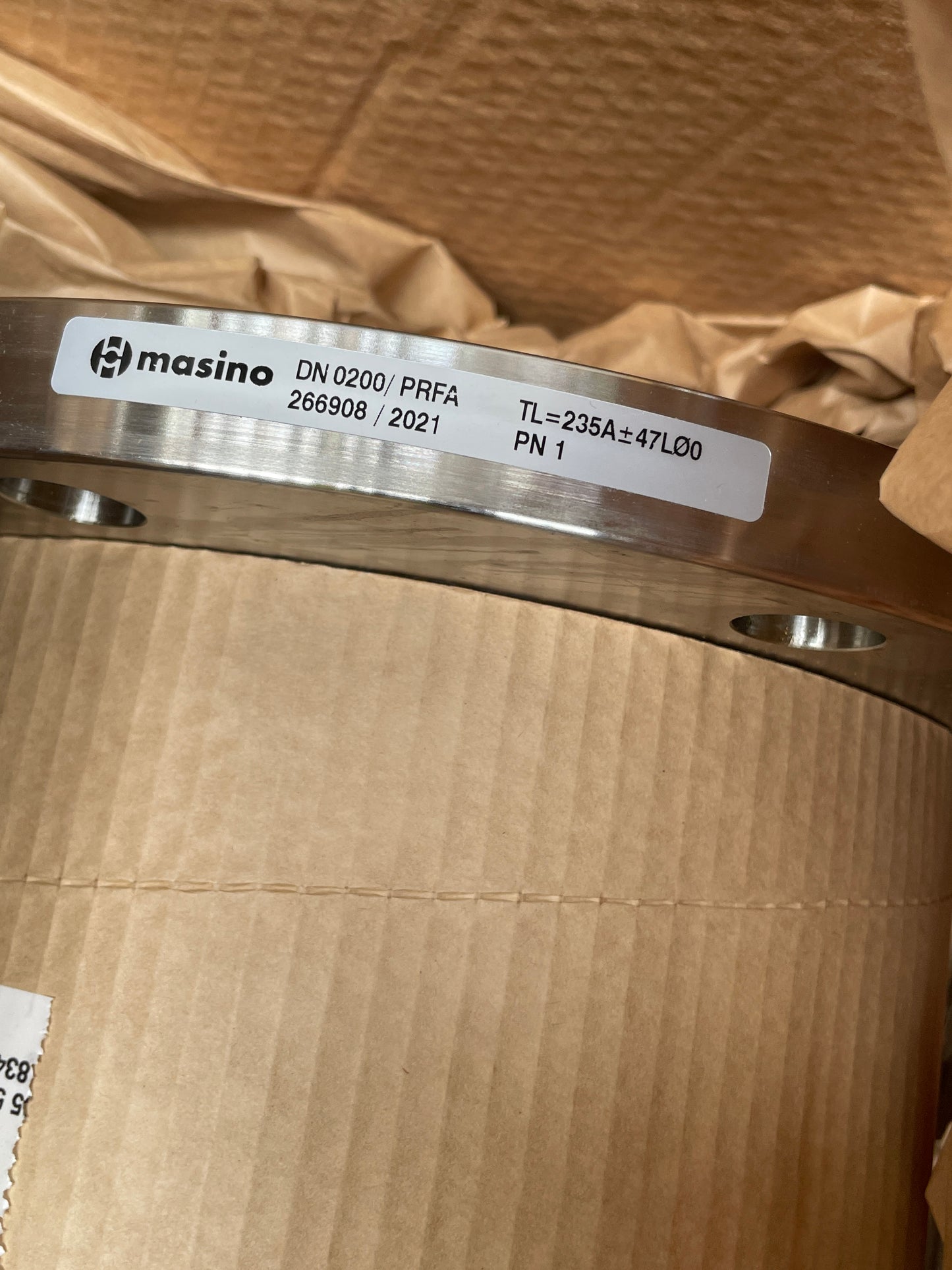

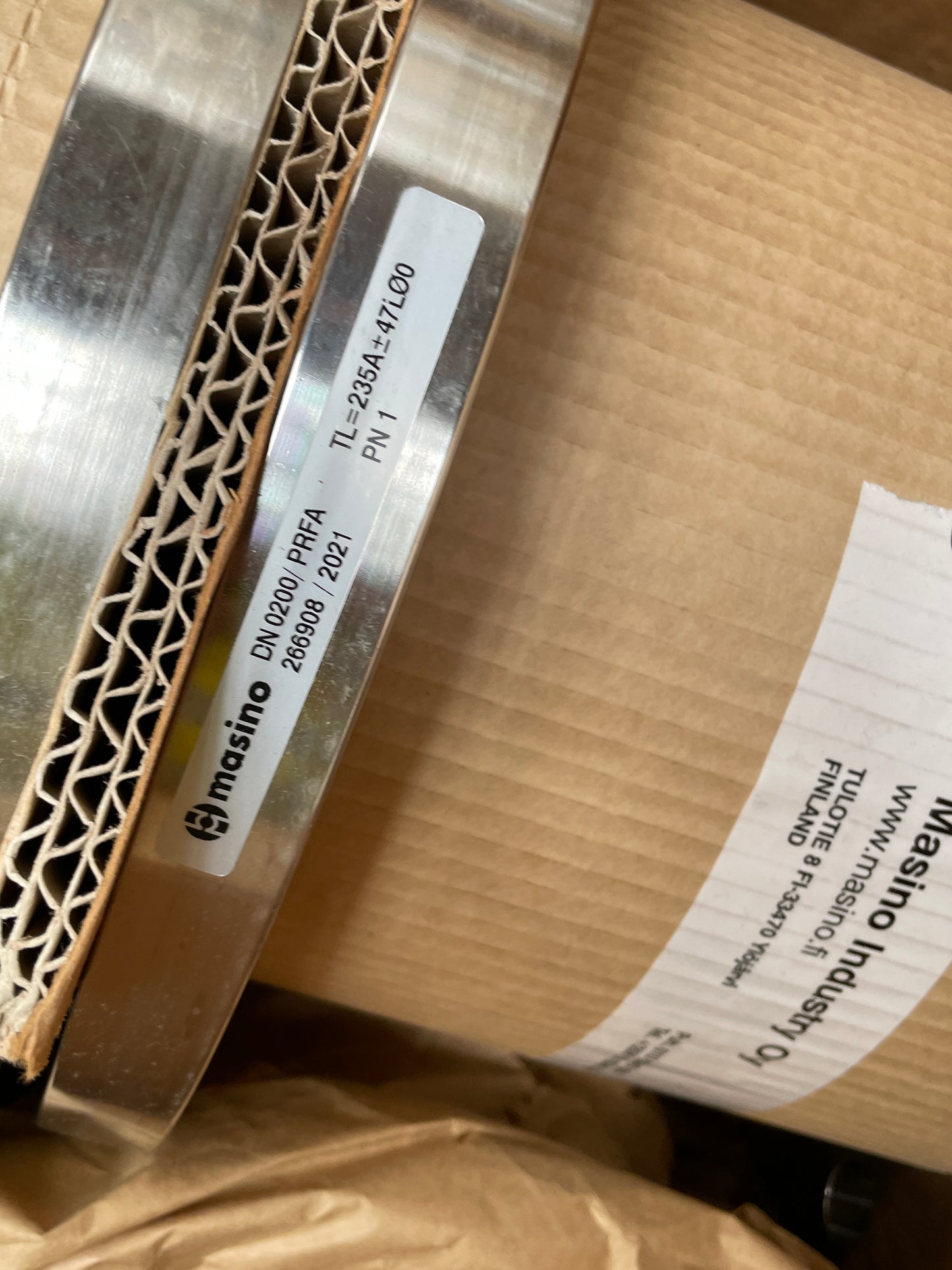

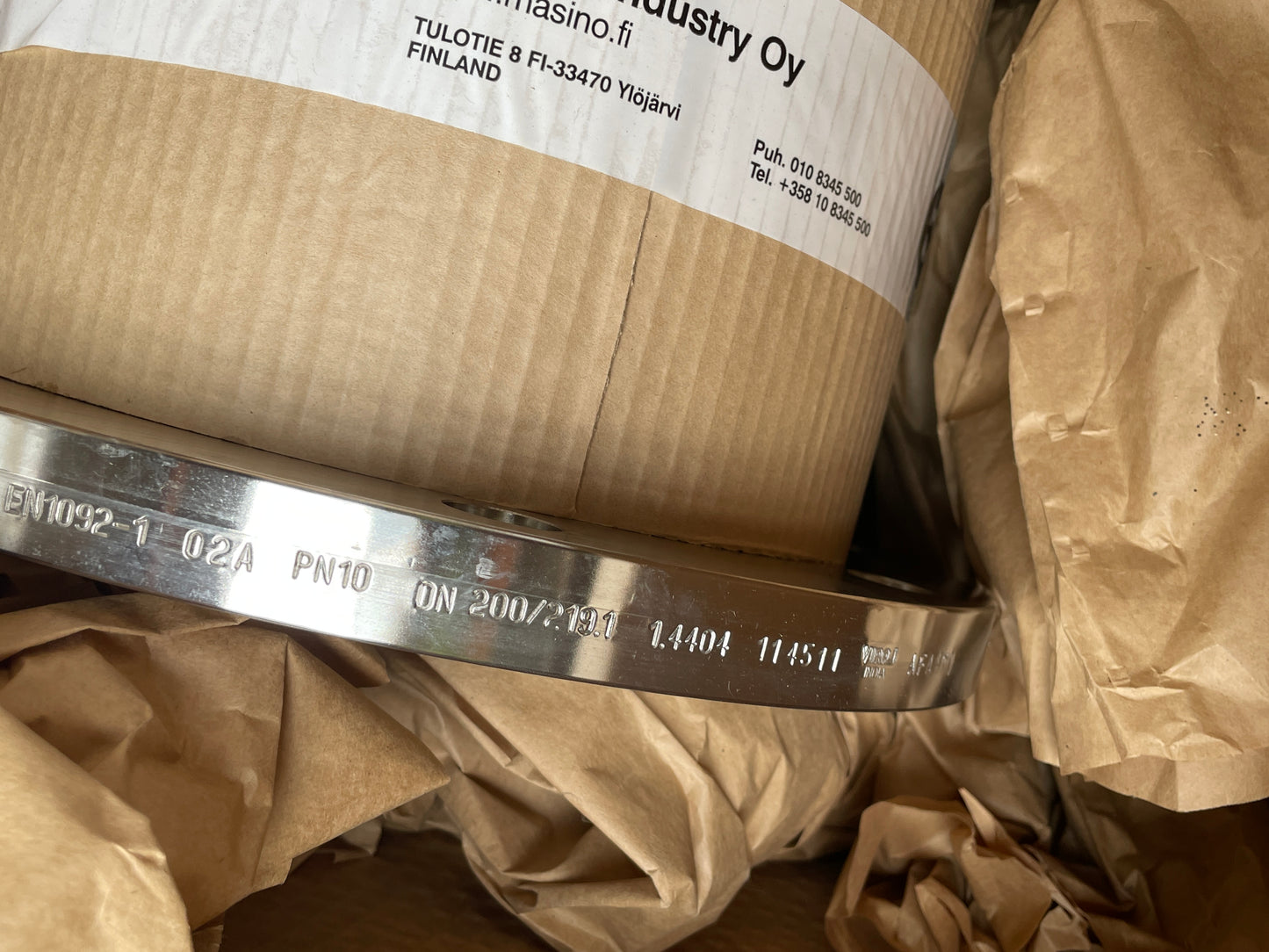

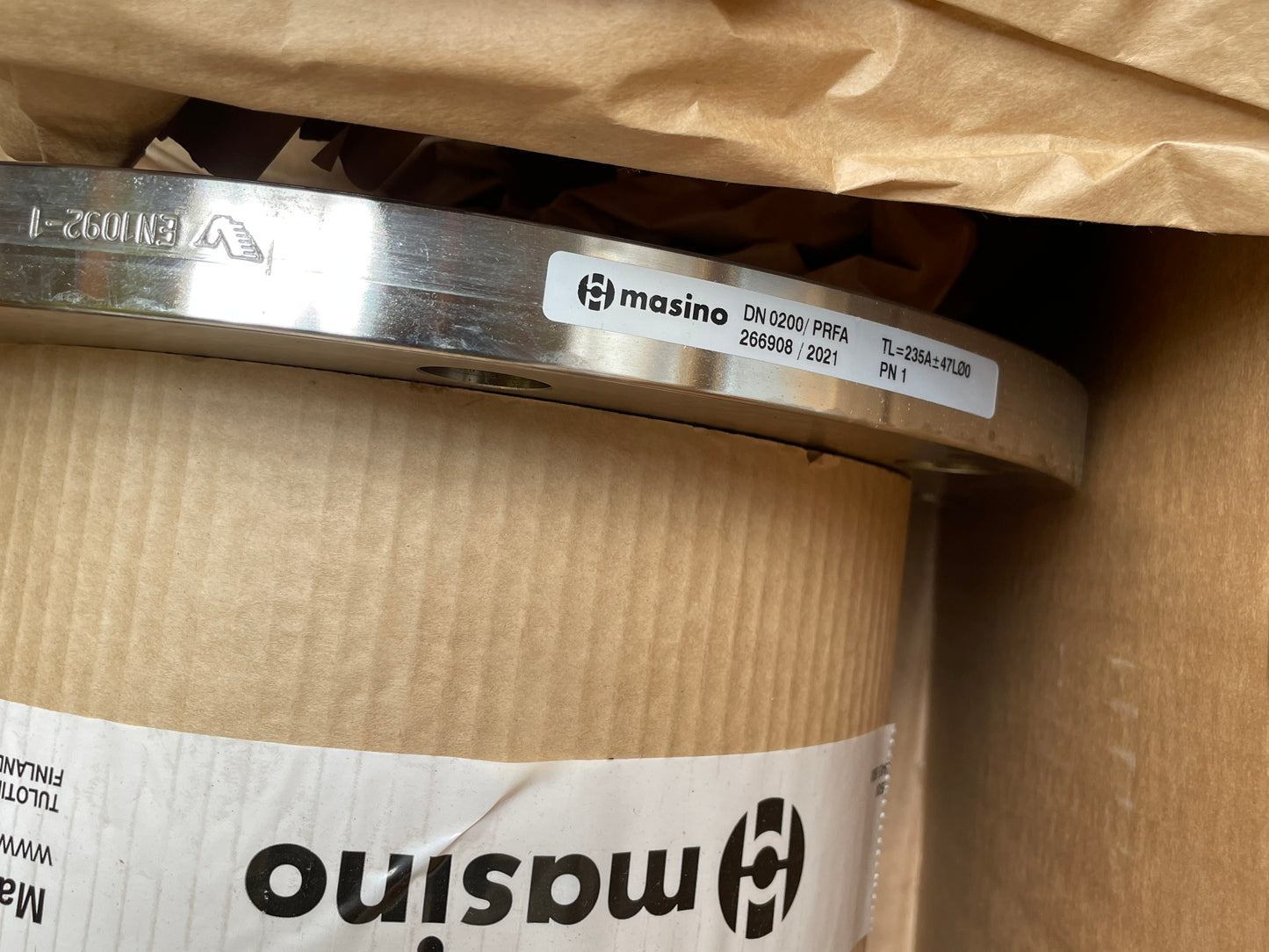

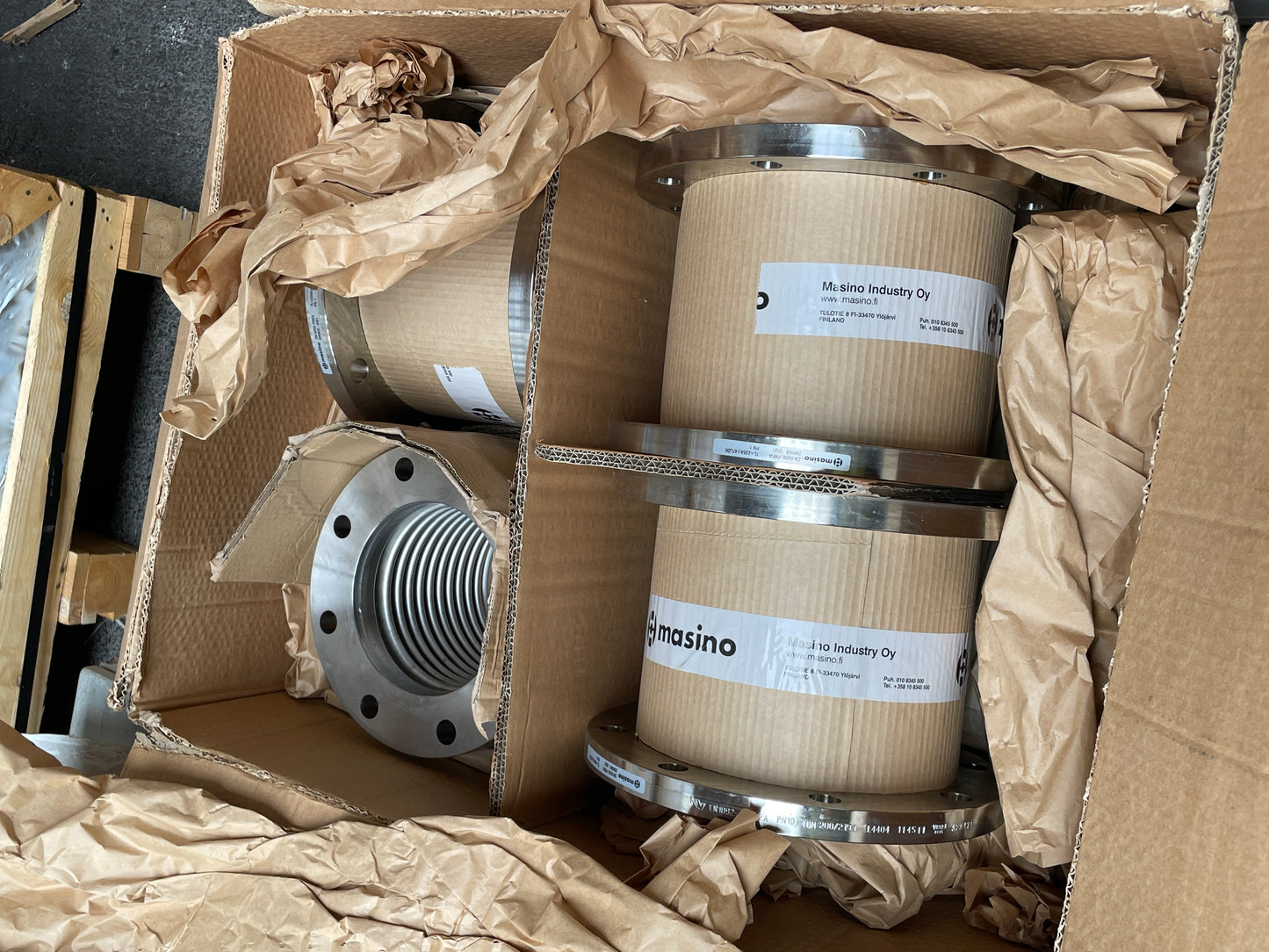

Masino DN 0200/PRFA 266908/20221 Loose Flange
Technical Specifications
Manufacturer:Masino
Part Number:DN 0200/PRFA 266908/20221
Condition:
Used
Product Details & Description
Part number: DN 0200/PRFA 266908/20221. This component is a loose flange designed for industrial piping systems, manufactured from 1.4404 (316L) stainless steel for high corrosion resistance.
Full model name: Masino DN 0200/PRFA 266908/20221 Loose Flange Type 02A
Application: Used in chemical processing, water treatment, and industrial fluid handling systems requiring EN 1092-1 compliant connections.
Technical Specifications:
• Nominal Diameter: DN 200
• Pressure Rating: PN 10
• Material: 1.4404 (AISI 316L) Stainless Steel
• Standard: EN 1092-1 Type 02A
• Pipe Diameter Compatibility: 219.1 mm
• Bolt Holes: 8 holes
• Bolt Hole Diameter: 22 mm
• Pitch Circle: 295 mm
• Flange Outer Diameter: 340 mm
Technical Documentation:
Verify Technical Documentation via Google
Full model name: Masino DN 0200/PRFA 266908/20221 Loose Flange Type 02A
Application: Used in chemical processing, water treatment, and industrial fluid handling systems requiring EN 1092-1 compliant connections.
Technical Specifications:
• Nominal Diameter: DN 200
• Pressure Rating: PN 10
• Material: 1.4404 (AISI 316L) Stainless Steel
• Standard: EN 1092-1 Type 02A
• Pipe Diameter Compatibility: 219.1 mm
• Bolt Holes: 8 holes
• Bolt Hole Diameter: 22 mm
• Pitch Circle: 295 mm
• Flange Outer Diameter: 340 mm
Technical Documentation:
Verify Technical Documentation via Google
Shipping & Logistics
Ships From:Germany
Ships To:Worldwide, excluding sanctioned regions.
Availability:
Ready for immediate worldwide delivery.
