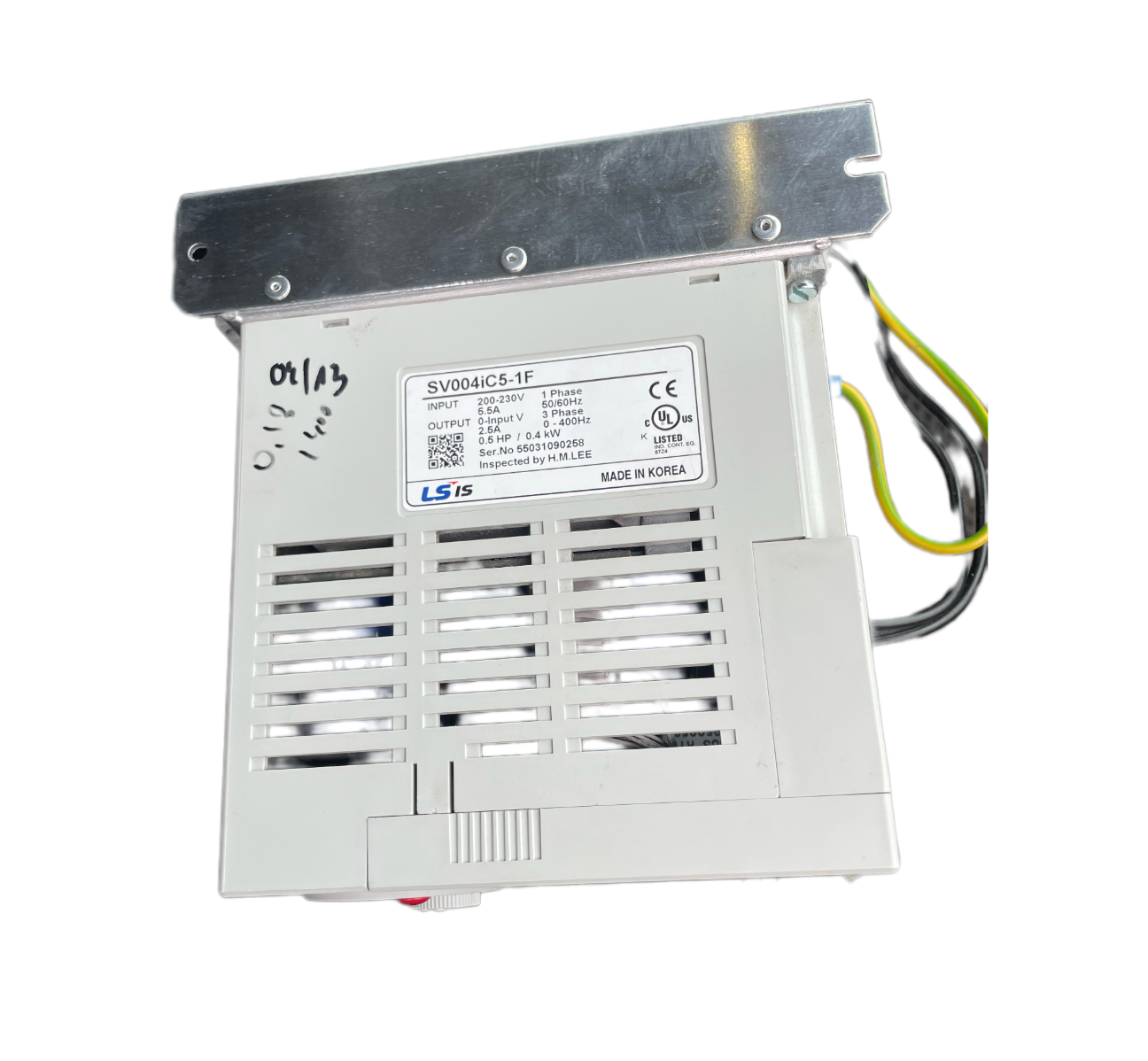

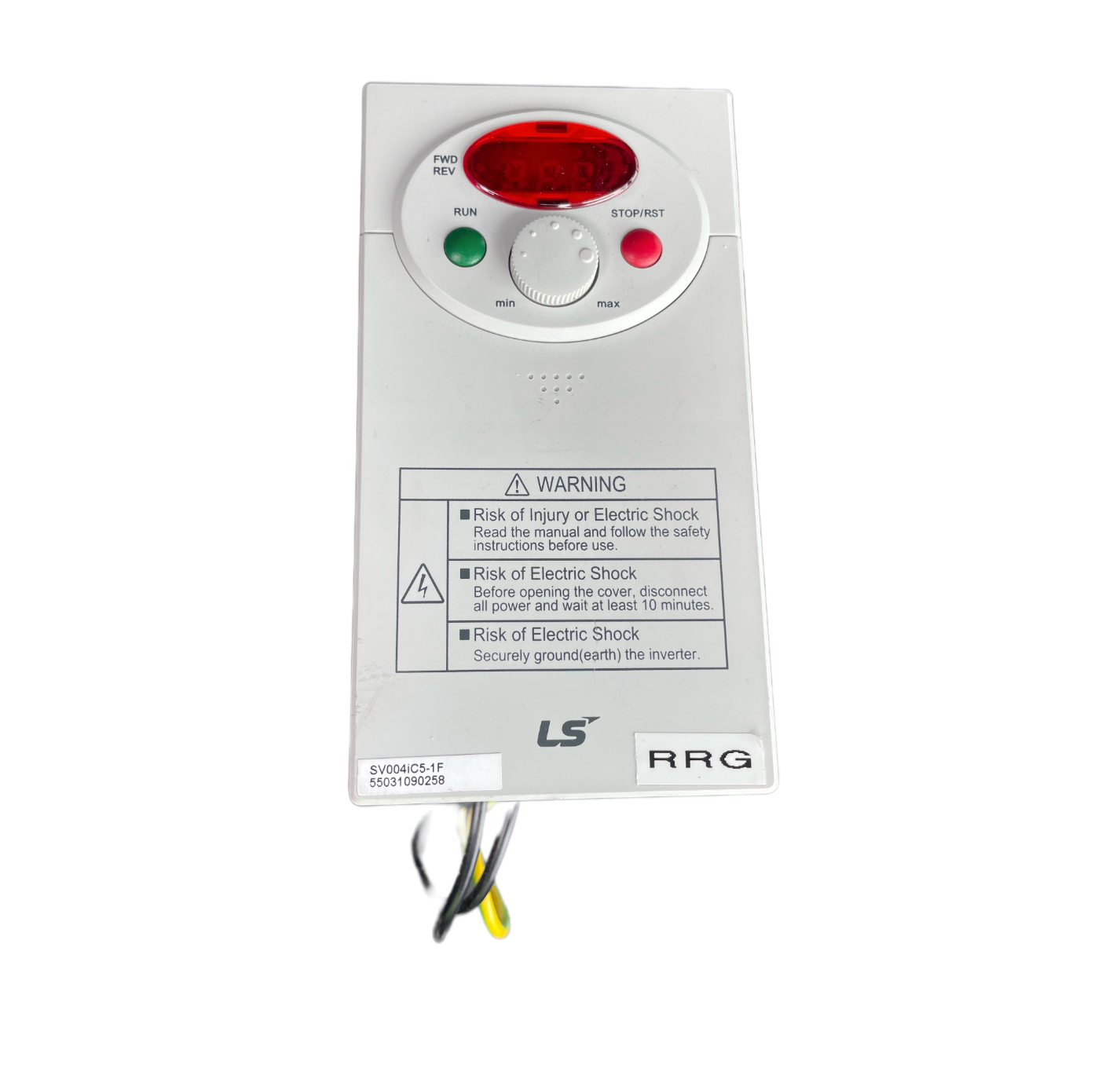

LS Electric Variable Frequency Drive SV004iC5-1F

Part number: SV004iC5-1F S. The LS Electric SV004iC5-1F is a 0.4 kW (0.5 HP) micro variable frequency drive designed for single-phase 200-230V AC input. It features sensorless vector control providing 150% torque at 0.5 Hz. The unit includes a built-in Class A EMC filter and an integrated potentiometer for local control. It is rated for 2.5 A output current and supports a frequency range of 0.1 to 400 Hz. The IP20 rated housing measures 79 x 143 x 143 mm and provides comprehensive protection including overload and short circuit detection.
