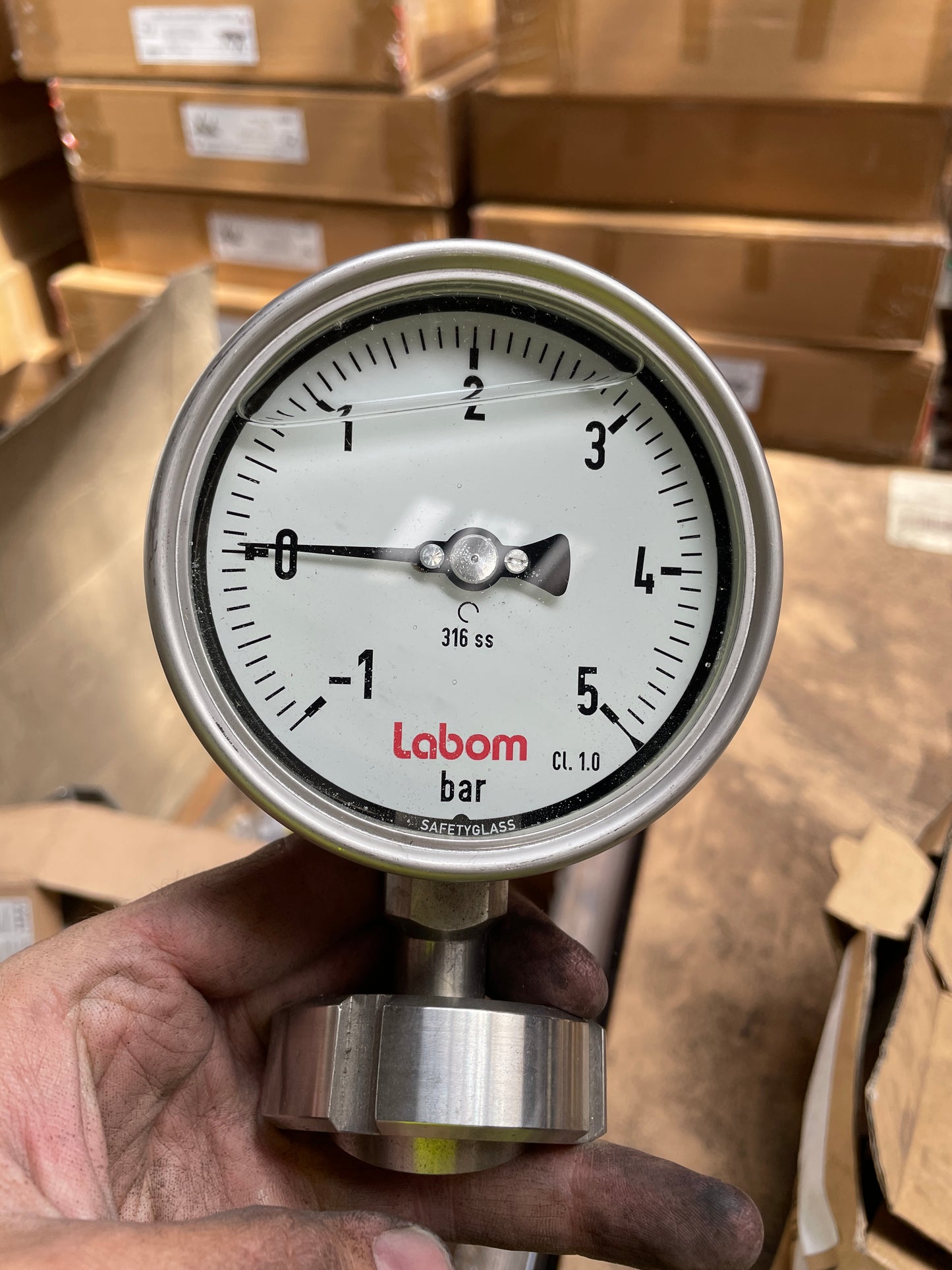

Labom MH5220 ECO Bourdon Tube Pressure Gauge
Technical Specifications
Manufacturer:Labom
Part Number:MH5220 ECO
Condition:
Used
Product Details & Description
Part number: MH5220 ECO. This Bourdon tube pressure gauge is designed for measuring gaseous and liquid media in industrial applications requiring high-quality stainless steel construction.Full model name: Labom MH5220 ECO Bourdon Tube Pressure Gauge NS 100
Application: Food industry, pharmaceutical industry, biotechnology, and general chemical processing.
Technical Specifications:
• Nominal Size: NS 100
• Measuring Range: -1 to 5 bar
• Overpressure Limit: 6.5 bar
• System Filling: Synthetic oil FD1 (FDA compliant)
• Case Material: Stainless steel AISI 304
• Wetted Parts: Stainless steel AISI 316L
• Accuracy Class: 1.0 per EN 837-1
• Degree of Protection: IP 65
• Process Connection: Bottom connection
Technical Documentation:
Verify Technical Documentation via Google
Application: Food industry, pharmaceutical industry, biotechnology, and general chemical processing.
Technical Specifications:
• Nominal Size: NS 100
• Measuring Range: -1 to 5 bar
• Overpressure Limit: 6.5 bar
• System Filling: Synthetic oil FD1 (FDA compliant)
• Case Material: Stainless steel AISI 304
• Wetted Parts: Stainless steel AISI 316L
• Accuracy Class: 1.0 per EN 837-1
• Degree of Protection: IP 65
• Process Connection: Bottom connection
Technical Documentation:
Verify Technical Documentation via Google
Shipping & Logistics
Ships From:Germany
Ships To:Worldwide, excluding sanctioned regions.
Availability:
Ready for immediate worldwide delivery.
