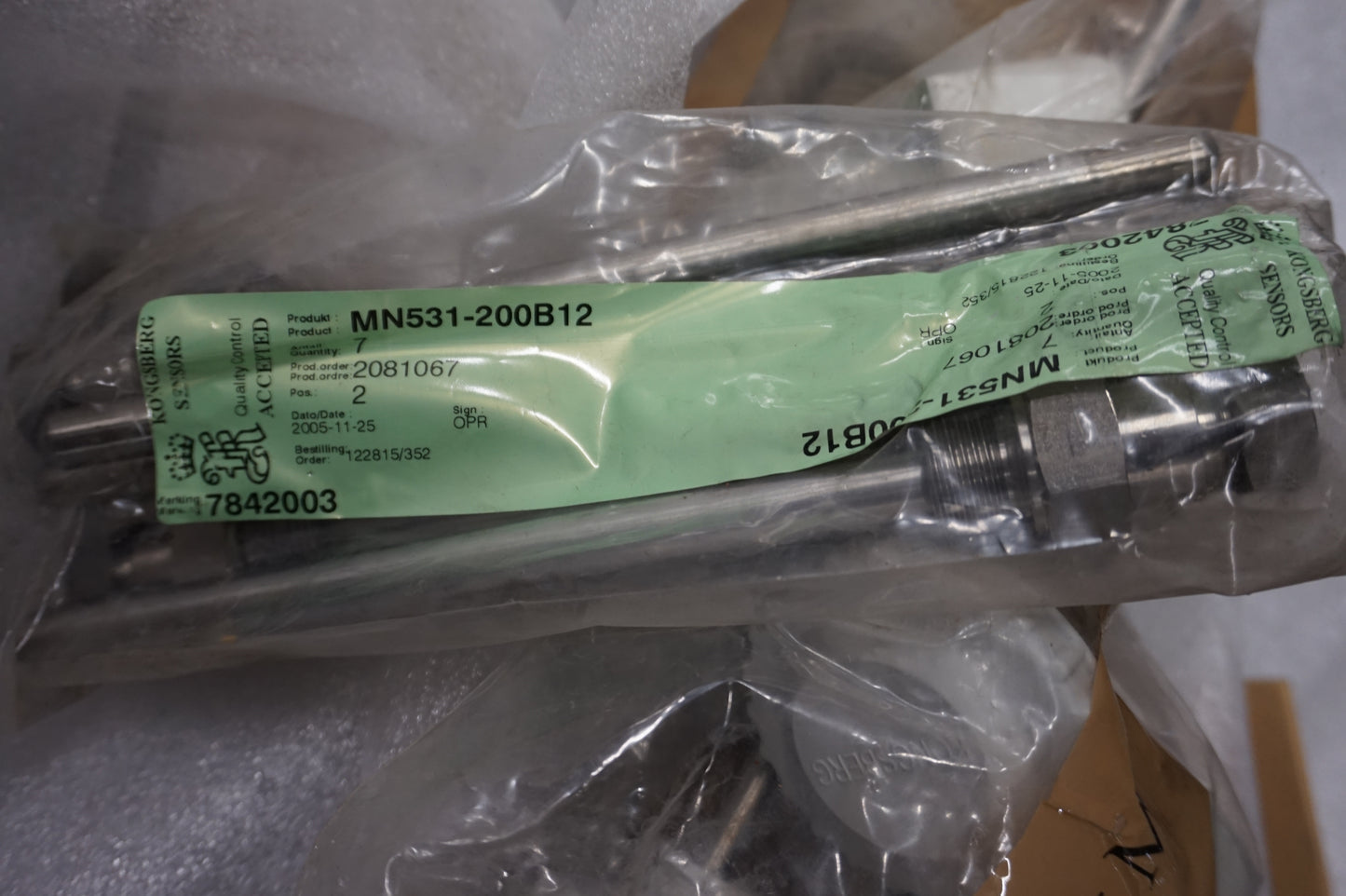

Kongsberg MN531-200B12 Protection Well

Part number: MN531-200B12. This component is a heavy-duty protection well designed for housing temperature sensors in demanding marine and industrial environments. It provides a robust barrier against high pressure and corrosive media while ensuring accurate thermal transfer to the internal sensing element.

Full model name: MN531-200B12 Protection Well

Application: Marine diesel engines, exhaust gas systems, cargo instrumentation, and industrial lubrication systems.

Technical Specifications:
• Material: Acid resistant steel (AISI 316)
• Insertion Length (L): 200 mm
• Thread Type: B12 (G 1/2 inch ISO 228)
• Maximum Pressure: 100 bar at 20°C
• Compatibility: Designed for use with Kongsberg resistance temperature sensors

Technical Documentation:
