Kongsberg K-Chief Control Room Panel (CRP) 330952

Part Number: 330952

Operator Panel for K-Chief Systems

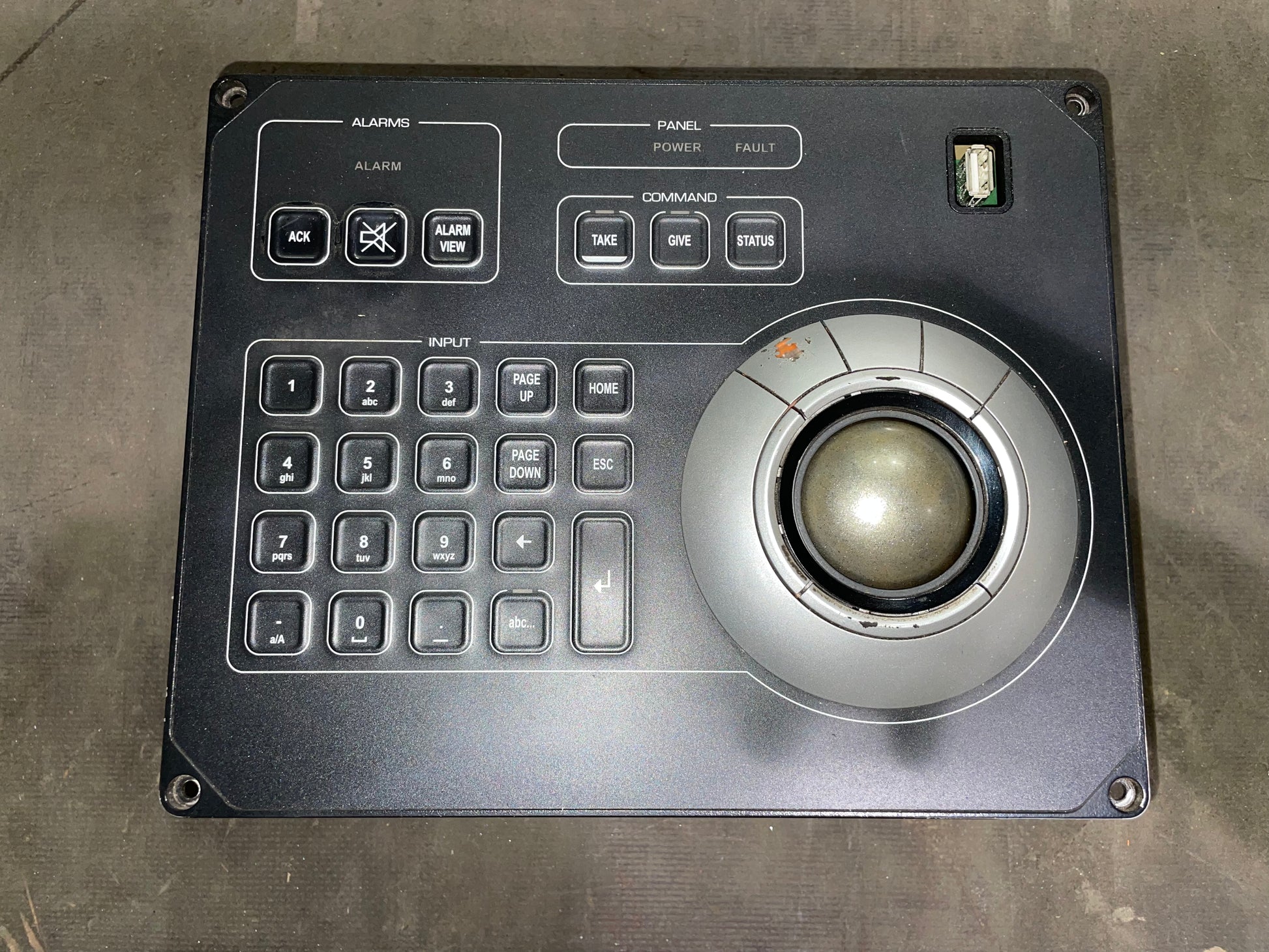

Kongsberg Control Room Panel (CRP), designed for the Kongsberg K-Chief marine automation system. It provides a robust and user-friendly interface for monitoring and controlling vessel machinery from the Engine Control Room. The panel is ergonomically designed with functional areas for alarm handling, system commands, and data input. Built to withstand harsh marine environments, this panel is type-approved by major classification societies.

Technical Specifications
Interface: Mechanical trackball, dedicated alarm and command buttons, alphanumeric keypad.
Power: 18 to 32 VDC.
Enclosure: IP22 rated aluminum housing.
Connectivity: USB2 HID interface, protected front USB port.
Approvals: DNV, LRS, BV, GL, ABS, and others.

Applications & Compatibility
System Compatibility: Kongsberg K-Chief 600
Direct replacement of a faulty CRP in an Engine Control Room.
Ensuring reliable operator control of pumps, valves, and other machinery.

The items are used but in fully working condition. If the item does not match the description, you have 14 days to return it after receiving it.

Available for immediate delivery from Estonia.
