Johnson Controls / Emerson E1071 HMI Control Panel X11-15298 (156097)

Part Number: 156097

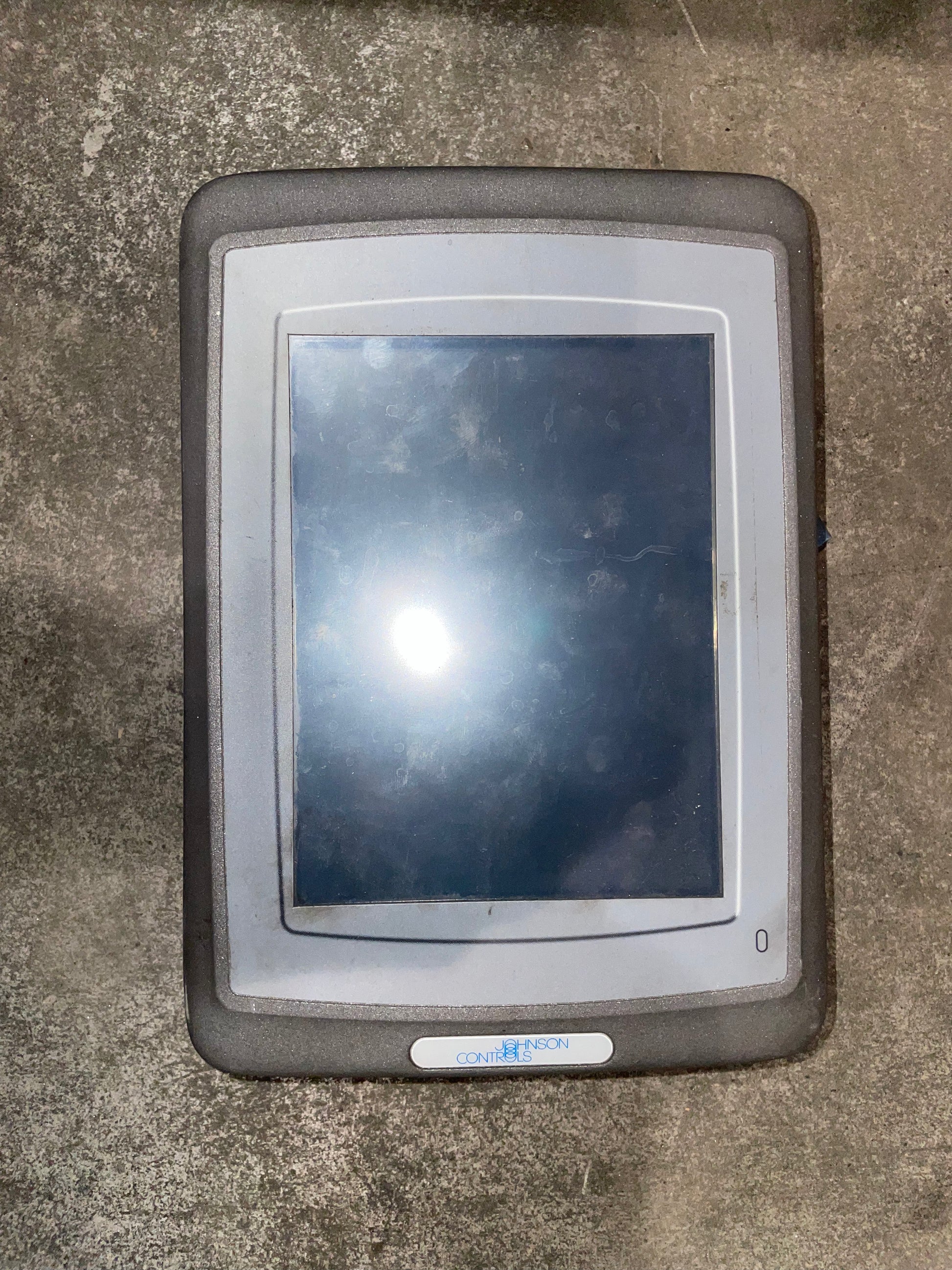

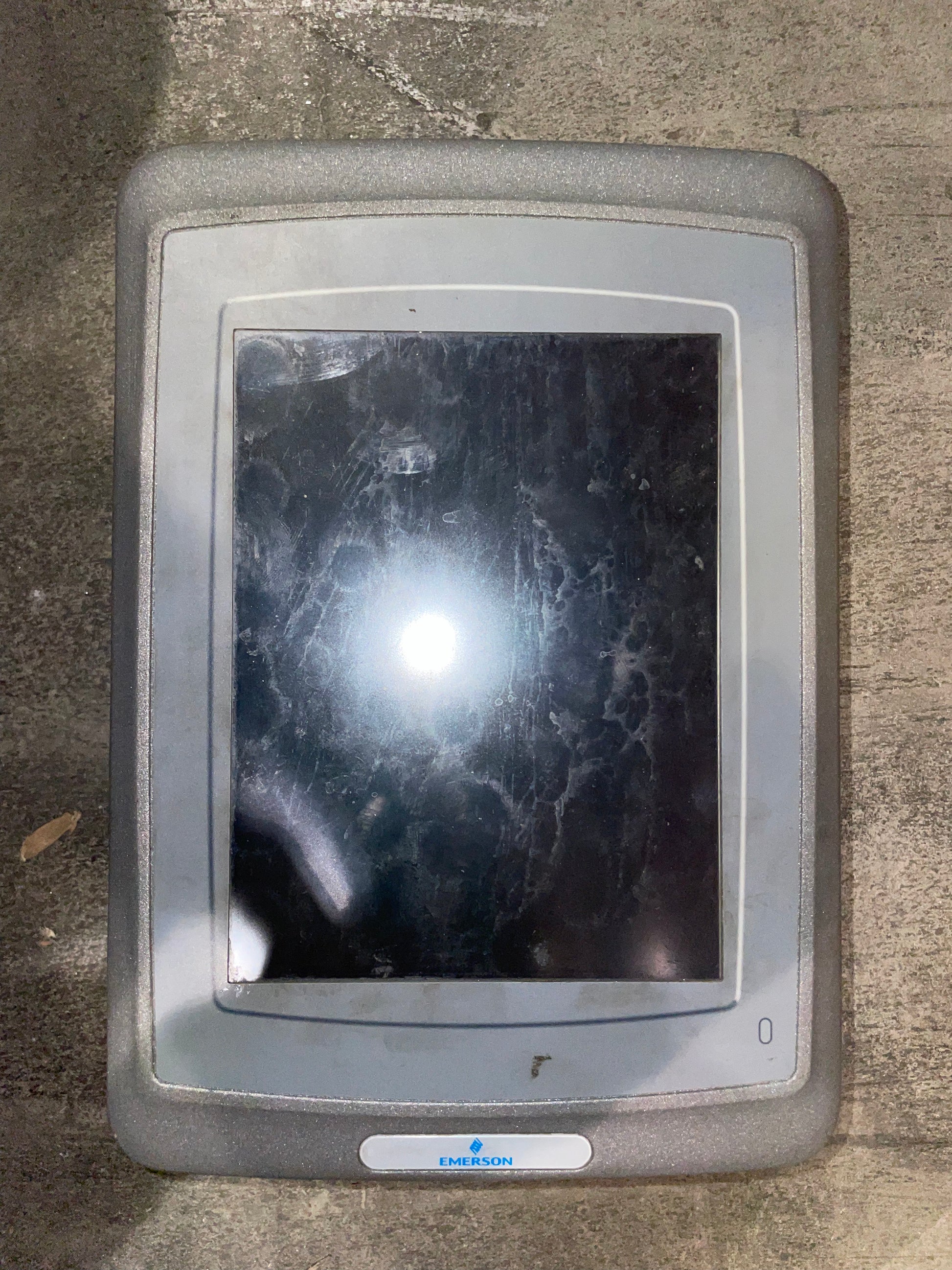

Johnson Controls / Emerson HMI Control Panel, model E1071. Serves as an operator interface for a wide range of building automation and industrial control applications. Featuring a 6.5-inch color touch screen and running on the Windows CE.NET 4.2 Pro operating system, this panel provides a clear and intuitive interface for system monitoring and control. This unit comes pre-loaded with the Dt101 G2 program.

Technical Specifications
Model: JCI 6.5” E1071 Panel (X11-15298)
Display: 6.5-inch TFT touch screen, 640 x 480 VGA resolution.
Operating System: Windows CE.NET 4.2 Pro.
Power Supply: 24 VDC.

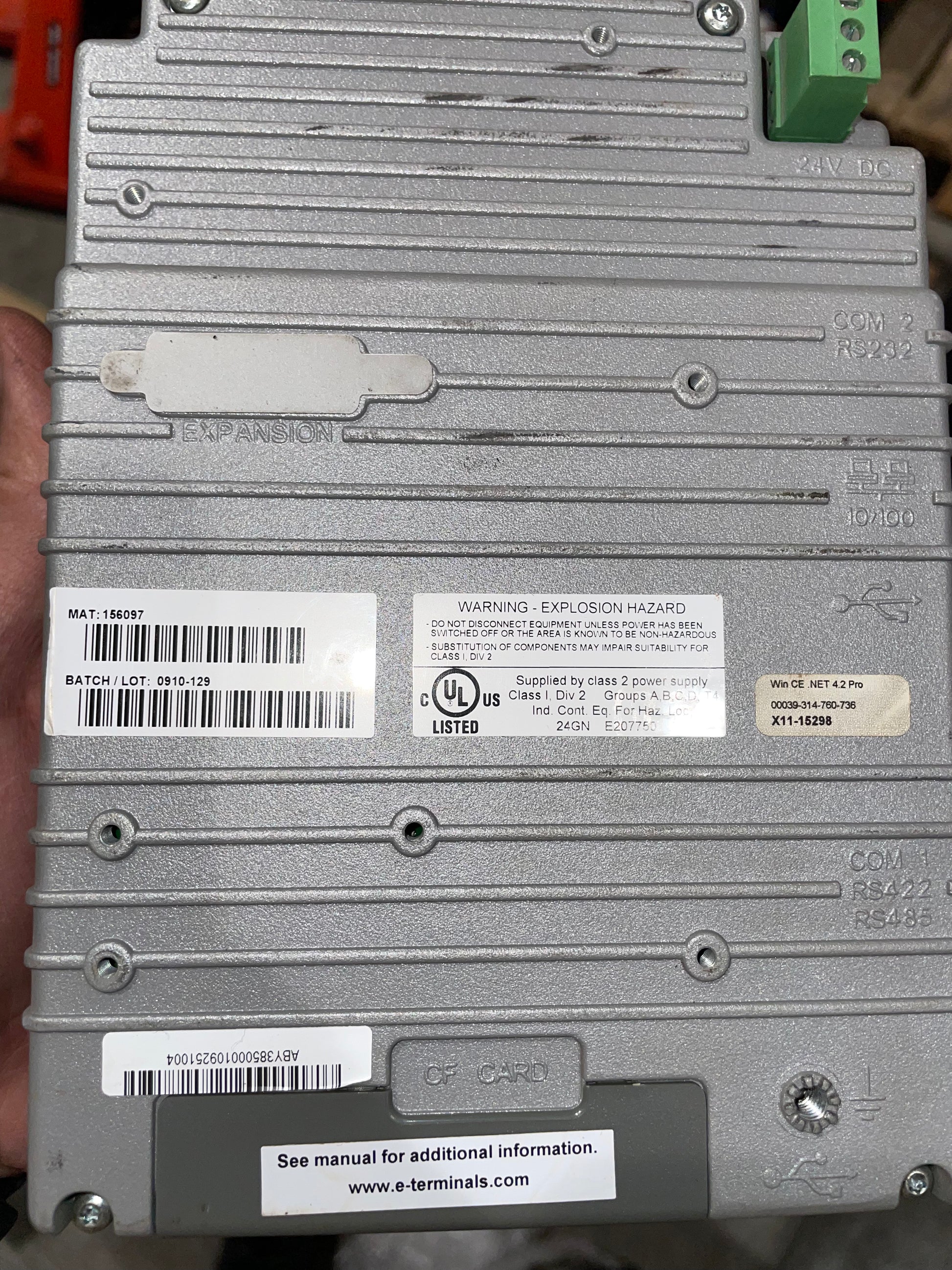

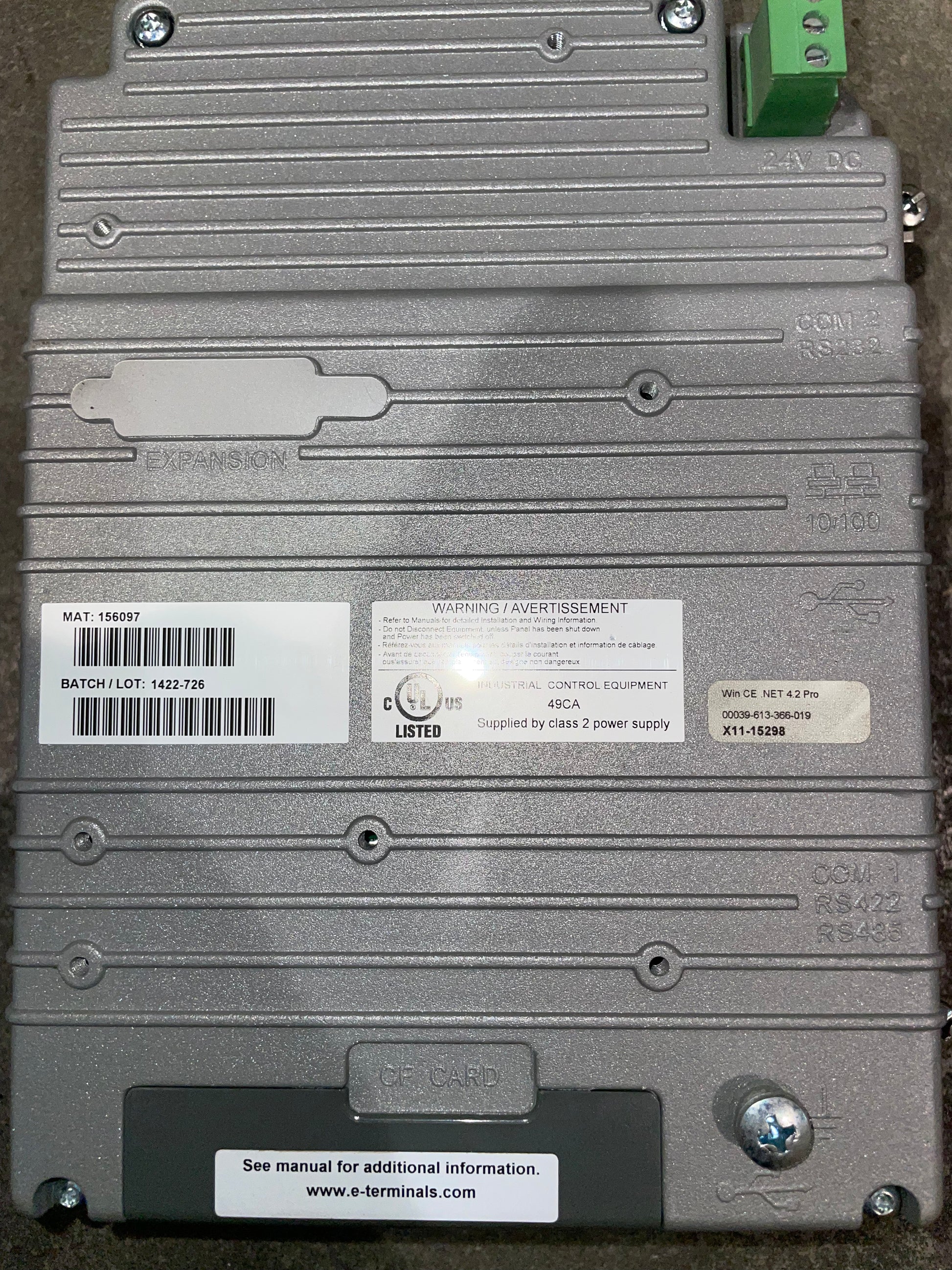

Interfaces: RS232, RS422/RS485, Ethernet, USB.
Program: Includes Dt101 G2 (16GB).

Applications & Compatibility
Building Management Systems (BMS) and HVAC control.
Industrial automation and process monitoring.
Replacing a damaged or outdated E1071 operator panel.

The items are used but in fully working condition. If the item does not match the description, you have 14 days to return it after receiving it.

Available for immediate delivery from Estonia.
