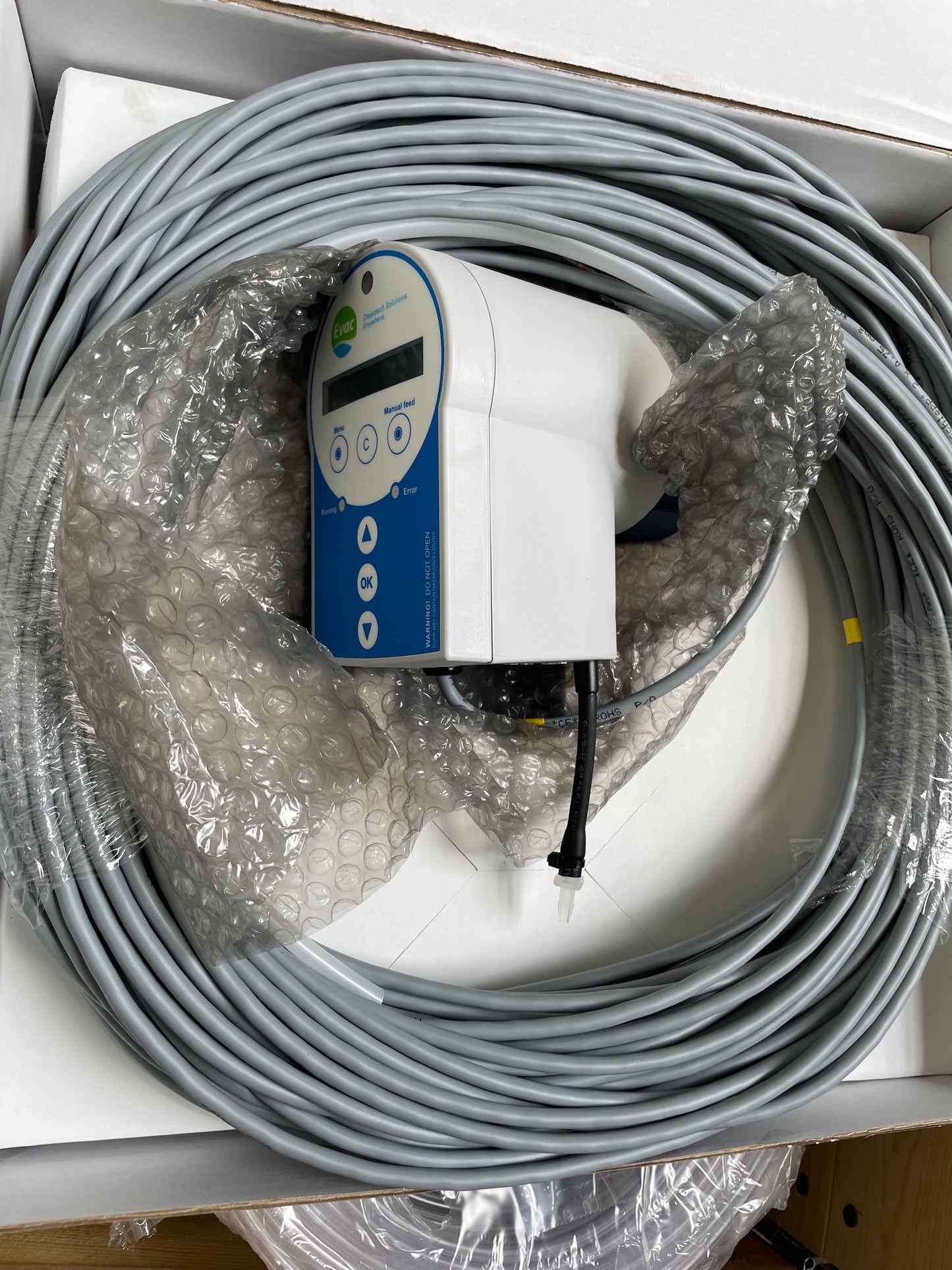

Evac N01463175 Doser Dosing Pump

Part number: N01463175 This dosing pump is a compact, microprocessor-controlled component designed for precise chemical delivery in wastewater and vacuum drainage systems. It is specifically engineered for time-based feeding of acids, alkali, and bacterial solutions to prevent blockages and maintain pipeline integrity.

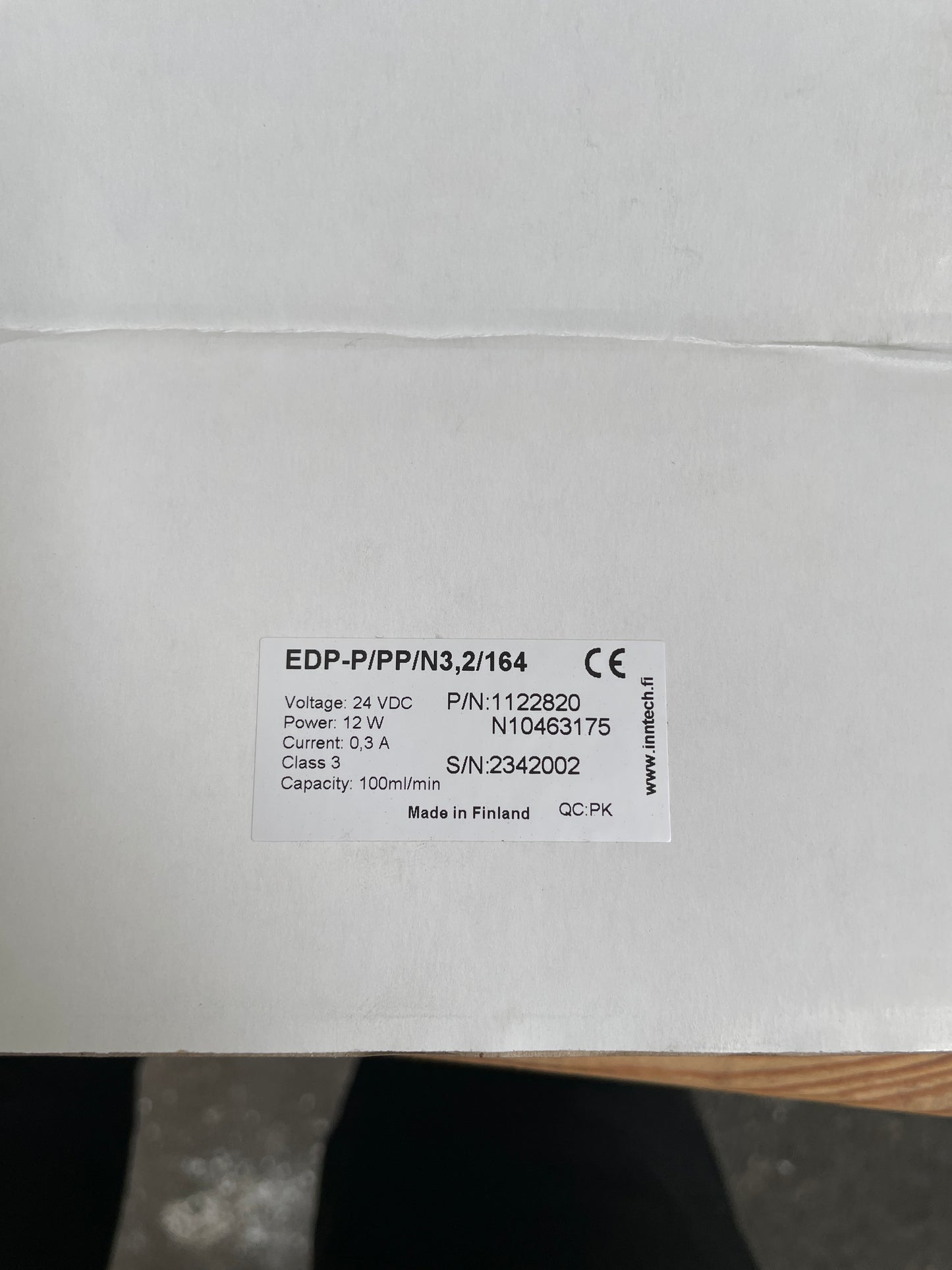

Full model name: Evac / Inntech EDP-P/N3,2/164 (Inntech P/N 1122820)

Application: Marine and building vacuum drainage systems, wastewater treatment, and chemical dosing for pipeline maintenance.

Technical Specifications:
• Voltage: 24 VDC
• Power Consumption: 12 W
• Current: 0.3 A
• Capacity: 100 ml/min
• Protection Class: Class 3
• Control: Microprocessor-controlled with real-time clock for accurate timing
• Mounting: DIN rail compatible
• Origin: Made in Finland
